The equipment can be applied to the use of intelligent unmanned terminals such as UAV drones, unmanned ships, unmanned boats and robots.
Product Introduction:

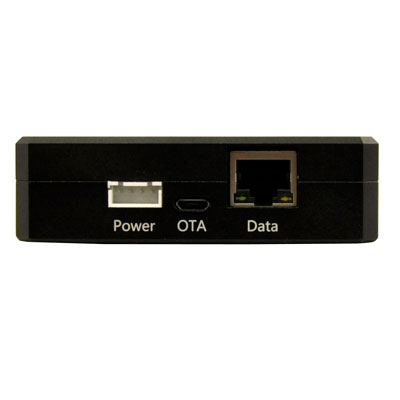

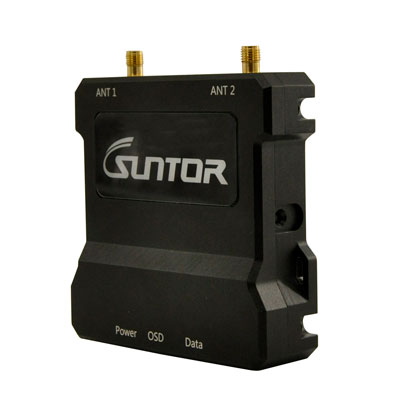

SUNTOR module C05NMT is the latest miniaturized and functional wireless transmission equipment. It adopts TDD wireless transmission technology and dual antenna diversity design to make the signal transmission quality more stable. The device can support bidirectional transmission of network data and TTL serial data at the same time. The data link can be adjusted according to different ratios, and the uplink and downlink data link transmission rates can be adjusted proportionally. In addition, the module has three frequency of 2.4GHz/1.4GHz/800MHz for option.
Product Features:
TDD wireless transmission technology;
Optional frequency 800MHz、1.4GHz、2.4GHz;
Duplex Transmitting Rate is 3-8Mbps;
Low transmission delay, single hop unidirectional ≤7ms;
Support Point to Point and Point to Multi-Point. 3-5 TX to 1RX, or 1TX to 3-5 RX;
Dual antenna diversity design to make the signal transmission quality more stable, and high receiving sensitivity;
Long range more than 5km;
Lower RF power and power consumption;
Support IP video output and bidirectional TTL serial data(not available, will be opened in future);
The uplink and downlink data link transmission rates can be adjusted proportionally(2D3U、3D2U、4D1U);
Optional Bandwidth(3MHz/5MHz/10MHz/20MHz).
Application:
Hardware | |
Frequency | 2401.5-2481.5 MHz1427.9MHz806-826MHz |
RF Power | 25dBm±2 |
Receiving sensitivity | 2.4G(1Mbps):20MHz-99dBm 10MHz-102dBm 5MHz-104dBm 3MHz-106dBm 1.4G(1Mbps):10MHz-103dBm 5MHz-106dBm 3MHz-108dBm 800M(1Mbps):10MHz-103dBm 5MHz-106dBm 3MHz-108dBm |

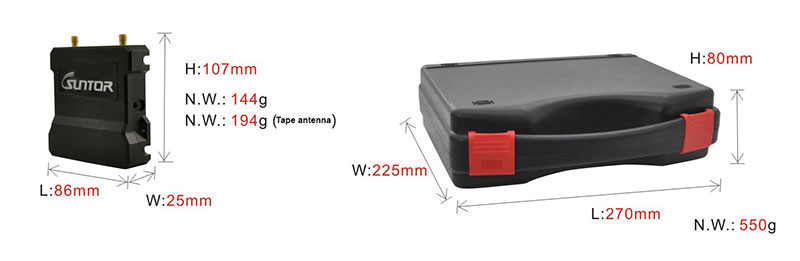

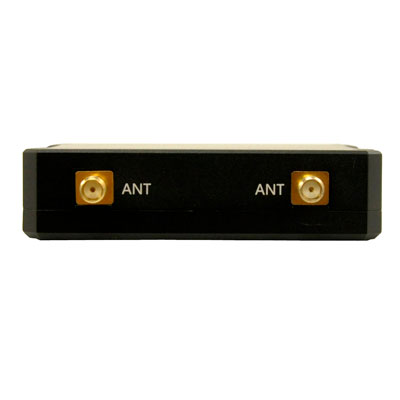

Double Antenna | SMA Type |
Serial Port | TTL*1Baud rate 115200 |
Consumption | 5V power supply the consumption maximum in 850mA±15% |
Power | 9~13V optional |
Working temperature | -25℃~60℃ |
System | |
Center point | Any node in the network can be configured as a central node |
Rate | The central node simultaneously receives/sends the total rate of data sharing at the current bandwidth. |
Node Qty | Ethernet Nodes N≥2 maximum 16 access point |
Communications | Any two slave nodes must be forwarded through the central node, Any node supports unicast and broadcast modes |
Rate | All slave nodes and the central node share the working bandwidth in one direction, the maximum downlink configuration (20M bandwidth, the rate reaches 30M), and the maximum uplink configuration (20M bandwidth, the rate reaches 26M). |
Automatic power regulation | Support access node adaptive adjustment of transmit power |
Software upgrade | OTA, Local and remote upgrade |
Wireless | |
Anti-interference | Frequency hopping, Support automatic frequency hopping in the range of frequency |
Retransmission | Select whether to retransmit according to different data carried |
Transmission mode | Single antenna transmission, single antenna receiving / single antenna transmitting, dual antenna receiving |
Data link | Master-slave data bidirectional communication, dynamically adjusting rate based on wireless data |
Access | PTP;PTMP |
Bandwidth | 2.4GHz：3MHz/5MHz/10MHz/20MHz 1.4GHz：3MHz/5MHz/10MHz 800MHz：3MHz/5MHz/10MHz |
Rate | Single node supports up to 30Mbps, adaptive average distribution system rate |
Encryption | Support user configuration layer 2 encryption to turn off And encryption (ZUC, SNOW3G, AES three encryption options are optional) |
Modulation | QPSK、16QAM、64QAM |
Latency | Air latency：Delay from node-central node transmission <10ms Start delay：entral node/slave node boot delay <15s Network Start：Time <1min |
