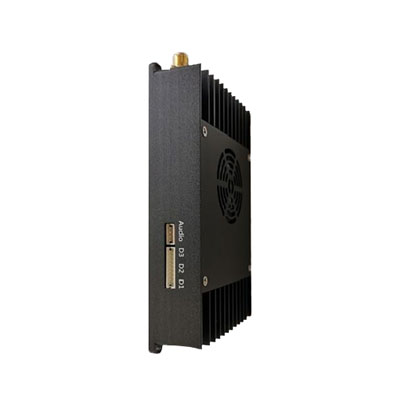

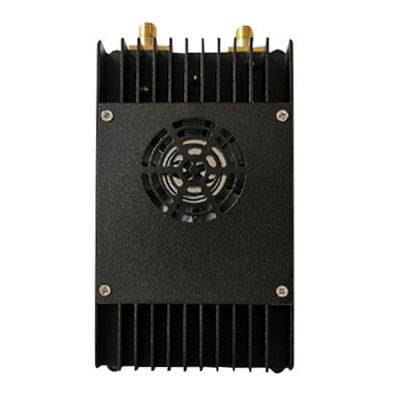

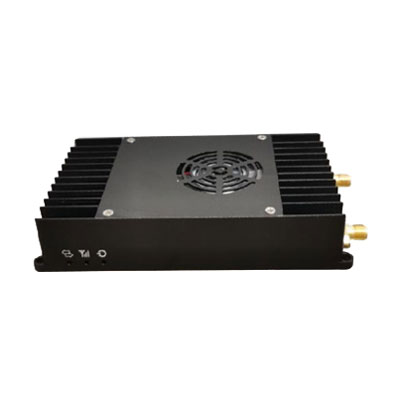

CD30NMT Wireless Link device realize long-distance two-way wireless video, audio, data transmission,The maximum air-to-ground transmission distance can reach 30-50km. The device provides multiple service interfaces, including 2 Ethernet ports, 3 serial ports, and audio input and output interfaces.
Product Introduction
Product Features
Based on OFDM technology, two-way broadband wireless link device.
Service interface: 2 Ethernet ports, 3 RS232 serial ports, audio input and output ports.

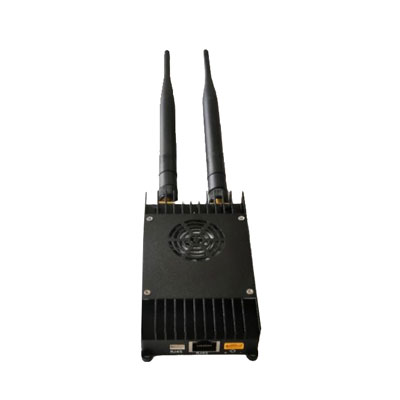

Dual antennas: SMA surface, ANT1 main antenna working in transceiver mode, ANT2 auxiliary antenna working in receive mode
Wireless working: 1428~1448MHz or 806~826MHz, Supports automatic frequency hopping in frequency bands
Wireless bandwidth: 3MHz, 5MHz, 10MHz, 20MHz, all nodes share working bandwidth, the maximum sharing rate of the system is 30Mbps.
Modulation mode: QPSK/QAM16/QAM64 automatic adaptation.
Networking mode: point-to-point, point-to-multi point star networking.
Max Wireless Transmit Power: 5W
The sensitivity of the node receive: 10MHz bandwidth-103
Supports AES128 encryption and decryption
Transmission distance: 30km
Device configuration and wireless working status can be viewed through the network port web UI or serial port.
5W type：DC24~25V,The average power consumption of the video transmitter is less than 22W, and the average power consumption of the video receiver is less than 16W.
Size: 103.4*61.4*22 mm(not include the surface that protrude from the hosing).
Weight: 142g
System Parameter | |
Wireless | |
Frequency Range | 1428～1448MHz |
Bandwidth | 3MHz / 5MHz / 10MHz |
Modulation | QPSK / 16QAM / 64QAM |
Receive Sensitivity | -108dBm@3MHz -106dBm@5MHz -103dBm@10MHz |
Data Rate | Max. 30Mbps Shared by All Nodes |
RF Power | 5W |
Access Mode | Point to Point/Point to Multi-Point |
System | |
Serial Port | 3 RS232 Ports with Priority Level |
Ethernet Port | 2 Ports with Internal Bridge mode |
Security | AES128 Encryption |
Power Supply | DC12～16V 10W (Receiver) 12W (Transmitter) |
Interface | |
RF Antenna | SMA × 2 |
Serial Port Interface | 9Pin ZH1.5mm (RS232 × 3) |
Ethernet Interface 1 | 4Pin ZH1.5mm × 1 |
Ethernet Interface 2 | RJ45 Connector × 1 |
Audio Interface | 4Pin ZH1.5mm × 1 |
Power Input | XT30PW Male × 1 |
Physical | |
Dimension | 104 × 62 × 22mm |
Weight | 142g Per Node |
Application
