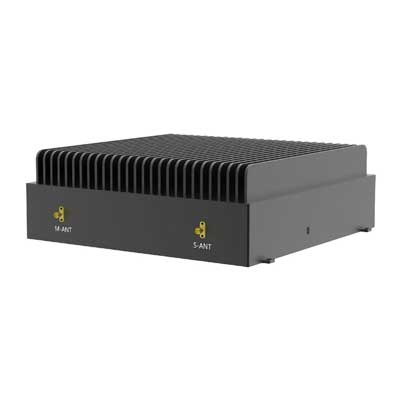

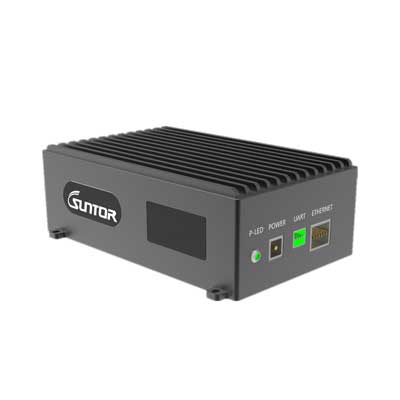

CD100NMT-V3 Drone Video Transmission Radio
Model: CD100NMT
The CD100NMT-V3 standard version device can realize long-distance two-way wireless video, audio, and data transmission. When used with the standard version of the sky terminal, the maximum air-to-ground transmission distance can reach more than 100km. The communication method can meet point-to-point two-way communication, and can also realize point-to-multipoint star networking communication.
Product Details
Product Introduction
Product Features
251 Grams Weight;
Point to Multi-Point Mode;
Dual Antenna MIMO Design;
Up to 24Mbps Data Rate;
1.4G / 2.4GHz Frequency Range Optional;
AES128 Security Protection;
100KM Air-to-Ground Transmission Distance;
| Wireless | |
| Technology | TDD-OFDM/MIMO/1T2R |
| Modulation | BPSK/QPSK/16QAM/64QAM |
| Data Rate | 24Mbps@10MHz(Peak) |
| Frequency Range | 1428~1448MHz(Standard) |
| 2401~2481(Optional) | |
| 806~826Mhz(Optional) | |
| Bandwidth | 5MHz/10MHz/20MHz |
| TX Power | 5W |
| RX Sensitivity | -99dBm@5MHz |
| System | |
| Serial Port | 1 RS232 |
| Ethernet Port | 1 Ethernet Port |
| Security | AES128 Encryption |
| Power | DC12V Power Supply ≤30W @ DC12V Power Consumption(Air) |
| Interface | |

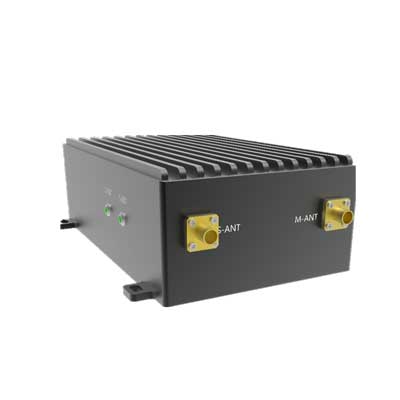

| RF Antenna | SMA×2 |
| Serial Port Interface | JST×1 |
| Ethernet Interface | JST×1 |
| Config Interface | JST×1 |
| USB Interface | JST×1 |
| Power Input | JST×1 |
| Physical | |
| Dimension | 120x82x40mm(Air) |
| Weight | 251g(Air)+1000g(Ground) |
