CD05HPT is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (H.264) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

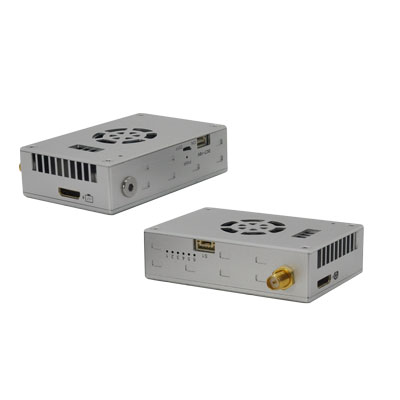

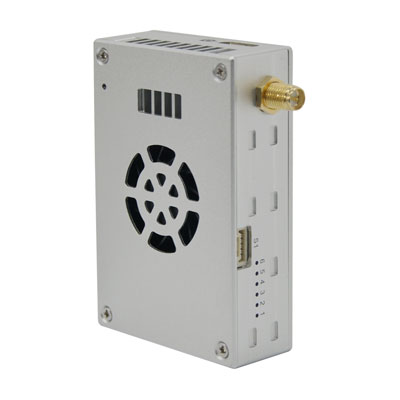

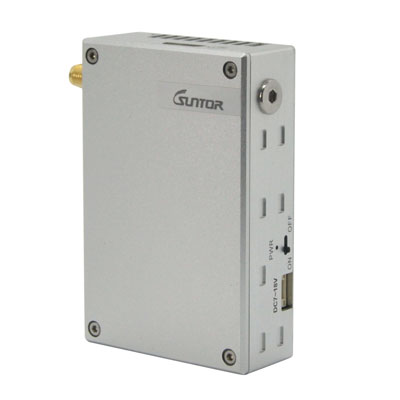

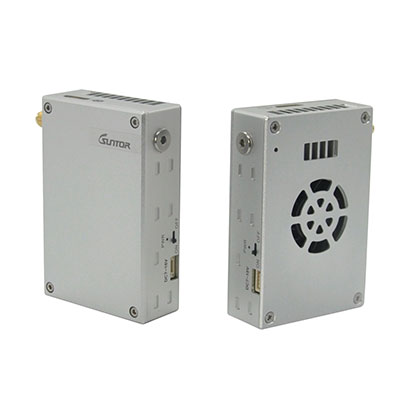

Product Introduction
Product Features
Video Input: HDMI;
Resolution: Full HD 1080P/60;
Frequency: 2.3Ghz-2.5Ghz;
Distance: Air to ground 5km;
Latency: ≤15-30ms;
Duplex Data Transmission: SBUS/TTL/MAVLINK Telemetry;

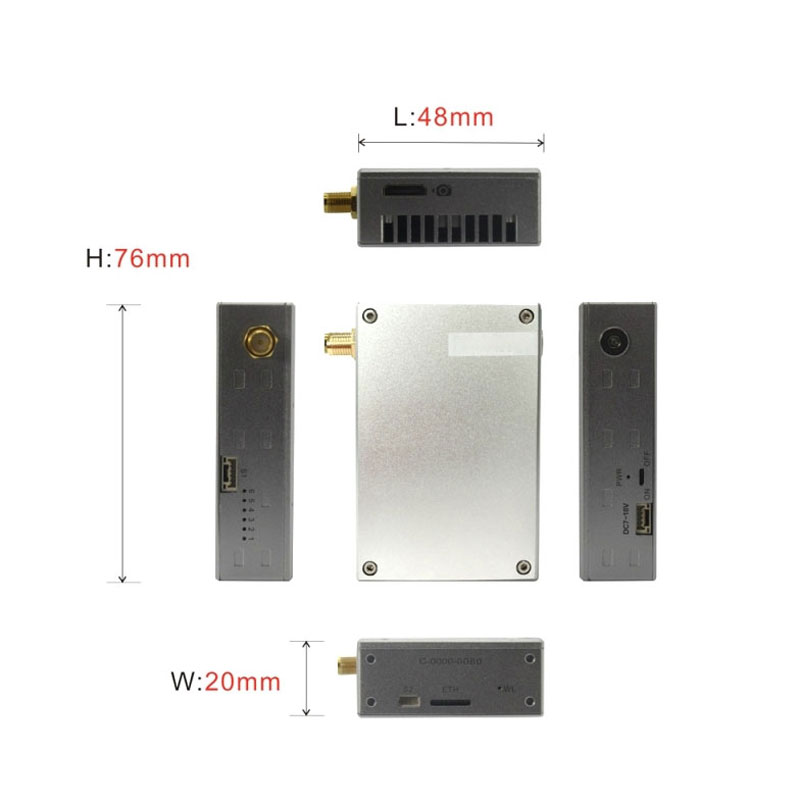

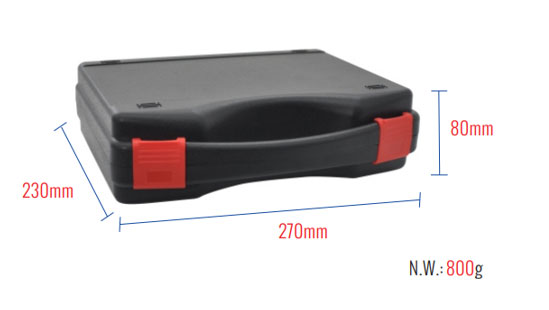

Dimension: 76*48*20mm;
Weight: TX 93g/RX 93G;
Diagram
System parameter | |
Frequency | Three frequency for your option:2.3GHz/2.4GHz/2.5GHz 2.4GHz(2402MHz-2482MHz) |
Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
RF Transmitted Power | 500mW (Air to ground 5km) |
Power Consumption | TX: 7Watts |
RX 6Watts | |
Frequency Bandwidth | 4MHz |
Latency | ≤15-30ms |
Transmission Rate | 3-5Mbps |
Receive Sensitivity | -100dbm@4Mhz, |
Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
Antenna | 1T 1R |
Video Input/output Interface | HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX |
Video Compressed Format | H.264 |
Bitrate | Software adjustment |
Encryption | AE 128 |
Transmission Distance | Air to ground 5km |
Start-up time | < 30s |
Two-way function | Support video and duplex data simultaneously |
Data | Support SBUS/TTL/MAVLINK Telemetry |
Power supply | DC12V (support DC 7- 18V) |
Interface | 1080P/60 HDMI Mini RX x1 |
100Mbps Ethernet to USB / RJ45 on Windows × 1 | |
S1 TTL bidirectional serial port x1 | |
Power Input x1 | |
Indicator Light | HDMI input/output Status |
Transmitting and receiving | |
Video board working Status | |
Power | |
HDMI | HDMI mini/Flexible Flat Cable(FFC) |
Temperature Range | Operating temperature：-40°C ~+ 85°C |
Storage temperature：-55°C ~+ 100°C | |
Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
Dimension | 76×48×20mm |
Weight | Tx: 93g/Rx: 93g |
