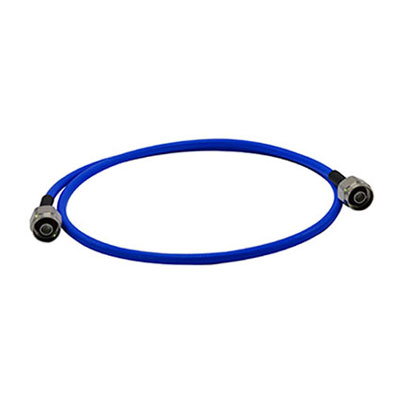

50-7 radio frequency cable covers DC-6G, which is mainly used in the feeders of RFID systems, satellite communication systems, communication base stations and other systems. It has the characteristics of large transmission power and low loss.
Product Introduction:
50-7 radio frequency cable covers DC-6G, which is mainly used in the feeders of RFID systems, satellite communication systems, communication base stations and other systems. It has the characteristics of large transmission power and low loss.
Product Features:
84%Vp FPE medium + self-adhesive aluminum foil + Mg-Al wire preparation;
Low loss, large transmission power;
Strong tensile strength;
General performance | ||||||
Inner conductor diameter | 2.83mm | |||||
Inner conductor | copper | |||||
insulation | 84%VpFPE | |||||
Outer conductor | Mg-al wire | |||||
Sheath diameter | 10.2mm | |||||
weight | 180g/m | |||||
Electrical performance | ||||||
Characteristic impedance | 50±1Ω | |||||
Cut-off frequency | 9000MHz | |||||
Standing wave ratio | ＜1.15（10~200MHz）＜1.30（300~2300MHz） | |||||
Shielding performance | ＞90dB | |||||
Frequency MHz | 30 | 140 | 330 | 450 | 900 | 2500 |
Attenuation value dB/100m | 2.20 | 5.00 | 8.00 | 8.90 | 12.8 | 22.20 |
Environmental performance | ||||||
Operating temperature | -40℃~70℃ | |||||
other | ||||||
Matching connector | N-J123 N-K123 | |||||
