Product Category
Fiberglass antenna
Model: STA1213B-7

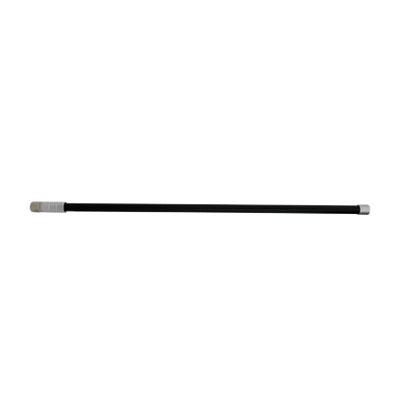

Suntor STA1213B-7 fiberglass antenna in the 1200-1300 MHz band
Product Details
Product Introduction:
Suntor STA1213B-7 fiberglass antenna in the 1200-1300 MHz band
Product Parameters:
Project | Index item | Index parameter |
Electrical property parameter | Frequency range | 1220 - 1320 MHZ |
Test condition | Free space | |
Gain | 7dBi (typical value) | |
Directivity | The horizontal direction is omnidirectional | |
Standing wave ratio | ≤2:1 | |
unroundness | ＜±1dB | |
Polarization mode | vertical | |
Input impedance | 50 ohms | |
Physical characteristic parameter | Dimension | See the drawing |
Interface processing Mode | N-J | |
Color | black | |
Antenna weight | ＜500g | |
Reliability parameter | Operating temperature | -40~50℃ |
Storage temperature | -55~70℃ |
