Product Category
Platform antenna

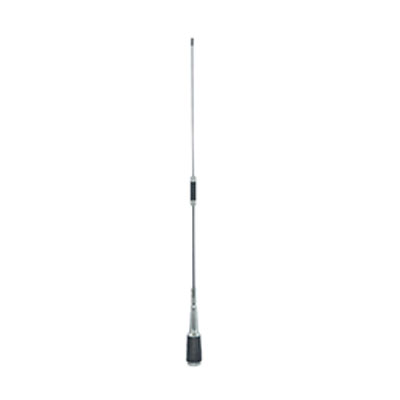

Model: TQC-500DII
TQC-500DII antenna is a medium gain antenna specially designed for automobile mobile communication. The antenna body is made of special stainless steel spring wire, which has good elasticity and anti-aging ability.
Product Details
Product Introduction:
TQC-500DII antenna is a medium gain antenna specially designed for automobile mobile communication. The antenna body is made of special stainless steel spring wire, which has good elasticity and anti-aging ability.
Product Features:
The antenna body is made of special stainless steel spring wire;
Good elasticity;
Strong anti-aging ability.
Technical parameters | |
Model number | TQC-500DII |
Frequency range -MHz | 480～590 |
Bandwidth-MHZ | 20 |
Gain -DBI | 5.5 |
Standing wave ratio | ≤1.5 |
Input impedance -Ω | 50 |
Polarization mode | Vertical |
Maximum power -W | 100 |
Joint type | SL16head |
Antenna length -mm | SL16head |
Weight -g | About 260 |
Note: Bottom spring anti-collision; Equipped with M110 large magnetic suction seat, leading cable connector by user specified. | |
