Product Category
Omnidirectional fiberglass antenna
Model: TQJ-5800AH5

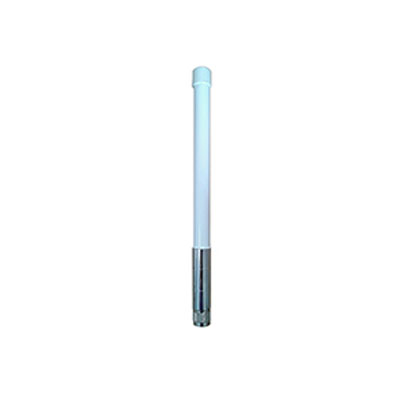

Suntor TQJ-5800AH5 omnidirectional fiberglass antenna
Product Details
Product Introduction:
Suntor TQJ-5800AH5 omnidirectional fiberglass antenna
Product Features:
Low standing wave ratio, high gain;
Strong ability to resist rot and adapt to harsh environment;
Dc grounding design;
Built-in NK connector;
A pole mounting kit is provided;
Electrical performance | |
Type number | TQJ-5800AH5 |
Frequency range -MHz | 5150-5850 |
Band width -MHz | 700 |
Gain -dBi | 5 |
Lobe width -° | 14 |
Voltage standing wave ratio | ≤1.5 |
Polarization mode | vertical |
Maximum power -W | 100 |
Input impedance -Ω | 50 |
Joint type | N type or optional |
Antenna size -m | 0.20 |
The weight is minus kg | 0.3 |
Operating temperature -° C | -30～60 |
Wind strength -- m/s | 60 |
Make clear | Single section glass steel |
