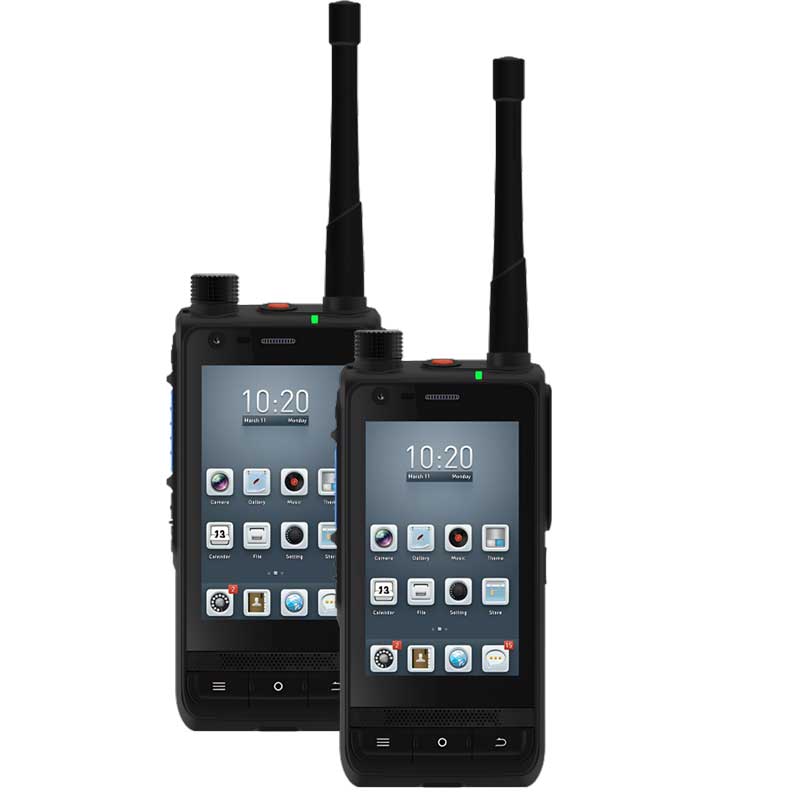

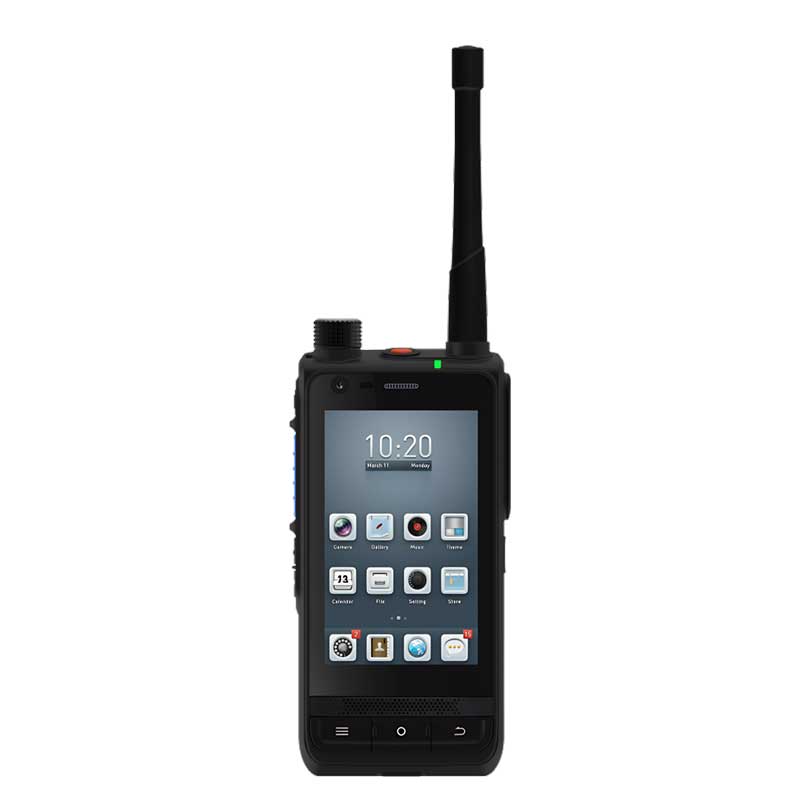

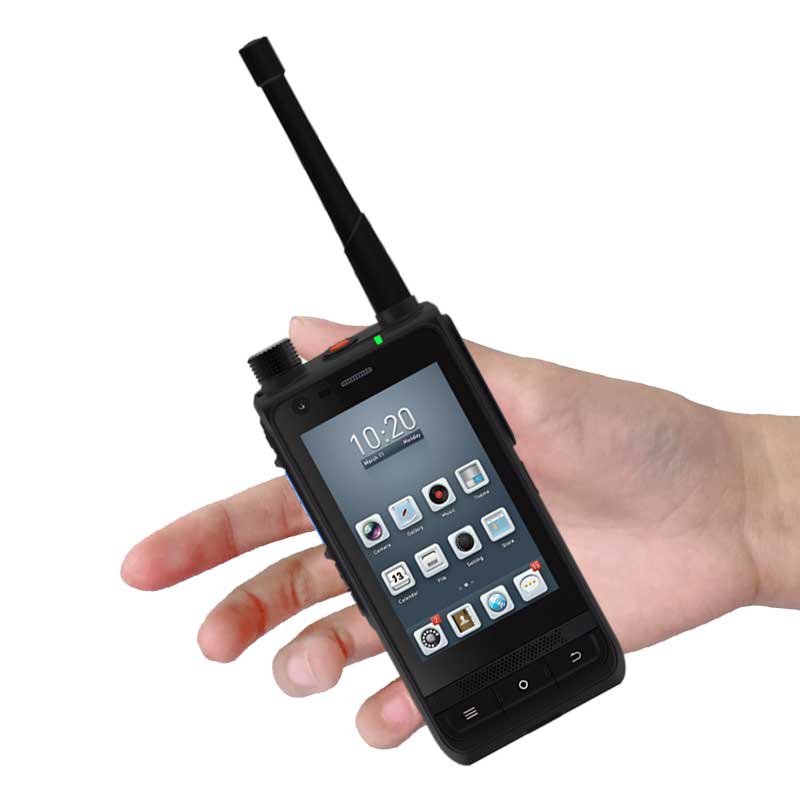

TH945D DMR & LTE Hybrid Radio
Model: TH945D
LTE multimode radiosare a generally new kind of 2-way PTT (Push To Talk) Radio Communications Equipment that utilizes existing electronic segments, RF modules, contact screens, and sub congregations mass-produced for the cell phone industry.
Product Details
1. Product Introduction
LTE multimode radiosare a generally new kind of 2-way PTT (Push To Talk) Radio Communications Equipment that utilizes existing electronic segments, RF modules, contact screens, and sub congregations mass-produced for the cell phone industry.
2. Product Features
4.0 - inch fully touch screen;
6000mAh,removable lithium battery;
IP65 ingress protection;
Dedicated PTT Key & Emergency Key
Full Compatibility with DMR Tier II;
Built in DMR to Poc Gateway;
| General | |
| CPU | Octal Core 2.0GHz |
| Memory | 3+32GB/4+64GB |
| Android Os | Android 13.0 |
| Display | 4-inch 800 × 480 Resolution LCD |
| Touch Panel | Multi-point Capacitive Tp |
| Camera | 13M(Rear)/8M(Front) |
| SIM Slot | Dual Nano SIM slot |
| Programmed Keys | PTT/ Emergency/Knob |
| Sensor | Gravity Sensor/Compass/NFC |
| Indicator | Tir-Color LED |
| Speaker | Front Speaker |
| DMR | |
| Frequency Range | UHF 400~470MHz |
| VHF 136~174MHz(Customized) | |
| Channel Space | 12.5KHz/25KHz |
| Channel Capacity | 1000(Customized) |
| Transmitter Power | 2W(High)/0.5W(Low) |
| Receiver Sensitivity | -121dBm@12dB SIND(Analogue) |
| -117dBm@1% BER(Digital) | |
| Frequency Stability | ±1ppm |
| Security | AES128/256,ARC4 |
| Vocoder | AMBE++ |
| Connectivity | |
| USB | USB TypeC2.0 / Pogo Pin |
| WIFI | 802.11b / g / n / ac 2.4G+5.8G |
| Bluetooth | BT4.0 BR/EDR+LE |
| GNSS | GPS/A-GPS/Galileo/GLONASS |
| Public Network | GSM / WCDMA / TD-LTE / FDD-LTE |
| Private Network | DMR Tier II/FM |
| Battery | |
| Capacity | 6000mAh Removable |
| Type | Lithium Polymer |
| Charging | 2A@5V |
| Dock Charger | Standard Accessory |
| Reliability | |
| Operating Temperature | -20°C～+60°C |
| Storage Temperature | -30°C～+70°C |
| Humidity | ≤ 93% |
| ESD Protection | ±6KV (Contact) / ±12KV (Air) |
| Physical | |
| Dimension | 145x69x27mm |
| Weight | 360g(with Battery and Antenna) |
