The TH754 public network mobile phone terminal is based on the mobile terminal, which has been transformed and upgraded. It is generally small in size and light in weight. Users can carry it with them. There is an interface that can be connected with the external sensing equipment, and the collected data can be transmitted wirelessly in time, or it can be connected to the wired transmission after certain accumulation
Product Introduction:
The TH754 public network mobile phone terminal is based on the mobile terminal, which has been transformed and upgraded. It is generally small in size and light in weight. Users can carry it with them. There is an interface that can be connected with the external sensing equipment, and the collected data can be transmitted wirelessly in time, or it can be connected to the wired transmission after certain accumulation.
Product Features:
Voice and data communication of the whole network and the whole frequency band;
Support 1.4/1.8G private network;
Scanning head for two-dimensional code hard decoding;
Front loudspeaker;
Three Anti smart phone, IP67;
Choose two out of three. Double card, support security TF card;

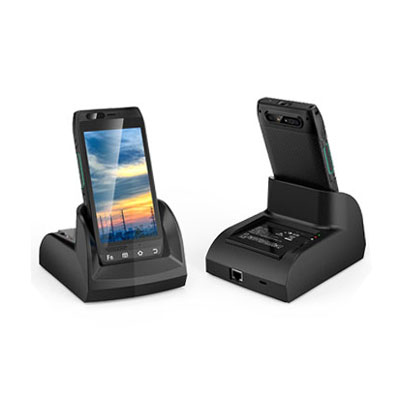

Replaceable battery and charging base;
Physical keys and intercom keys;
Application:
The handheld terminal of Internet of Things with private network function is widely used. It can meet the requirements of power inspection, rail transit, airport terminal, medical industry and other fields.
Basic parameter | |
Appearance size | 158*77*17.8mm |
Machine weight | 245g includes standard battery |
Complete color | black |
Display screen | 5 inches, 800 by 1280 resolution |
Control panel | Multi-touch capacitive touch screen |
Camera | Rear: 13 megapixels, front: 5 megapixels |
I/O interface | Type-C charging and data interface; Extend PogoPin |

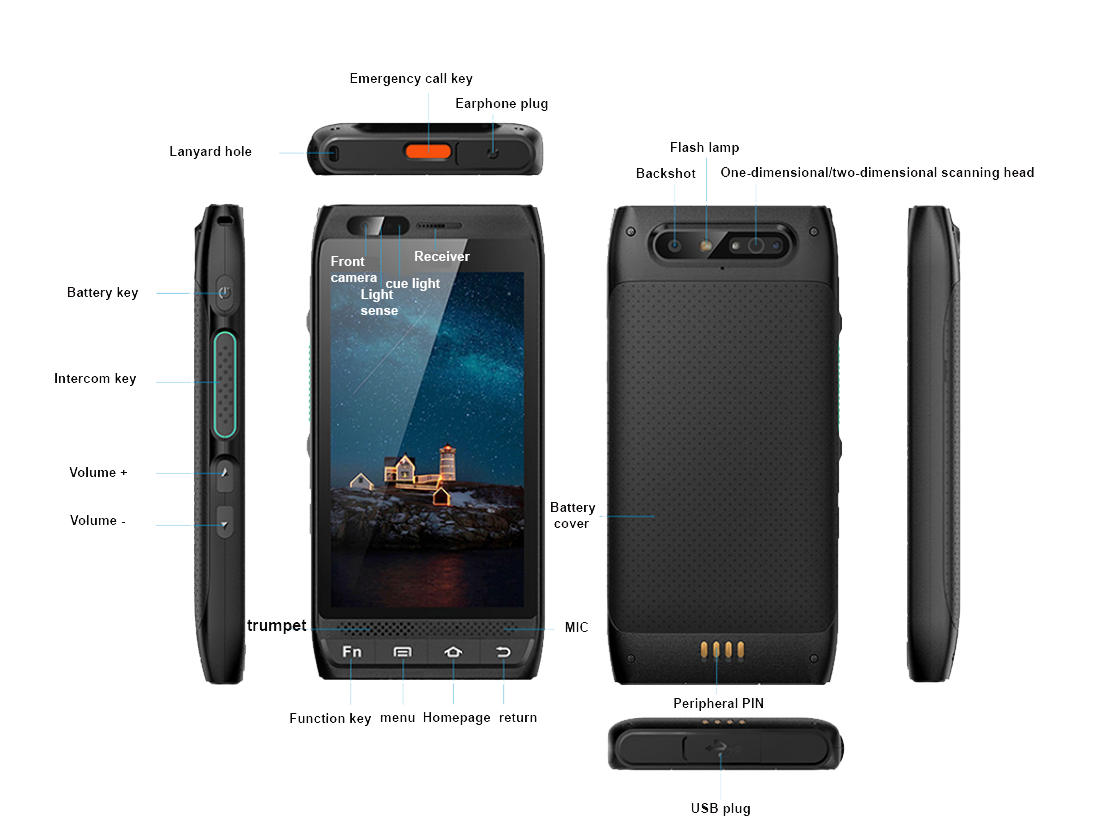

Key | Power/Volume +/ Volume -/PTT intercom /SOS Emergency/Menu/Home/Back |
Sensor | Gravity sensing, light sensing, Electronic Compass, Barometer (optional) |
Sound | Loudspeaker in front of intercom; Noise elimination multi microphone, shielding echo, noise |
encryption | National Secret Security Module (optional) |
Indicator light | Three-color lights indicate working, communication, charging and other states |
Performance parameter | |
CPU | MT6762 Octa-core 2.0G |
Operating system | Android8.1 |
RAM memory | 3GB,4GB,6GB |
ROM storage | 32GB,64GB,128GB |
TF storage | The TF card supports a maximum capacity of 128GB |
Data acquisition module (optional) | |
NFC | NFC near field communication |
Bar code | One-dimensional and two-dimensional hard decoded laser scanning light |
Data communication | |
WIFI | Supports IEEE802.11b/g/n/ac |
Bluetooth | Support Bluetooth 4.0 standard, communication distance is greater than 10 meters |
Mobile network | Mobile, Unicom, telecom 4G/3G/2G full network wireless communication; Support the TD- LTE/FDD-LTE/TD-SCDMA/WCDMA/CDMA2000/GPRS data exchange |
Private network communication | 1.4/1.8GHz(Band61/62) Private network (Optional) |
Navigation and positioning | GPS, Beidou, Galileo, Glonass |
Battery performance | |
Capacity | 4000mA replaceable battery |
Type | Lithium Polymer |
Endurance time | >8 hours (configuration difference) |
Power adapter | PE fast charge, including TypeC charging data cable |
Power adapter | Optional parts |
Working environment | |
Operating temperature | -20℃～+60℃; |
Storage temperature | -30℃～+80℃ |
Working humidity | Not more than 93% |
Electrostatic level | Contact discharge is 6KV and air discharge is 12KV |
Protection class | IP65 |
