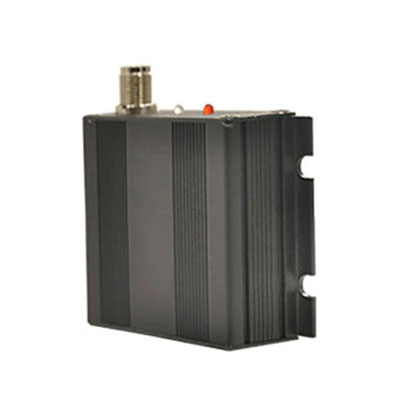

ST41-Data Link
ST41-Data Link
ST41-Data Link
Model: ST02P41
ST41 Wireless data receiving communication radio is a wireless data receiving communication radio equipment independently developed and produced by Suntor. It has high performance, high stability and high reliability, and is suitable for all kinds of harsh working environment.
Product Details

Product Introduction:


ST41 Wireless data receiving communication radio is a wireless data receiving communication radio equipment independently developed and produced by Suntor. It has high performance, high stability and high reliability, and is suitable for all kinds of harsh working environment.




Product Features:


  • A variety of interfaces are provided for users to facilitate the use of various external devices. Some interfaces can be set according to user requirements;

  • Built-in demodulator, users do not need to change the module, you can get a non-weighted, to weighted data receiving channel, greatly reducing the data error rate;

  • Through voice AF out output, can receive analog voice signal;

  • Aluminum alloy structure, with good electromagnetic compatibility, good heat dissipation performance, adapt to the requirements of industrial control;

  • Good working environment adaptability, the main indicators are much better than the national standard.




System parameter

Frequency  Range

220~240MHz

Total number of channels

16

Working  mode

Half  duplex

Channel interval

25KHz

Frequency  Stability

±2ppm

Antenna impedance

50Ω

Data  modulation mode

MSK

Supply Voltage

Dc 12V to 5V

Power  consumption

100mA

Volume

Length x width x height = 62mm x 81mm x  22mm

Channel transmission rate

2400/1200bps

Data Interface

EIA-232EIA-485

Data  interface rate

9600/4800/2400/1200bps(MSK type), can be set by computer

Reception Index

Receiving sensitivity

≤0.25μV (12dB SNR)

Adjacent  track selectivity

≥65dB

Intermodulation suppression

≥65dB

Spurious  response suppression

≥65dB

Reception distortion

≤3% (audio output 200mW)

Maximum  audio output

≥2W/8Ω
