Product Introduction:

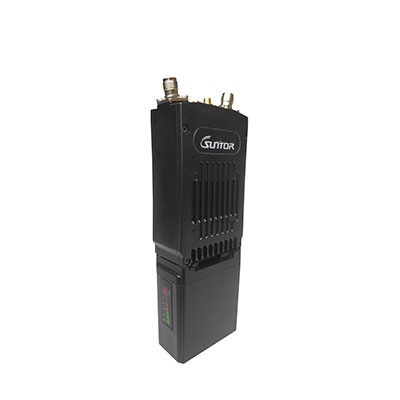

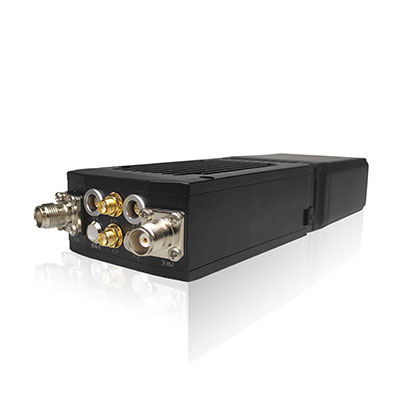

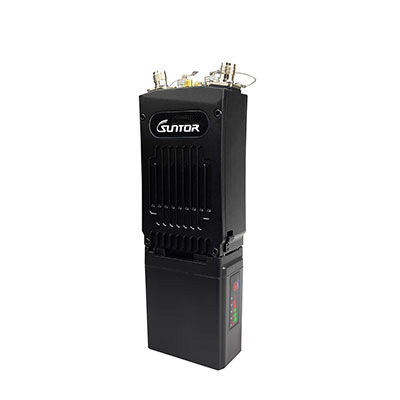

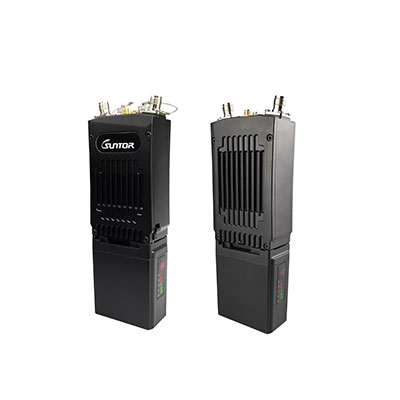

Handheld mesh(ad hoc) radio with small size ,light weight ,equipped with removable lithium battery ,can be held in hand ,but also can be placed on the shoulder and back of a individual solider to carry.

Fast network access and automatic multi-hop relay can provide multimedia communication services such as voice group call, video backhaul, and relay transmission for individual soldiers, tactical teams, and tactical police dogs, so as to achieve efficient collaboration.

The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.

Product Features:

• Centerless self-organizing: Node status is equal, that is, it can be used as terminal node, relay node or central node;

• Any organization networking: Nodes automatically identify and select the optimal route for bandwidth data;

• Security and confidentiality: Layer-by-layer encryption through operating frequency, carrier bandwidth, scrambling code, etc., supports AES128/256;

• Anti-interference, anti-destruction: Using COFDM, MIMO, AQR and other technologies to improve data bandwidth and anti-interference performance;

• Multi-node flexible networking: According to the channel quality, rate, bit error and other indicators, automatically calculate the link routing, flexible networking;

• All-IP networking interaction: Support data transparent transmission, interconnection of various systems, real-time interaction of multimedia services;

Application:

The robust ad hoc network algorithm is embedded, and no central gateway is required, and any one can realize the mesh network function. In practical applications, mesh network design can be used without worrying about network disconnection.

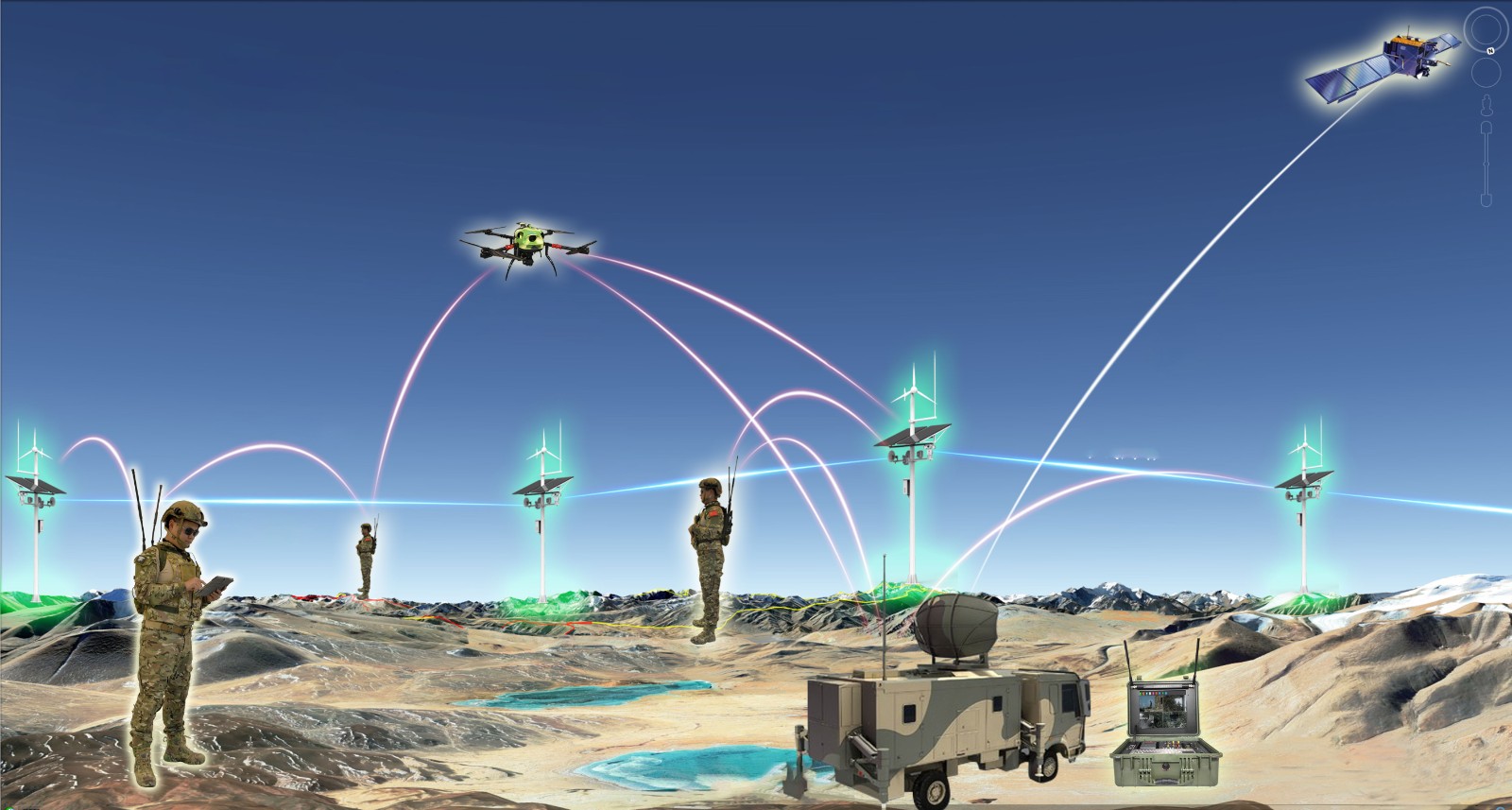

It can provide wireless broadband communication for "peacetime and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, rescue and disaster relief, and daily patrols.

The transmission distance from the open environment on the ground can reach more than 5km, the blocking environment is 300~500m (depending on the blocking environment), and the air to the ground is greater than 20km.

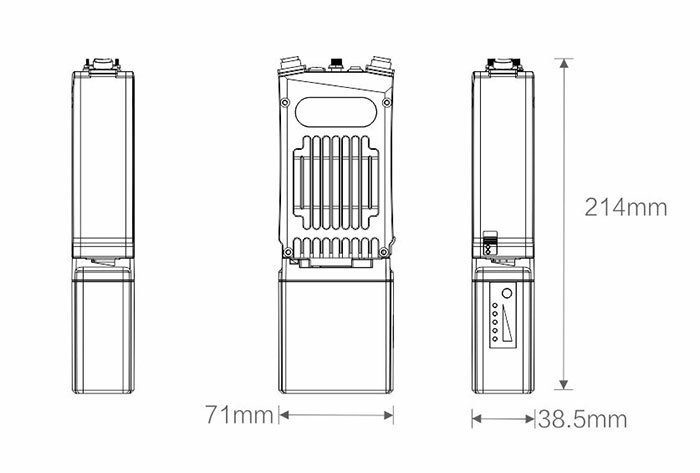

Diagram:
