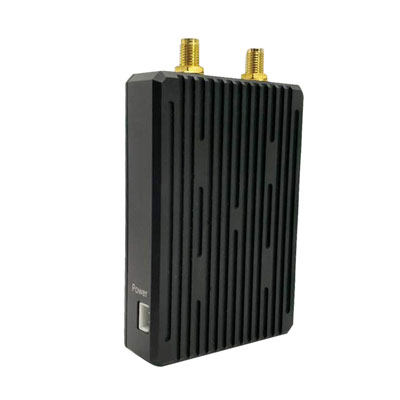

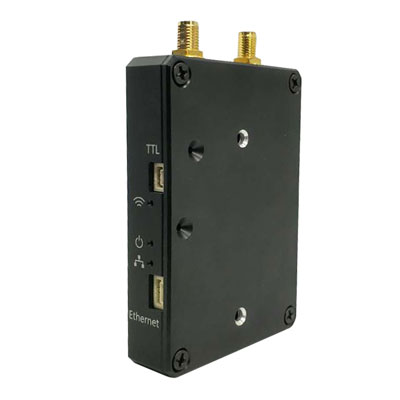

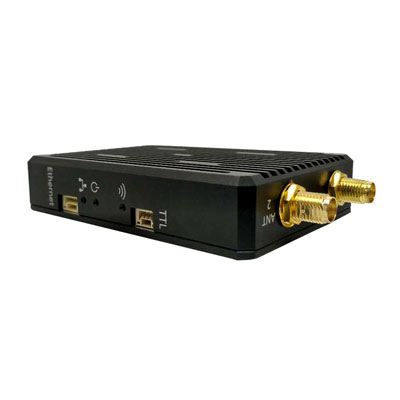

SUNTOR module CD15NMT-mini is the latest miniaturized and functional wireless transmission equipment. It adopts TDD wireless transmission technology and dual antenna diversity design to make the signal transmission quality more stable. The device can support bidirectional transmission of network data and TTL serial data at the same time. The data link can be adjusted according to different ratios, and the uplink and downlink data link transmission rates can be adjusted proportionally. In addition, the module has three frequency of 2.4GHz/1.4GHz/800MHz for option.
Product Introduction
Product Features
TDD OFDM wireless transmission technology;
Optional frequency 800MHz、1.4GHz、2.4GHz;

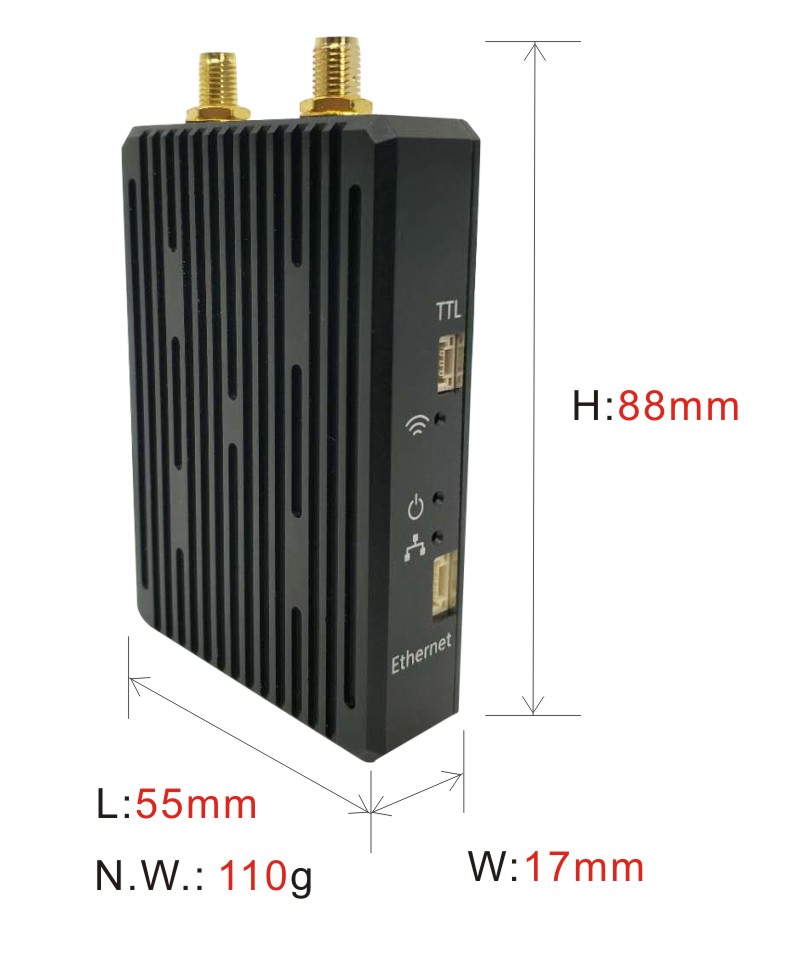

Dimension 88x55x17mm Weight :110g;
Duplex Transmitting Rate is 3-8Mbps;
Support Point to Point and Point to Multi-Point in 1-4 TX to 1RX, or 1TX to 1-4 RX. For example: Three drones to one GCS, Three GCS to one drone;
Dual antenna diversity design to make the signal transmission quality more stable, and high receiving sensitivity;
Long range more than 15km in LOS, 200meters-500meters in NLOS;
Lowest RF power 25dBm and power consumption TX 5W RX 5W;
Support IP video output and bidirectional TTL serial data;
Diagram
| Wireless | |
| Frequency Range | 1428～1448MHz |
| Bandwidth | 3MHz / 5MHz / 10MHz |
| Modulation | QPSK / 16QAM / 64QAM |
| Receive Sensitivity | -108dBm@3MHz -106dBm@5MHz -103dBm@10MHz |
| Data Rate | Max. 30Mbps Shared by All Nodes |
| RF Power | 0.5W |
| Access Mode | Point to Point/Point to Multi-Point |
| System Feature | |
| Serial Port | 1 TTL Serial Port |
| Ethernet Port | 1 Ethernet Port |
| Security | AES128 Encryption |
| Power Supply | DC5V 5W (Receiver) 5W (Transmitter) |
| Interface | |
| RF Antenna | SMA × 2 |
| Serial Port Interface | 9Pin ZH1.5mm (RS232 × 3) |
| Ethernet Interface 1 | 4Pin ZH1.5mm × 1 |
| Audio Interface | 4Pin ZH1.5mm × 1 |
| Power Input | XT30PW Male × 1 |
| Physical | |
| Dimension | 88 × 55 × 17mm |
| Weight | 110g (without Antenna) |
Application
The equipment can be applied to the use of intelligent unmanned terminals such as UAV drones, unmanned ships, unmanned boats and robots.The device can transmit standard ethernet network data, TTL serial port data, support wide voltage power supply, and can be widely used in network video signal transmission in the fields of drones, unmanned boats, unmanned vehicles, airships, target aircraft, powered umbrellas, robots, and other fields. Control signal transmission.At the same time, it is suitable for portable use, suitable for law enforcement personnel on-site video forensics, emergency deployment, rescue sites, military project like navy, air force, police and army's armed forces.
