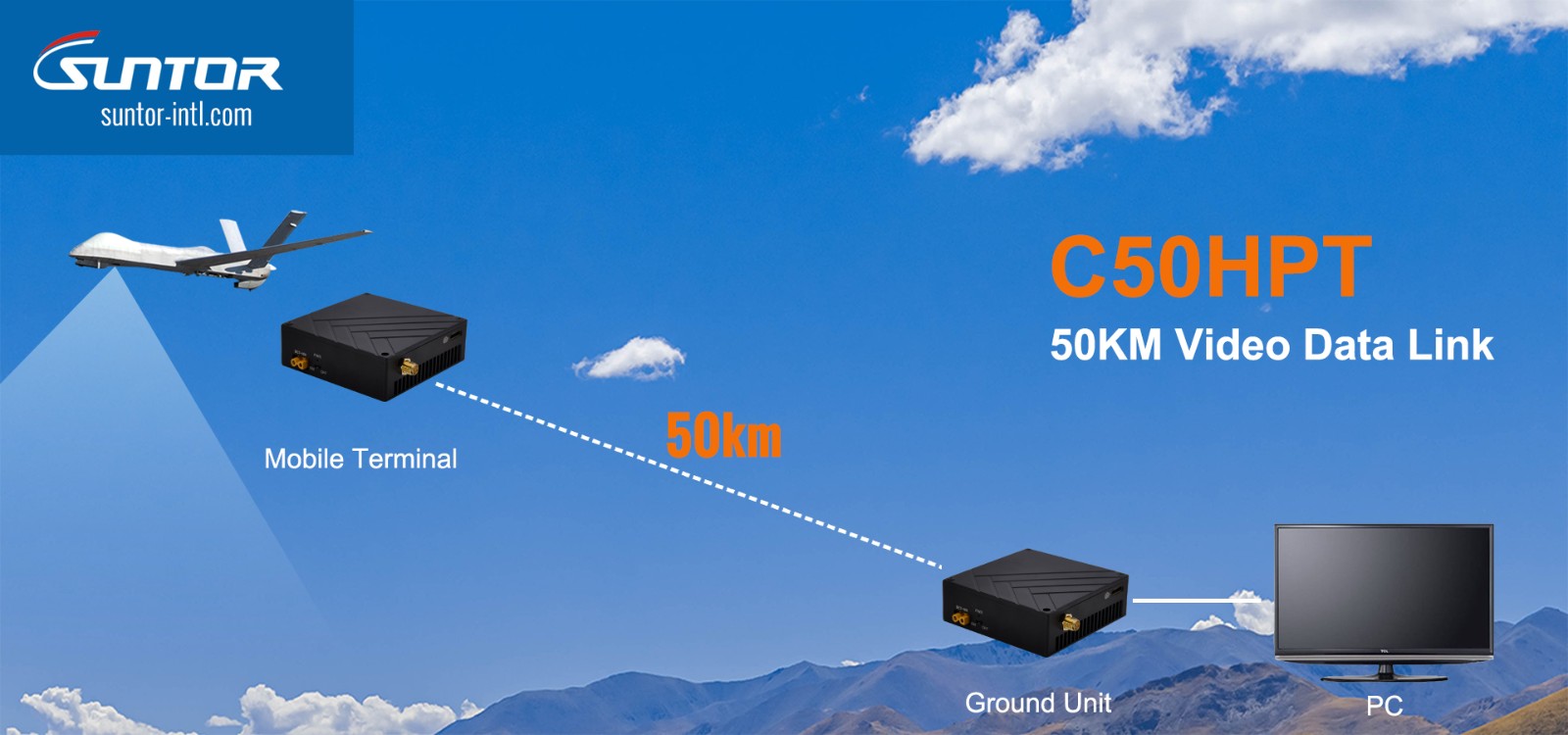

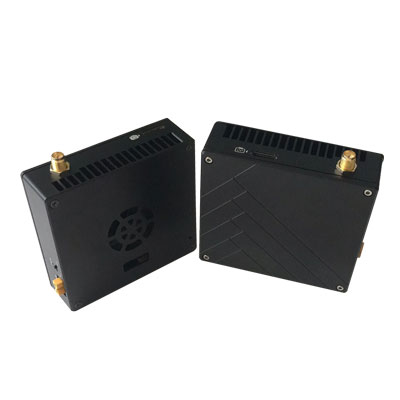

C50HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (40-70km) and low delay(12-25ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity.
Product Introduction
Product Features
Working Temperature: -40℃—+85℃;
Support SBUS/PPM/TTL/232/485;
Video:Video sources self-adaptive(Max 1080P).Support High Definition Multimedia Interface Input/output;
Support Video and Duplex Data;
Compatible with different brand flight controller and remote controller.
100Mbps Ethemet for option;
Matching with our TPlayer software (low latency software decoder) to display video on PC.
System parameter | |
Frequency | 2.4GHZ(2.400-2.482GHZ) |
Wireless Fault-tolerant | LDPC FEC |
RF Transmitted Power | 33dbm(Air to ground 40-70km) |
Power Consumption | TX:10Watts/Rx:7Watts |
Bandwidth | 1-8Mhz |
Video Input/output Interface | Onboard High Definition Multimedia Interface mini TX/RX or FFC convert to High Definition Multimedia Interface-A TX/RX |
Latency | ≤15-30ms |
Bit rate and channel adjustment mode | DIP or SPI2MCU |
Receive Sensitivity | -100dbm ~ -90dbm |
Transmitter Interface | 1080P 60 High Definition Multimedia Interface Mini RX |
100Mbps Ethernet Port | |
S1 TTL bidirectional serial port | |
S2 TTL bidirectional serial port | |
SMA RF | |
Receiver Interface | 1080P 60 High Definition Multimedia Interface Mini RX |
100Mbps Ethernet Port | |
S1 TTL bidirectional serial port | |
S2 TTL bidirectional serial port | |
SMA RF | |

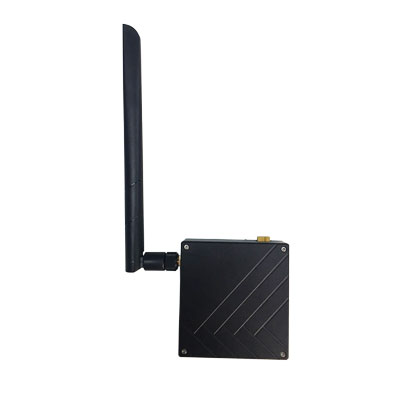

Antenna | 1T1R TX: 7db(25cm Omni Antenna) RX: 10db(Omni Antenna) |
Video Input/output Interface | High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX |
Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
Video Compressed Format | AVC, H.265, TS |
Adjustment mode of bitrate | Software adjustment |
Communication Channel Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
Transmission Mode | point to point / point to multipoint |
Transmission Distance | Air to ground 40-70km |
Start-up time | 25s |
Total delay of the system | 15-30ms of 1080P60/720P60 coding and decoding. |
Two-way function | Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module. |

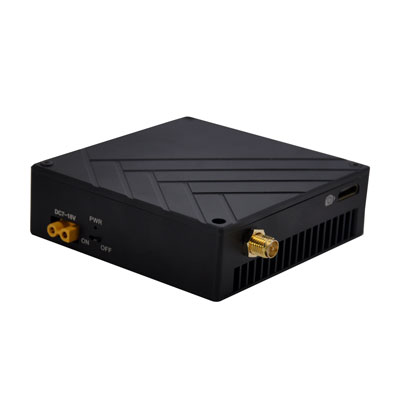

Power supply | DC 7- 18V (DC16.8V advised) |
Temperature Range | Operating temperature: -40°C ~ 85°C |
Storage temperature: -55°C ~ 100°C | |

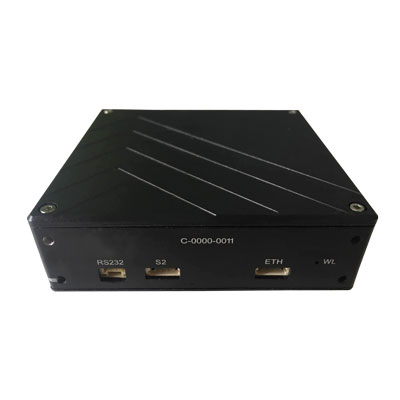

Interface | Power input interface × 1 |
Antenna interface × 1 | |
RS232 Bidirectional Port × 1(With isolation protection, resistance to 3000V pulse voltage) | |
Ethernet to USB / RJ45 on Windows × 1 | |
Indicator Light | High Definition Multimedia Interface input/output indicator light |
Transmitting and receiving indicator light | |
Video board indicator light | |
Power light | |
High Definition Multimedia Interface | High Definition Multimedia Interface mini/Flexible Flat Cable (FFC) |
Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
Size | 24mm×73mmx76mm |
Weight | Tx: 208g, Rx: 100g |
Application
As its miniature volume, precision design, lightweight and easy to carry, suitable used in long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.
