CD11HPT is a mini HD Video and Data transmission COFDM system for UAV offering control, telemetry & payload in,Video Transmission in 1 RF channel. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 10km) and low delay(15-30ms) transmission. The system supports two-way(data&image)communication, adjustable video resolution,bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

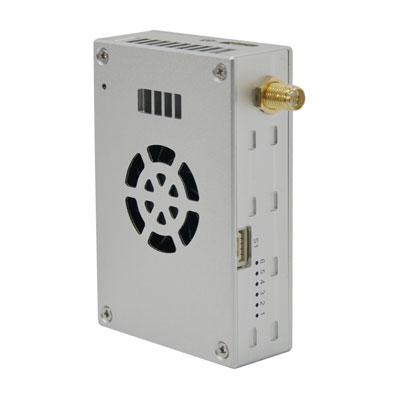

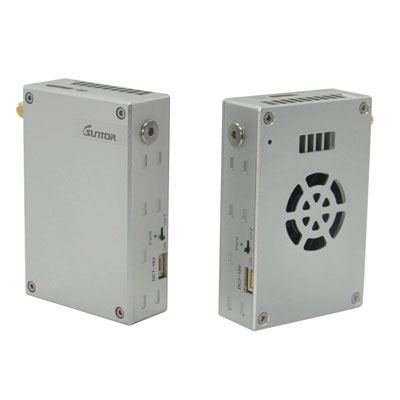

Product Introduction:
CD11HPT is a mini HD Video and Data transmission COFDM system for UAV offering control, telemetry & payload in,Video Transmission in 1 RF channel. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 10km) and low delay(15-30ms) transmission. The system supports two-way(data&image)communication, adjustable video resolution,bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
Product Features:
Operating Frequency:2.3-2.4GHZ;
Working Temperature: -40℃—+85℃；
Support SBUS/TTL/232/Mavlink Telemetry；
Double Serial Ports for bi-directional Data；
Offering control, telemetry & payload in, Video Transmission in 1 RF channel；
Video: Video sources self-adaptive(Max 1080P/60), Support High Definition Multimedia Interface Input/output；
Support Video and Duplex Data；
Frequency: 2.3Ghz-2.5Ghz；
Compatible with different brand flight controller and remote controller；
100Mbps Ethernet for option；
Matching with our TPlayer software (low latency software decoder) to display video on PC.；
Omni Antenna for TX and RX.

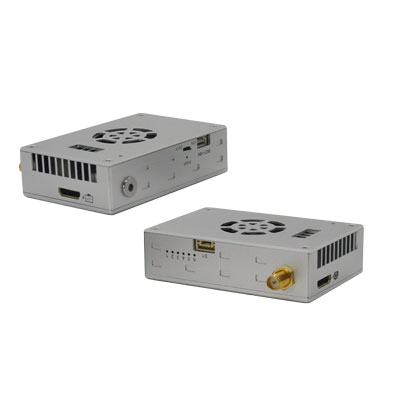

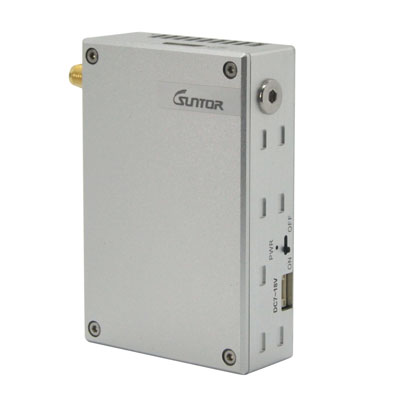

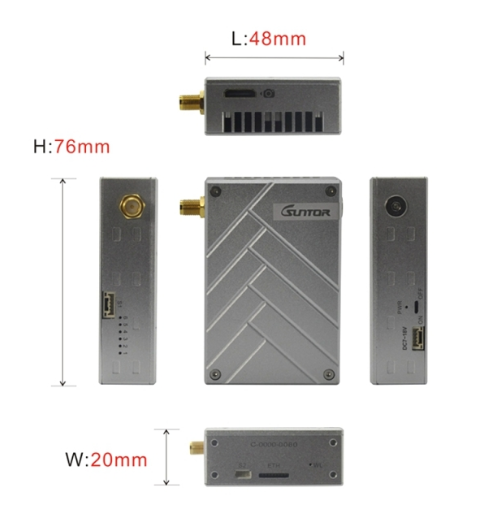

System parameter | |
Frequency: | Frequency for your option 2.3GHZ/2.4GHZ/2.5GHZ |
Error detection | LDPC FEC/Video H.264/265 Super Error Correction |
RF transmitted power | 1 Watt (Air to ground 8-10km) |
Power consumption | TX: 10 Watts RX: 6 Watts |
Frequency bandwidth | 4/8 MHZ |
Latency | 15-30ms |
Transmission rate | 3-5Mbps |
Receive Sensitivity | -100dbm@4Mhz, -95dbm@8Mhz |
Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
Antenna | 1T 1R |
Video Input/output Interface | High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX |
Video Compressed Format | H.264+H.265 |
Bitrate | Can be adjust in software |
Encryption | AES 128 |
Transmission Distance | Air to ground 10km |
Start-up time | < 30s |
Two-way function | Support video and duplex data simultaneously |
Data | Support SBUS/TTL/MAVLINK Telemetry |
Serial Port | Double Serial ports for bi-directional data and playload |
Power supply | DC 7- 18V |
Interface: | 1, 1080P/60 High Definition Multimedia Interface Mini RX x1 |
2, 100Mbps Ethernet to USB / RJ45 on Windows × 1 | |
3, S1 TTL bidirectional serial port x1 | |
4, Power Input x1 | |
Indicator Light | 1,High Definition Multimedia Interface input/output Status |
2,Transmitting and receiving | |
3,Video board working Status | |
4,Power | |
High Definition Multimedia Interface | High Definition Multimedia Interface mini/Flexible Flat Cable(FFC) |
Temperature Range | Operating temperature: -40°C ~+ 85°C ,Storage temperature: -55°C ~+ 100°C |
Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
Dimension | 72×47×19mm |
Weight | Tx: 94g/Rx: 94g |
