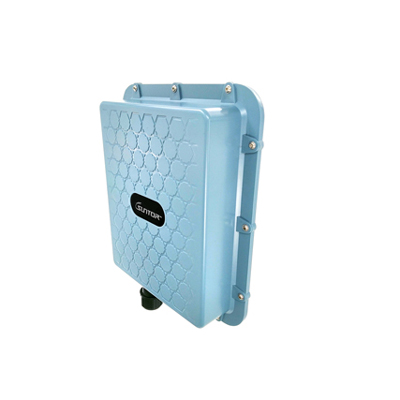

Product Introduction:

ST5816H carrier-grade long-distance wireless bridge, built-in 16dBi dual-polarization high-gain antenna, can achieve effective network connection and data transfer between two long-distance nodes, the transmission distance can reach 10km, the transmission rate can reach 100Mbps (visual environment transmission), can provide no less than the wired network quality of wireless transmission quality.

Waterproof, dustproof, salt spray proof design, waterproof level up to IP67, especially suitable for the field of harsh environment of wireless network connection services, to provide deployment of enterprise, industrial users of high-bandwidth network connection and multimedia IP data transmission needs, not only suitable for network transmission and large-scale IP monitoring needs.

The system interface of the equipment supports multi-language operation such as Chinese and English, and the system has a variety of intelligent wireless network detection and debugging tools, such as spectrum monitor, antenna calibration tool, link detection function, and watchdog function. Users can investigate the surrounding wireless electromagnetic interference, troubleshoot the cause of on-site failure, and select the best wireless channel transmission through the intelligent detection tool of the system during installation and debugging. Make the whole transmission system link more stable. When the equipment is working at full load, the power consumption is less than 10W. In the case of no mains power in the field, it can be flexibly combined with battery, solar energy, wind energy and other power supply methods.

Product Features:

• The system supports multi-language operation interface such as Chinese, English, Spanish, Portuguese and Hungarian;

• The system supports the environment survey function. Before installation and deployment, you can scan the surrounding wireless signal status;

• The system supports antenna calibration function to improve signal quality;

• Support spectrum analysis function, which can scan the spectrum of the signal within the working range and display it graphically;

• Channel selection (frequency) supports manual and automatic selection;

• Power adjustment supports manual and automatic functions;

• The software system supports IPv4 and IPv6;

• Supports priority control of audio, video, and data streams;

• The system supports the spanning tree protocol and VLAN ID division;

• Transmission distance up to 10 km or more (open environment);

• Integrated design, built-in 16dBi dual-polarized antenna, quick and easy installation;

• A maximum of 128 connections are supported;

• Support software current limiting function, uplink and downlink transmission rate can be manually set;

• The transmit power is adjustable up to 29dBm;

• Outdoor waterproof, dustproof, anti-corrosion design, waterproof class IP67;

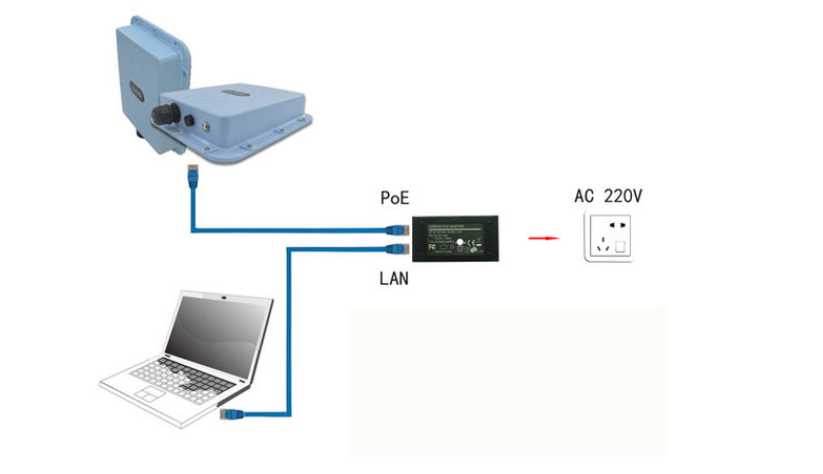

• Support DC12-24V wide voltage POE power supply.

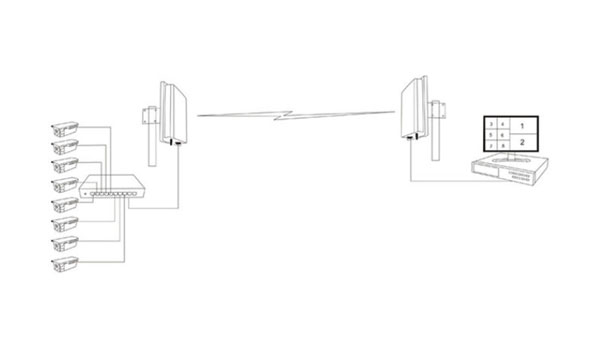

Application:

It is suitable for wireless network connection services in harsh environments, and provides high-bandwidth network connection and multimedia IP data transmission requirements for enterprises and industrial users. It is not only applicable to network transmission and large-scale IP monitoring requirements.
