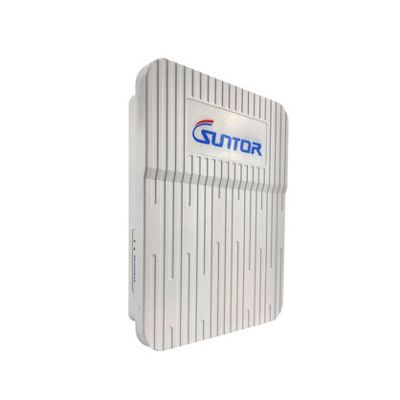

Model: ST58T8G-N
ST58T8G-N digital wireless bridge is long range outdoor wireless bridge, working frequency is 5GHz. With long transmission distance, can avoid unnecessary the roam among the access point. It assures the stability of wireless connection and decease the products quantity.
Product Details

Product Introduction:

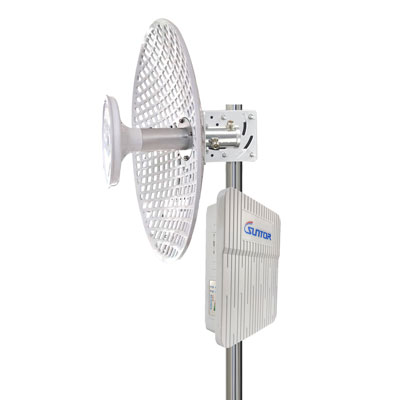

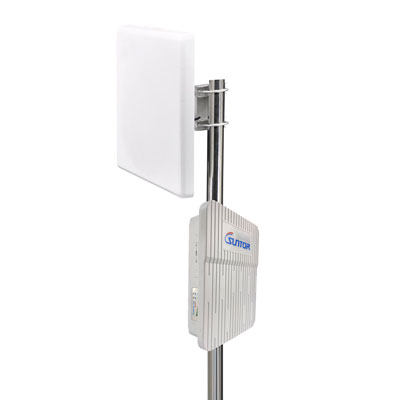

ST58T8G-N High-power outdoor wireless bridge, with industrial information certification of radio type approval, suitable for the wild environment of wireless network connection services, to provide enterprise network deployment, industrial users of high-bandwidth network connection and multimedia IP data transmission needs, not only suitable for trunk network transmission but also for large-scale IP monitoring needs. ST58T8G-N High-power outdoor wireless bridge equipment can be equipped with a variety of high-gain directional antennas according to different field requirements to effectively connect two remote nodes, the transmission distance can reach 20KM, which can provide wireless transmission quality no less than the wired network quality.


ST58T8G-N high-power outdoor wireless bridge device supports base station mode, point-to-point bridge mode, user station mode, different modes can achieve different effects, can do point-to-point transmission, point-to-multipoint transmission, automatic roaming switching and other application scenarios transmission. The device supports multiple bandwidth modes of 5MHz, 10MHz, 15MHz, 20MHz, 30MHz, 40MHz, and 52MHz to meet different network transmission requirements.


The device supports both Chinese and English interfaces and is easy to operate, eliminating cumbersome operation methods, making debugging faster and easier, and conducive to rapid deployment. It is very suitable for engineers to quickly get started. The power supply adopts DC12 ~ 24V wide voltage input design, and the actual power consumption of the equipment is less than 10W. In the case of no mains power in the field, it can flexibly match battery, solar energy, wind power and other power supply methods to work.




Product Features:


  • Strong anti-interference ability: software detection of field RF signals and sufficient frequency resources improve anti-interference ability, and have better performance in complex electromagnetic environments;

  • Support a variety of operating modes: base station mode/user station mode/bridge mode/roaming mode;

  • Fast roaming switch function: Realize the fast roaming switch function between a mobile client and multiple fixed base stations ;

  • Stable transmission rate: Support point-to-point, point-to-multipoint transmission, the maximum transmission rate of 351Mbps;

  • English and Chinese interface operation: Support Chinese and English interface operation;

  • Support wireless signal scanning: support tools to scan peripheral frequency points, convenient for engineering personnel debugging and installation;

  • Power adjustable: transmission power adjustable, up to 27dBm;

  • 7 kinds of working bandwidth: 5MHz, 10MHz, 15MHz, 20MHz, 30MHz, 40MHz, 52MHz, easy to use flexibly in different working environments;

  • There are 13 adjustment modes for device power Settings, including power adaptive adjustment mode;

  • Support manual coordinate position positioning function: guests can enter the real-time coordinate position of the device in the device;

  • Support online map display function: can display the different position status and connection status of online devices on the map;

  • Wide voltage operation: Support DC12 ~ 24V POE power supply mode;

  • Customized development: Support product appearance customized development, tailored according to different use environments, to meet user needs.




Application:

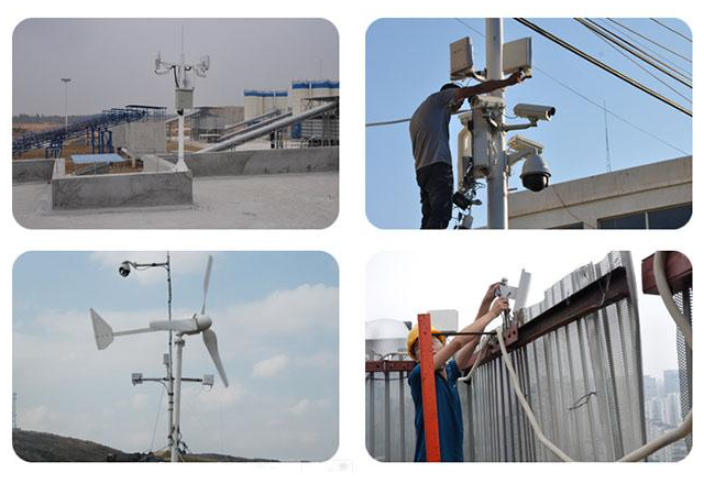

Large construction sites, security cites, mines, tunnels, mountains, no man'sland, rivers, scenic area, oil and other bad environment.





Specification  parameter

Standard  protocol

IEEE  802.11a; IEEE 802.11a/n; IEEE 802.3; IEEE 802.3u

Modulation  technique

HTOFDM

Operating  frequency

4900~6100MHz

Transmission  rate

351Mbps

Modulation  mode

64QAM 3/4,  64QAM 2/3, 16QAM 3/4, 16QAM 1/2, QPSK 3/4, QPSK 1/2, BPSK 3/4, BPSK 1/2

Transmitting  power

27dBm

Antenna  type

MIMO*2,  external dual polarization

Receiving  sensitivity

802.11a,6Mbps -95dBm,

802.11n,MCS0-88dBmMCS7-73dBm

Transmission  distance

>20km

Hardware

Internal  memory

64M Byte

Flash  memory

16 M Byte

Port

Network  interface

1 100 Mbit/s network port (10/100Mbps)

Radio  frequency interface

MIMO*2,  external dual polarization, N-K

System  management

Management  mode

Supports  Chinese/English management, WEB management, and Telnet management

Reset  management

The  software and built-in hardware reset

Feature

Network  function

Supports  VLAN, DHCP, NAT, ARP, TCP, UDP, IGMP, HTTP, STP, NTP, firewall, virtual  bridge (up to 128 SSID), IPv6, packet analysis and filtering, traffic  precision control (QoS), etc

Roaming  function

Support  client automatic roaming switch function

Operation  mode

Base  Station mode, CPE mode, P2P (Bridge) mode

Channel  bandwidth

5MHz,10MHz,15MHz,20MHz,30MHz,40MHz,52MHz

Network  tool

The system  supports the ping command and network detection signal scanning

Signal  light

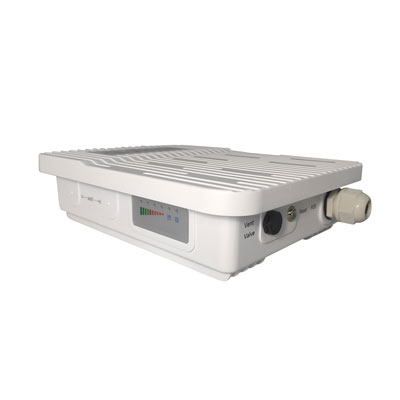

Six  indicator, power supply, network port interface, working status, signal  strength indication

Positioning  function

Support  online map, manual input coordinate positioning

Network  topology

Supports  network transmission link topology

secure

Encryption  mode

WEP, TKIP,  AES; Open system, shared key WPA/WPA-PSK, WPA2/WPA2-PSK; 802.1 x (PEAP, TLS,  TTLS) WAPI

MAC  filtering

Bidirectional  binding MAC address authentication communication

Environmental  and physical properties

Class of  protection

IP67

Operating  temperature

-40+75

Storage  temperature

-4080

Working  humidity

10% ~ 90%  (non-condensation)

Surge  protection

Common  mode (DM) 6KV/ Differential mode (CM)2KV

Electrostatic  protection

8KV  (contact) 16KV (air)

Air permeability

210ml/min/cm²(pressure  difference =70mbar)

Power  supply

Operating  voltage

DC12 to 24V POE power supply

Power dissipation

<10W

Physical  indicators

Size  (L*H*W)

270mm*270mm*70mm

weight

1.9kg  (without support)

Operating  system support

Windows 2000/XP/Vista/Windows 10

Keep under  warranty

1 year
