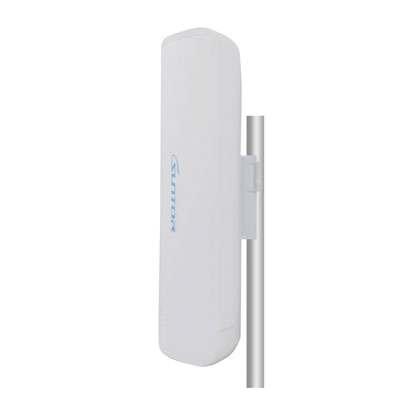

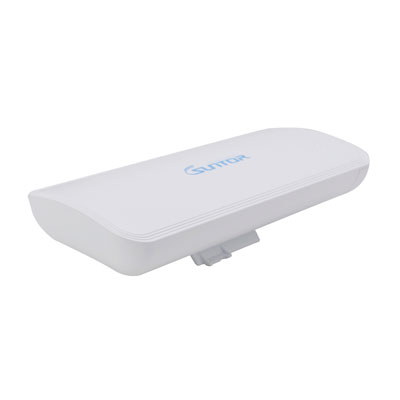

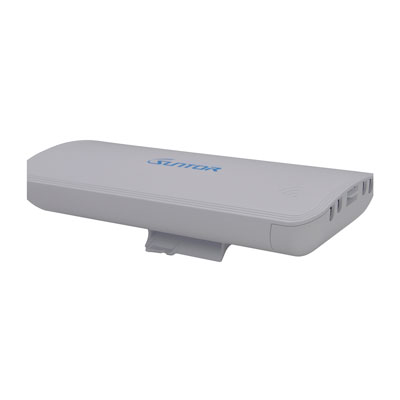

ST5813H outdoor carrier-grade wireless bridge, built-in 13DBI dual-polarized directional antenna, theoretical airspeed up to 300Mbps. Support point-to-point and point-to-multipoint transmission, point-to-point transmission distance up to 5 kilometers, measured throughput up to 100Mbps. Suitable for a variety of complex site environment, widely used in residential renovation, construction sites, oil fields, road monitoring, across the river and sea, mining areas, tunnels and other difficult to set the cable complex environment.
Product Introduction:
ST5813H outdoor carrier-grade wireless bridge, integrated with antenna and RF module integrated design, has the advantages of easy installation and maintenance, simple debugging, outdoor waterproof and dustproof design. Built-in 13DBI dual-polarized directional antenna, air speed theory up to 300Mbps. Support point-to-point and point-to-multipoint transmission, point-to-point transmission distance up to 5 kilometers, measured throughput up to 100Mbps. Working in the 5G frequency band, the frequency scanning tool of the device can scan the channel situation of all the surrounding 5G frequency bands, which is convenient for engineers to choose the best use channel and effectively avoid the problem of co-frequency interference.
Product Features:
The system supports multi-language operation interface such as Chinese, English, Spanish, Portuguese and Hungarian;
The system supports the environment survey function. Before installation and deployment, you can scan the surrounding wireless signal status;
The system supports antenna calibration function to improve signal quality;
Support spectrum analysis function, you can scan the spectrum of the signal within the working range;
Channel selection (frequency) supports manual and automatic selection;
Power adjustment supports manual and automatic functions;
The software system supports IPv4 and IPv6;
Supports priority control of audio, video, and data streams;
The system supports the spanning tree protocol and VLAN ID division;
Transmission distance up to 5km or more (open environment);
Integrated design, built-in 13dBi dual-polarized antenna, quick and easy installation;
Support software current limiting function, uplink and downlink transmission rate can be manually set;
The transmit power is adjustable up to 27dBm;
Outdoor waterproof, dustproof, anti-corrosion design, waterproof class IP65;
Support DC12-24V wide voltage POE power supply;
Application:
Suitable for a variety of complex site environment, widely used in residential renovation, construction sites, oil fields, road monitoring, across rivers and seas, mining areas, tunnels and other complex environment is not convenient to set up cables.
Specification parameter | |
Standard protocol | Support IEEE 802.a/n standard |
Modulation technique | OFDM |
Operating frequency | 4900-6100MHz |
Transmission rate | 300Mbps |
Transmitting power | Up to 27dBm (500mW), software adjustable |
Antenna type | Built-in dual-polarized 13dBi flat antenna |
Receiving sensitivity | 802.11a,6Mbps-95dBm, |
801.n,MCS0：-88dBm；MCS7：-73dBm | |
Transmission distance | ≥5km |
Hardware | |
Internal memory | 64M Byte |
Flash memory | 8M Byte |
Port | |
Network interface | 10/100M Ethernet port, two Ethernet ports |
System management | |
Management mode | Supports multi-language interface, WEB, Telnet, and SSH management |
Reset management | Hardware/software reset is supported |
Feature | |
Network function | WDS、PPTP、L2TP、IPsec、DHCPClient、Server、NAPT、NTP、VLANSettings. |
Channel bandwidth | 5MHz,10MHz,20MHz,40MHz |
Network tool | The system supports the ping command and network detection signal scanning |
Network protection | Supports network speed limiting and MAC address-based access control |
Signal light | Six indicator, power supply, network port interface, working status, signal strength indication. |
Wireless function | Peripheral Site Detection/Channel Scan/Priority AP Connection Setting Binding (BSSID) automatic channel selection function. |
Secure | |
Encryption mode | WEP, TKIP, AES; Open system, shared key WPA/WPA-PSK, WPA2/WPA2-PSK; 802.1 x (PEAP, TLS, TTLS) WAPI |
Authentication function | WEB account/password, PPPOE access authentication, routing mode, and client replace all terminal authentication. In bridge mode, all terminals require independent authentication, and multiple users perform prtal authentication independently |
Configuration management | Web-based management tools, CPE built-in WEB server/Remote Firmware Upgrade (HTTP). |
MAC filtering | Bidirectional binding MAC address authentication communication |
Fault diagnosis | Supports Telnet connection/syslog system run logs/automatically detects network status. Automatically reconnects to the network after disconnection. |
Environmental and physical properties | |
Class of protection | IP65 |
Operating temperature | -30℃～+70℃ |
Storage temperature | -40℃～80℃ |
Working humidity | 10% ~ 90% (non-condensation) |
Surge protection | Common mode (DM) 6KV/ Differential mode (CM)2KV |
Electrostatic protection | 8KV (contact) 16KV (air) |
Power supply | |
Operating voltage | DC12 ~ 24V power supply |
POE power supply | DC24V POE power supply |
Power dissipation | ≤8W |
Physical indicators | |
Size (L*H*W) | 246mm*106mm*60mm |
Weight | 370g (net weight) |
Operating system support | Windows 2000/XP/Vista/Windows 10 |
Keep under warranty | 1 year |
