Product Introduction:

ST5825G-V2 wireless bridge: The software design adopts the wireless protocol of TDMA+ polling outdoor video and data transmission, which is more anti-noise, and can intelligently allocate time slots to each terminal device, eliminating the problem of low throughput when there is a hidden node in the traditional 802.11 network. The device avoids conflicts in time slot allocation. This ensures that the device can poll each terminal and allocate a time gap to each terminal. In this way, possible conflicts can be avoided during transmission from terminals to access points. By checking the status of each client, using algorithms to check the activity of terminal devices and the type of services performed, the algorithm intelligently allocates time slots to each terminal to maximize efficiency, avoid wasting transmission time, and always maintain the best transmission efficiency. The special switch designed in the software kernel can effectively reduce the noise interference from the surrounding signal, effectively prevent or reduce the interference signal, and achieve better and more stable throughput and delay in the signal congestion area.

Product Features:

• Transmission distance ≥15km;

• Supports 24V POE power supply;

• Support harsh environment work;

• Supports automatic frequency adjustment;

• Support power adaptive;

• Support TDMA (Time Division Multiple Access);

• Supports point-to-point and point-to-multipoint networking;

• Anti-surge: common mode 4kv, differential mode 1.5kv, isolated voltage 6kV;

• Anti-static: contact discharge 6kv, air discharge 8kv;

• Support high-precision wireless link testing;

• The device has a digital display tube, which can display the current signal strength;

• Support dynamic channel selection, can better eliminate noise interference;

• The software protocol supports transmission in complex environment and has strong anti-interference ability;

• With frequency expansion function, customers can choose according to the actual site;

• Support QOS intelligent optimization technology, priority voice, video stable transmission;

• An antenna calibration tool is available to calibrate the antenna direction in real time.

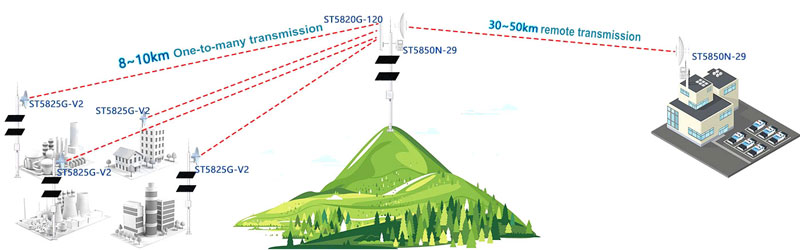

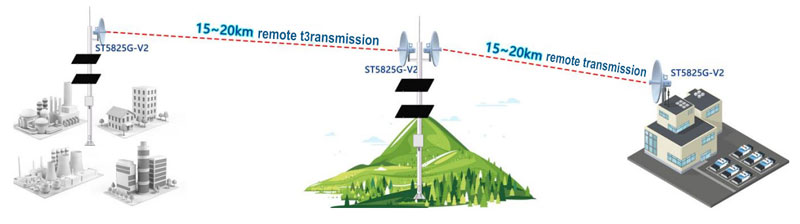

Application:

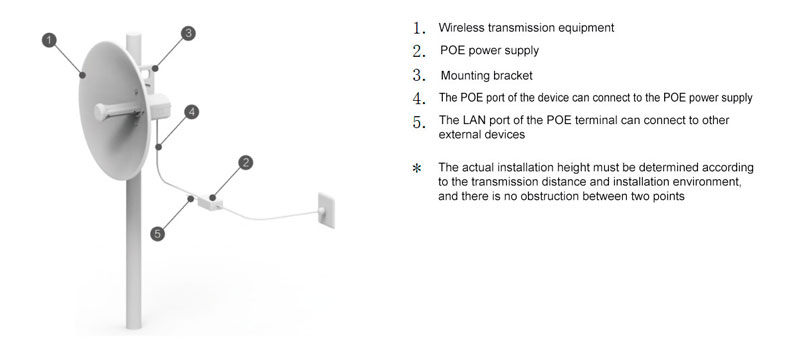

Diagram:
