ST20G-N is a very excellent long-distance high-bandwidth microwave wireless transmission equipment, the measured data 20km can reach more than 200Mbps. The equipment power is 27dBm, the power supply voltage is 48V POE power supply (standard 802.11at specification), the working temperature supports -40℃~70℃, the shell design is IP66 standard, waterproof, dustproof, anti-oil, anti-dew, fog, the structure is designed with the internal and external pressure balance function, which improves the reliability of the product in the harsh environment.
Product Introduction:
ST20G-N wireless bridge software design uses TDMA+ polling outdoor video and data transmission wireless protocol, stronger anti-noise, can intelligently allocate time slots to each terminal device, eliminating the traditional 802.11 network there is a hidden node, low throughput problem. The device avoids conflicts in time slot allocation. This ensures that the device can poll each terminal and allocate a time gap to each terminal. In this way, possible conflicts can be avoided during transmission from terminals to access points. By checking the status of each client, using algorithms to check the activity of terminal devices and the type of services performed, the algorithm intelligently allocates time slots to each terminal to maximize efficiency, avoid wasting transmission time, and always maintain the best transmission efficiency. The special switch designed in the software kernel can effectively reduce the noise interference from the surrounding signal, effectively prevent or reduce the interference signal, and achieve better and more stable throughput and delay in the signal congestion area.
Product Features:
Support long-distance transmission applications, ≥20km;
Support 802.11at standard 48V POE power supply;
Support harsh environment work;
Supports automatic frequency adjustment;
Support power adaptive;
Support TDMA (Time Division Multiple Access);
Supports point-to-point and point-to-multipoint networking;
Surge prevention: common mode 4kv, differential mode 2kv;
Anti-static: contact discharge 4kv, air discharge 6kv;
Support dynamic channel selection, can better eliminate noise interference;
The software protocol supports transmission in complex environment and has strong anti-interference ability;
With frequency expansion function, customers can choose according to the actual site;
Support QOS intelligent optimization technology, priority voice, video stable transmission.

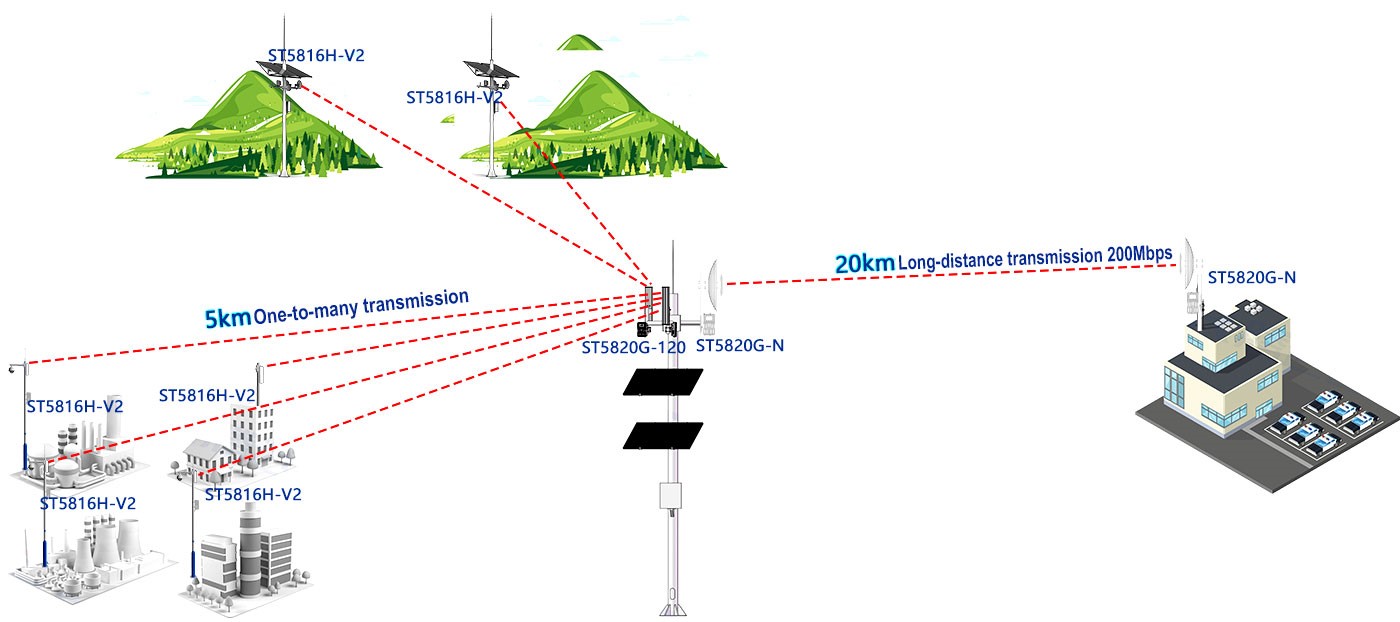

Application:

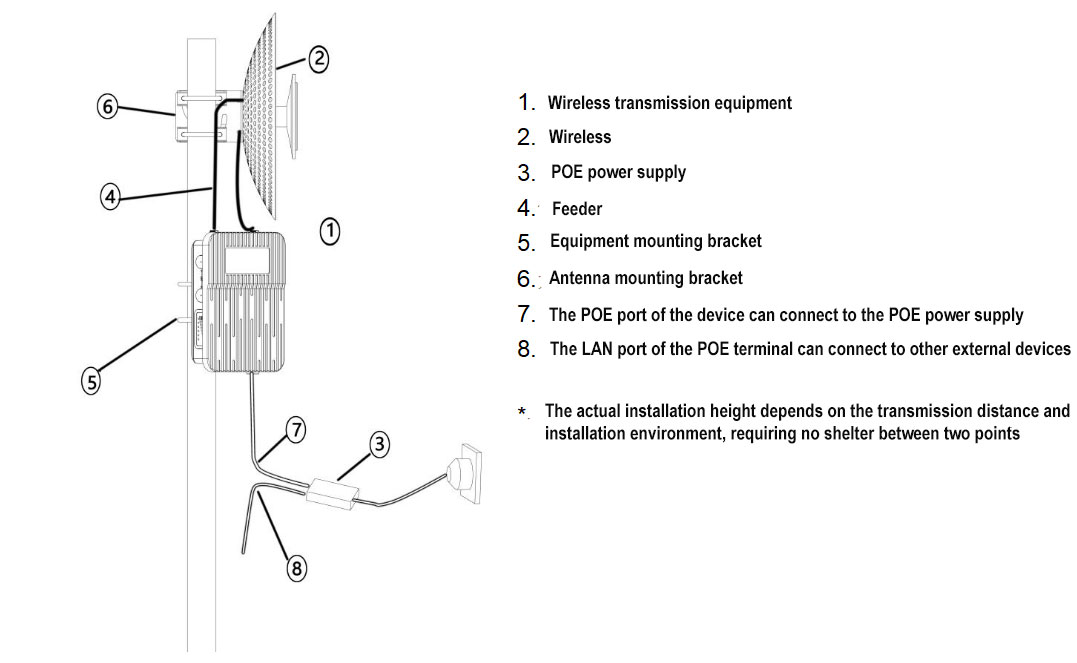

Diagram:
Software specification | |
Standard protocol | Supports the 802.11a/n/ac standard |
Operating frequency | 5180~5320MHz、5845~5825MHz(China) 5180~5320MHz、5500~5720MHz、5745~5825MHz(America)5160~5340MHz、5480~5720MHz、5745~5865MHz(India) 5160~5340MHz、5480~5720MHz、5745~5825MHz(The United Arab Emirates) 5745~5805() Spread spectrum: 4920~6100MHz (use must comply with local laws and regulations) * The above frequencies need to be applied for separately |
Working mode | Access Point, client, WDS Access Point, WDS client |
Safe mode | WPA2-PSK, hide SSID, IP/MAC filtering |
Network mode | Bridge mode and routing mode |
Configuration mode | Supports web configuration, AC remote management, and SNMP management |
VLAN | support |
QOS | support |
Timed restart | support |
Guard dog | support |
Hardware specification | |

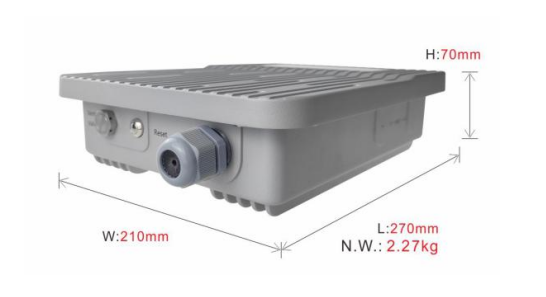

Size | 270*210*70mm |
weight | 2.27kg |
Class of protection | IP66 |
Power supply mode | 48V POE power supply (standard 802.11at specification) |
Maximum power consumption | 12W |
Average power consumption | 9W |
Internal memory | 256MB |
Flash memory | 32MB |
Radio frequency interface | Type 2*N connector |
Transmitting power | 27dBm*2 |
Network interface | RJ45*1(10/100/1000Mbps) |
Operating temperature | -40℃~70℃ |
Storage temperature | -40℃~85℃ |
Working humidity | 5% to 95%RH does not condense |
Surge protection | POE/GE: common mode 4kv, differential mode 2kv |
Electrostatic protection | Contact discharge: 4kv, air discharge: 6kv |
