ST5825G series high-power wireless transmission equipment, is based on 5GHz carrier-grade long-distance wireless transmission equipment, built-in 25dB dual-polarization high-gain 2×2MIMO antenna; The device has rich operating system functions and strong wireless communication optimization ability. The kernel adopts 802.11ac protocol and is compatible with 802.11a/n protocol. The equipment supports intelligent dynamic polling protocol, strong anti-interference ability, even in serious interference areas, still can guarantee the stable access of 64 users;
Product Introduction:

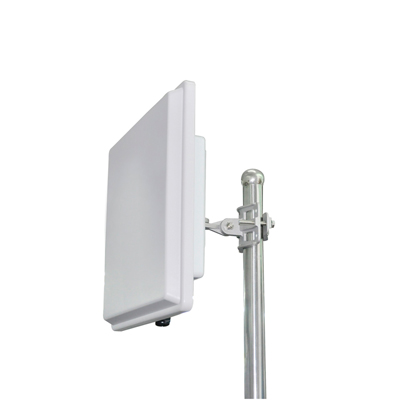

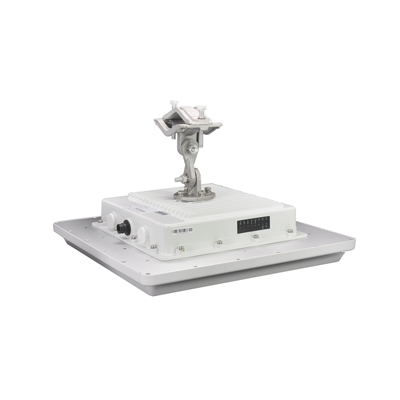

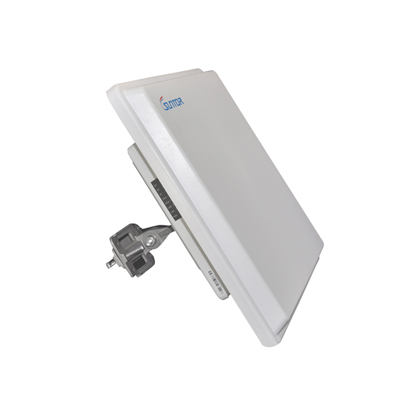

ST5825G high-power wireless bridge is a carrier-grade long-distance wireless transmission device based on 5GHz, with a built-in 25dB dual-polarization high-gain 2×2MIMO antenna. The device has rich operating system functions and strong wireless communication optimization ability. The kernel adopts 802.11ac protocol and is compatible with 802.11a/n protocol. The equipment supports intelligent dynamic polling protocol, strong anti-interference ability, even in serious interference areas, still can guarantee the stable access of 64 users; The device uses dual firmware images. During the upgrade, even if the power supply is interrupted, the device can still be restarted.
The device in the unblocked state, the highest transmission rate can reach 867Mbps, the longest transmission distance can reach 30km, can provide no less than the wired transmission quality of network transmission quality; Waterproof, dustproof, salt spray proof design, waterproof level up to IP67, especially suitable for the wild environment of wireless network connection services, support high bandwidth network data connection and network based audio and video signal transmission.
Product Features:
The system supports multi-language operation interface such as Chinese, English, Spanish, Portuguese and Hungarian;
The system supports the environment survey function. Before installation and deployment, you can scan the surrounding wireless signal status;
The system supports antenna calibration function to improve signal quality;
Support spectrum analysis function, which can scan the spectrum of the signal within the working range and display it graphically;
Channel selection (frequency) support manual and automatic selection;
Power adjustment supports manual and automatic functions;
The software system supports IPv4 and IPv6;
Support audio and video, data stream priority control;
The system supports the spanning tree protocol and VLAN ID division.
The transmission distance can reach more than 30 kilometers (open environment);
External dual-polarized antenna, free to change the antenna according to the use scenario;
The maximum number of connections supports 128;
Support software current limiting function, uplink and downlink transmission rate can be manually set;
Transmission power is adjustable, up to 30dBm;
Outdoor waterproof, dustproof, anti-corrosion design, waterproof class IP67;
Support DC12-24V wide voltage POE power supply.
Application:
It is widely used in big data trunk transmission sites such as bridge between operator base stations and base stations, forest fire prevention, safe cities, road monitoring, oil fields, and port terminals.
Specification parameter | ||
Standard protocol | Supports IEEE 802.11a/n/ac protocol | |
Modulation technique | OFDM | |
Operating frequency | 4900-6100MHz | |
Transmission rate | 867Mbps | |
Transmitting power | Up to 30dBm, support software adjustment | |
Antenna type | Built-in 25dbi directional antenna | |
Receiving sensitivity | Transmission rate | Receiving sensitivity (dBm) |
6Mbps | -96 | |
54Mbps | -74 | |
MCS0 | -96 | |
MCS9 | -72 | |
Transmission distance | >30km | |
Hardware | ||
Internal memory | 64MB | |
Flash memory | 16MB | |
Port | ||
Network interface | One 10/100M/1000M Gigabit Ethernet port | |
System management | ||
Management mode | Supports multi-language interface, WEB, Telnet, and SSH management | |
Reset management | Hardware/software reset is supported | |
Feature | ||
Network function | WDS, PPTP, L2TP, IPsec, DHCP client, server, NAPT, NTP, VLAN Settings | |
Working mode | Access point/site/wireless client | |
Channel bandwidth | 5,10, 20, 40, 80 MHz | |
Modulation mode | 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) | |
Configuration management | Web-based management tools, CPE built-in WEB server/Remote Firmware Upgrade (HTTP) | |
Network tool | Network detection signal scanning/built-in spectrum analyzer/built-in antenna calibration function/built-in watchdog function | |
Network protection | Firewall/Support network speed limiting function, uplink and downlink transmission rates can be set/MAC address-based access control | |
Signal light | Signal light indicator, power supply, network port interface, working status, signal strength indicator | |
Fault diagnosis | Supports Telnet connection/syslog system run logs/automatically detects network status. Automatically reconnects to the network after disconnection | |
Secure | ||
Wireless function | Peripheral Site Detection/Channel Scan/Priority AP Connection Setting Binding (BSSID) automatic channel selection function | |
Encryption mode | WEP, TKIP, AES; Open system, shared key WPA/WPA-PSK, WPA2/WPA2-PSK; 802.1 x (PEAP, TLS, TTLS) WAPI | |
Authentication function | WEB account/password, PPPOE access authentication Routing mode, client instead of all terminals authentication Bridge mode, all terminals need to be authenticated independently Multiple users perform portal authentication independently | |
MAC filtering | Bidirectional binding MAC address authentication communication | |
Environmental and physical properties | ||
Class of protection | IP67 | |
Operating temperature | -40℃～+75℃ | |
Storage temperature | -50℃～+80℃ | |
Working humidity | 10% ~ 90% (non-condensation) | |
Surge protection | Common mode (DM) 6KV/ Differential mode (CM)2KV | |
Electrostatic protection | 8KV (contact) 16KV (air) | |
Air permeability | 210ml/min/cm²(pressure difference =70mbar) | |
Power supply | ||
POE power supply | DC12 to 24V POE power supply | |
Power dissipation | ≤10W | |
Physical indicators | ||
Size (L*H*W) | 370mmx370mmx105mm | |
weight | 3.1kg (net weight) | |
Operating system support | Windows 2000/XP/Vista/Windows 10 | |
Keep under warranty | 1year | |
