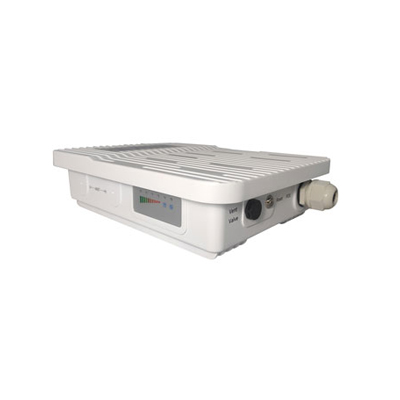

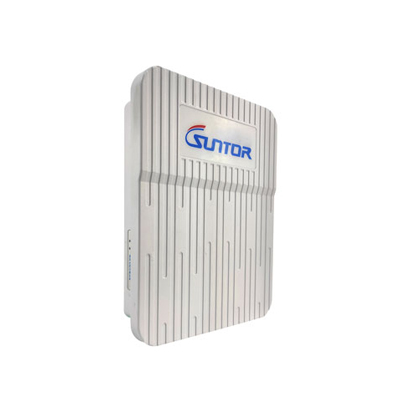

Model: ST5818G-N
ST5818G-N series is an outdoor high-bandwidth wireless communication transmission device in line with 802.11AC standard, which adopts Qualcomm 9563CPU (750Mhz) and Qualcomm 9882 radio frequency module, 64MBytes memory and 16MBytes flash memory. The powerful hardware configuration makes this device have the advantages of long transmission distance, high transmission rate, and strong stability of long-term big data transmission.
Product Details

Product Introduction:


ST5818G-N Wireless Bridge is an outdoor high-bandwidth wireless communication transmission device in line with 802.11AC standard, which adopts Qualcomm 9563CPU (750Mhz) and Qualcomm 9882 radio frequency module, 64MBytes memory and 16MBytes flash memory. The powerful hardware configuration makes this device have the advantages of long transmission distance, high transmission rate, and strong stability of long-term big data transmission.

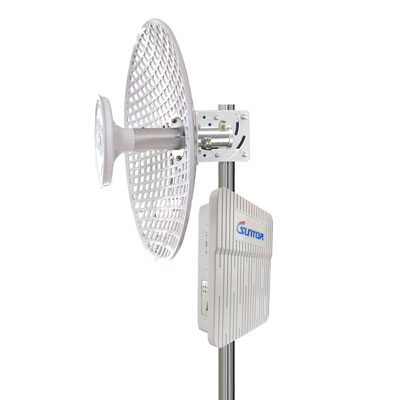

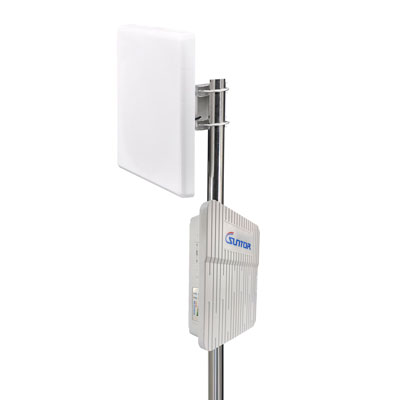

ST5818G-N can be equipped with various high-gain directional antennas according to different field requirements, and the transmission distance can reach more than 20 kilometers under line-of-sight conditions. At 10 kilometers, the transmission rate can be maintained at 350Mbps (with the measured data of 25DB flat antenna, the transmission rate of higher gain antenna will be larger), and the measured transmission rate can reach 867Mbps in the state of short-range signal saturation, which fully meets the big data transmission of various main lines, and solves the problem of ordinary wireless bridge due to insufficient bandwidth during transmission. It causes problems such as image delay, data loss, and crash during long working hours.




Product Features:


  • The system supports multi-language operation interfaces such as Chinese, English, Spanish, Portuguese, and Hungarian;

  • The system supports the environment survey function. Before installation and deployment, you can scan the surrounding wireless signal status.

  • The system supports antenna calibration function to improve signal quality;

  • Support spectrum analysis function, which can scan the spectrum of the signal within the working range and display it graphically;

  • Channel selection (frequency) support manual and automatic selection;

  • Power adjustment supports manual and automatic functions;

  • The software system supports IPv4 and IPv6;

  • Support audio and video, data stream priority control;

  • The system supports the spanning tree protocol and VLAN ID division;

  • Transmission distance up to 20 km or more (open environment);

  • External dual-polarized antenna, free to change the antenna according to the use scenario;

  • The maximum number of connections supports 128;

  • Support software current limiting function, uplink and downlink transmission rate can be manually set;

  • Transmission power is adjustable, up to 30dBm;

  • Outdoor waterproof, dustproof, anti-corrosion design, waterproof class IP67;

  • Support DC12-24V wide voltage POE power supply.




Application:

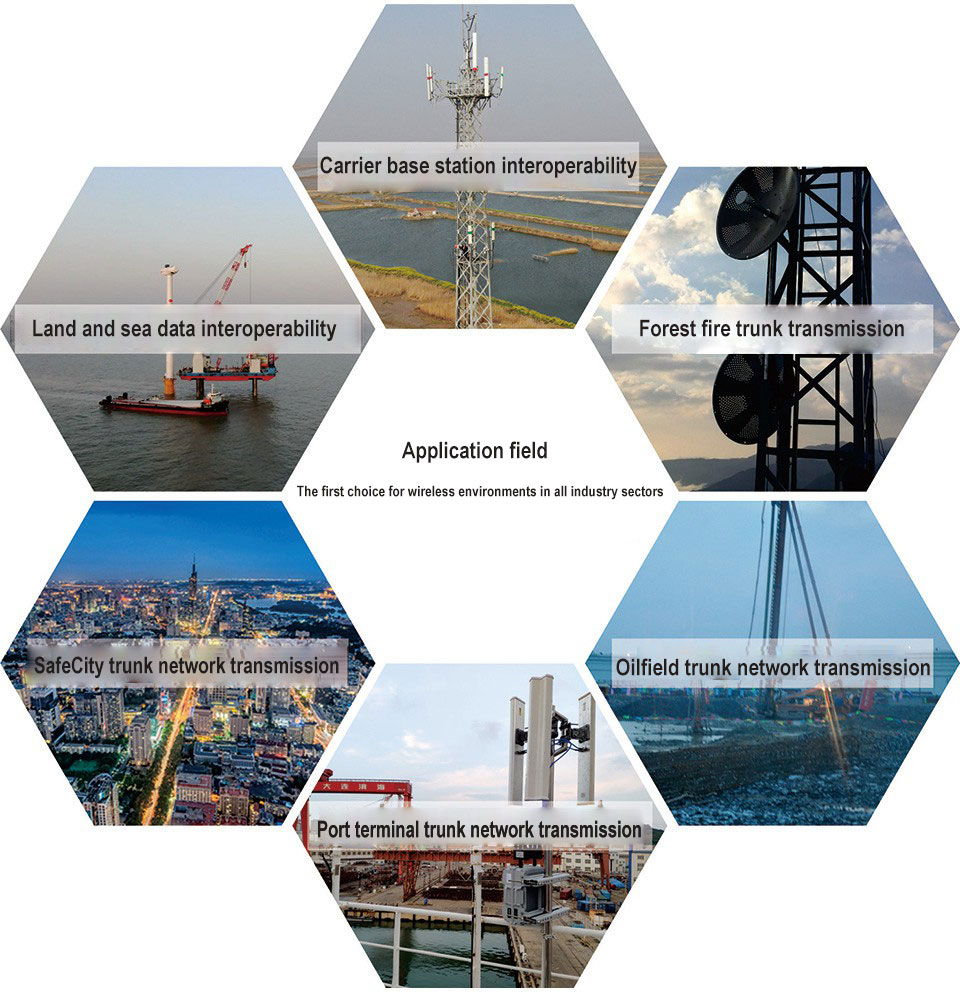

The equipment is widely used in the bridge between the operator base station and the base station, forest fire prevention, safe city, road monitoring, oil fields, ports and other big data trunk transmission sites.






Specification  parameter

Standard  protocol

Support  IEEE 802.a/n standard

Modulation  technique

OFDM

Operating  frequency

4900-6100MHz

Transmission  rate

867Mbps

Transmitting  power

Up to 30dBm, support software adjustment

Antenna  type

MIMO*2, external dual polarization

Antenna  gain

Omnidirectional,  large Angle, flat plate, directional antenna arbitrary collocation

Receiving  sensitivity

Transmission  rate

Receiving  sensitivity (dBm)

6Mbps

-96

54Mbps

-74

MCS0

-96

MCS9

-72

Transmission  distance

>20km

Hardware

Internal  memory

64MB

Flash  memory

16MB

port

Network  interface

One 10/100M/1000M Gigabit Ethernet port

Radio  frequency interface

Type N  (female head) *2

System  management

Management  mode

Supports  multi-language interface, WEB, Telnet, and SSH management

Reset  management

Hardware/software reset is supported

Feature

Network  function

WDSPPTPL2TPIPsecDHCPClientServerNAPTNTPVLANSettings

Working  mode

Access point, site, wireless client mode

Channel  bandwidth

5MHz,10MHz,20MHz,40MHz,80MHz

Modulation  mode

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Configuration  management

Web-based management tools, CPE built-in WEB server/Remote Firmware Upgrade (HTTP)

Network  tool

Network detection  signal scanning/built-in spectrum analyzer/built-in antenna calibration function/built-in watchdog function

Network  protection

Firewall/Support  network speed limiting function, uplink and downlink transmission rates can be set/MAC address-based access control

Signal  light

Signal light indicator, power supply, network port interface, working status, signal  strength indicator

Fault  diagnosis

Supports Telnet connection/syslog system run logs/automatically detects network  status. Automatically reconnects to the network after disconnection

secure

Wireless  function

Peripheral Site Detection/Channel Scan/Priority AP Connection Setting Binding (BSSID)  automatic channel selection function

Encryption  mode

WEP, TKIP,  AES; Open system, shared key WPA/WPA-PSK, WPA2/WPA2-PSK; 802.1 x (PEAP, TLS,  TTLS) WAPI

Authentication  function

WEB account/password, PPPOE access authentication Routing mode, client instead of all terminals authentication Bridge mode, all terminals need to be  authenticated independently Multiple users perform portal authentication  independently

MAC  filtering

Bidirectional  binding MAC address authentication communication

Environmental  and physical properties

Class of  protection

IP67

Operating  temperature

-40+75

Storage  temperature

-4080

Working  humidity

10% ~ 90%  (non-condensation)

Surge  protection

Common  mode (DM) 6KV/ Differential mode (CM)2KV

Electrostatic  protection

8KV (contact) 16KV (air)

Air  permeability

210ml/min/cm²(pressure  difference =70mbar)

Power  supply

POE power  supply

DC12 to 24V POE power supply

Power  dissipation

≤10W

Physical  indicators

Size  (L*H*W)

270mm*270mm*70mm

weight

1.9Kg (net weight)

Operating  system support

Windows 2000/XP/Vista/Windows 10

Keep under  warranty

1 year
