Product Introduction:

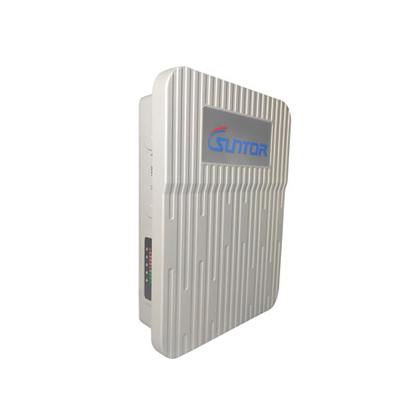

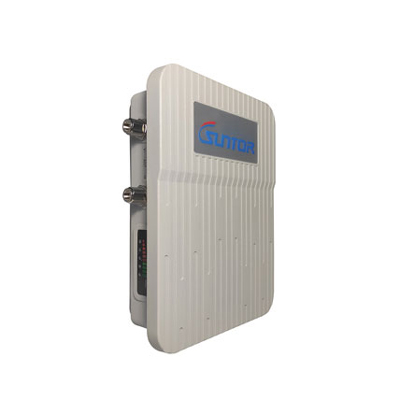

ST5801GB-M wireless bridge adopts advanced MESH design concept, does not require a central gateway, any one can realize the function of self-group network, in the group of any device disconnected, in the effective antenna coverage range will have the corresponding device continue to communicate, to ensure that the network does not drop. In practical applications, ring network design can be adopted without worrying about the problem of ring network blockage. At the same time, in addition to the wireless side of the product with mesh function, its two wired network ports also have mesh function, in the actual application environment can be selected according to the need to use, very flexible and convenient. The multi-mode MESH also has the support function, which can ensure better connection quality in complex environments.

The ST5801GB-M Ad-hoc network system is applicable to different scenarios. It can be installed at fixed points, or in places where moving vehicles, ships, personnel, robots, drones, and unmanned ships can be rapidly deployed wirelessly. The product software module integrates the functions of base station communication, client communication, point-to-point bridge communication and MESH Ad-hoc network communication.

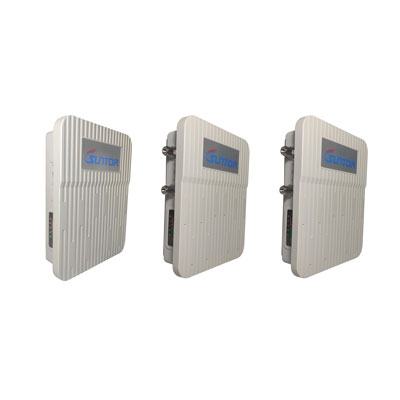

ST5801GB-M Ad-hoc network system is mainly composed of ST5801GB-M series products; Up to three mode design can be adopted, with three RF module design on the same motherboard, which can be more flexible in practical applications, and can be selected according to needs: ST5801GB-M3, ST5801GB-M2, ST5801GB-M1.

ST5801GB-M series products can be customized according to the needs of high-power equipment, the transmission power can be increased to 3W, in high-power applications, without attenuating the transmission throughput. Corresponding models: ST5801GB-G1, ST5801GB-G2, ST5801GB-G3. Provide appearance and function customization service, easy to be used in vehicles, ships, drones and other scenarios.

Product Features:

• No centralized Ad-hoc network

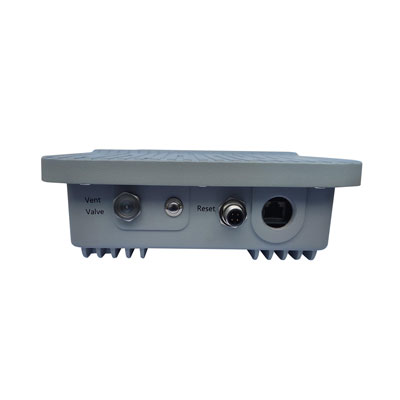

• Both wireless channels and wired network port channels support the mesh function

• Same frequency mesh networking

• Bridge and MESH networking

• Multiple bandwidth modes to meet the needs of different environments

• Customizable frequency drift function

• Multi-mesh and multi-mode design

• GPS positioning function

• This page supports operations in both Chinese and English

• Multiple communication modes (MESH networking mode).

Application:

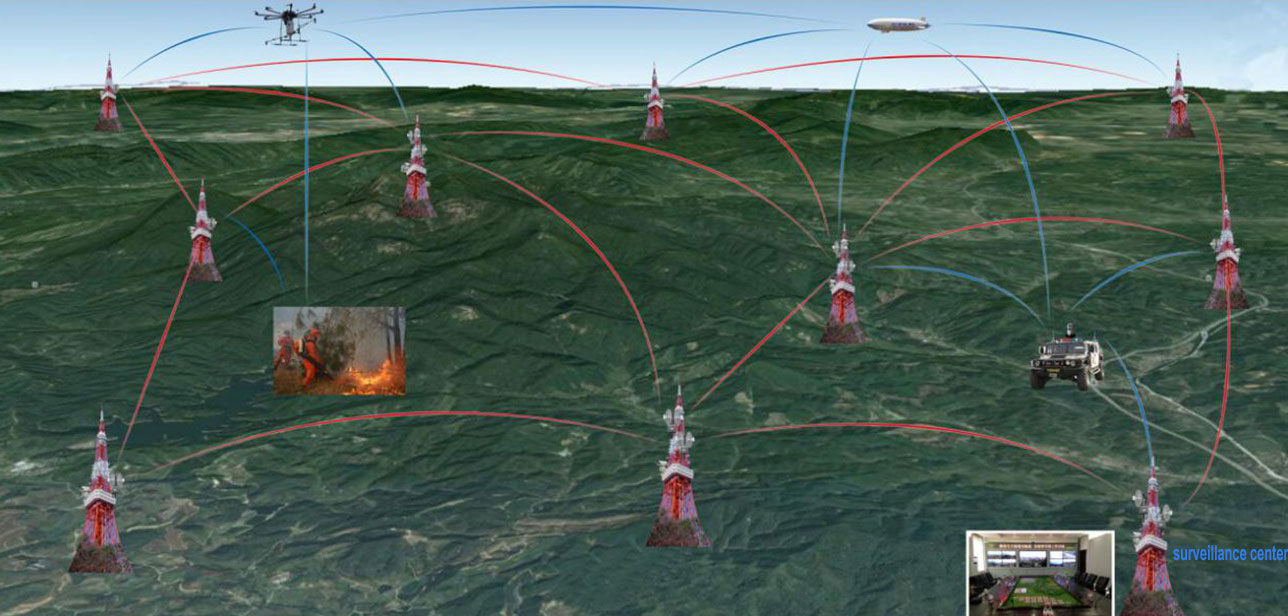

The ST5801GB-M Ad-hoc network system is applicable to different scenarios. It can be installed at fixed points, or in places where moving vehicles, ships, personnel, robots, drones, and unmanned ships can be rapidly deployed wirelessly. The product software module integrates the functions of base station communication, client communication, point-to-point bridge communication and MESH Ad-hoc network communication.
