Product Introduction:

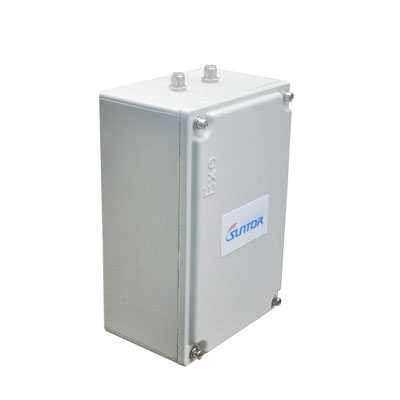

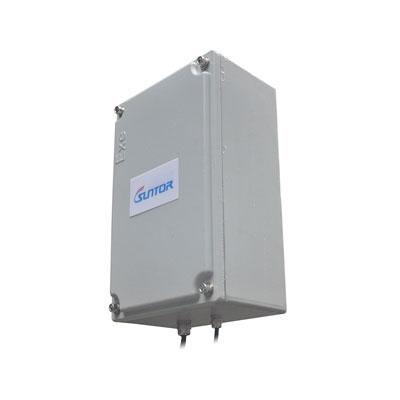

ST58T8G-FB series high power explosion-proof wireless bridge, with the Ministry of Industry and Information Technology certification of radio transmission equipment type approval certificate, and has a formal explosion-proof certificate. Fully enclosed metal structure design, with explosion-proof, dustproof, salt spray, corrosion and other functions. It is widely used in some special dangerous places such as mine tunnel, large oil field, chemical industry area and natural gas station.

ST58T8G-FB uses an external antenna interface and can be equipped with different antennas according to user requirements to meet various wireless network connection services in harsh field environments. In some special environments, it provides high-bandwidth network connection services and multimedia IP data transmission requirements, which is not only suitable for trunk network transmission but also for large-scale IP monitoring networks.

ST58T8G-FB high power outdoor wireless bridge device supports base station mode, point-to-point bridge mode, user station mode, different modes can achieve different effects, can do point-to-point transmission, point-to-multipoint transmission, automatic roaming switch transmission. Support 5MHz, 10MHz, 15MHz,20MHz, 30MHz, 40MHz, 52MHz various bandwidth modes, to meet different network transmission requirements.

Product Features:

• Explosion-proof properties: explosion-proof, dust-proof, water-proof, salt-spray proof, anti-corrosion, etc;

• Strong anti-interference ability: software detection of field RF signals and sufficient frequency resources improve anti-interference ability, and have better performance in complex electromagnetic environments;

• Support a variety of operating modes: base station mode/user station mode/bridge mode/roaming mode;

• Fast roaming switch function: realize the fast roaming switch function between a mobile client and multiple fixed base stations;

• Stable transmission rate: Support point-to-point, point-to-multipoint transmission, the maximum transmission rate of 100Mbps;

• English and Chinese interface operation: Support Chinese and English interface operation;

• Support wireless signal scanning: support tools to scan peripheral frequency points, convenient for engineering personnel debugging and installation;

• Power adjustable: transmission power adjustable, up to 27dBm;

• 7 kinds of working bandwidth: 5MHz, 10MHz, 15MHz,20MHz, 30MHz, 40MHz, 52MHz, easy to use flexibly in different working environments;

• There are 13 adjustment modes for device power Settings, including the power adaptive adjustment mode;

• Support manual coordinate position positioning function: guests can enter the real-time coordinate position of the device in the device;

• Support online map display function: can display the different position status and connection status of online devices on the map;

• Wide voltage operation: Support DC12 ~ 24V POE power supply mode;

• Customized development: Support product appearance customized development, tailored according to different use environments, to meet user needs;

Application:

ST58T8G-FB series high power explosion-proof network bridge, the use of fully enclosed metal structure design, with explosion-proof, dust, salt spray, corrosion and other functions. It is widely used in some special dangerous places such as mine tunnel, large oil field, chemical industry area and natural gas station.
