Product Introduction:

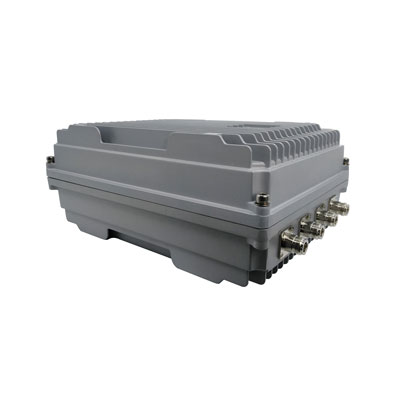

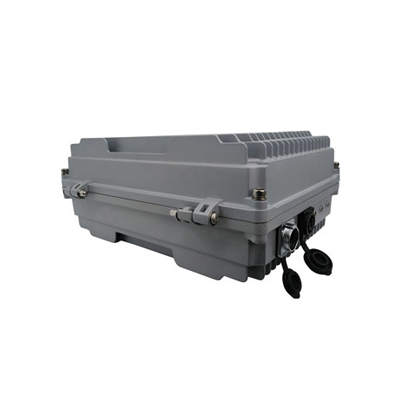

ST5801GB-G wireless bridge, which can be fixed by pole, wall hanging and bracket, is mainly deployed in outdoor fixed points and ship mobile points, waterproof and dust-proof, easy installation and simple operation, without supporting equipment room facilities and transmission network support. The device has large transmission power and long communication distance. It integrates data sending and receiving, dynamic routing, relay and forwarding, and audio and video coding. Together with other node devices, it quickly forms a wireless multi-hop broadband network to provide users with wireless transmission services for voice, data, video and other multimedia services. It is especially suitable for application scenarios such as remote coverage link communication, information aggregation and return, area coverage support, commanding height enhancement coverage and relay relay transmission node. The transmission power of the device can reach 3W (35dBm), and the transmission distance of the device can reach more than 100km between the point and the point, and the fixed point and the moving point can reach more than 30km.

Adopt unique software application design, networking design does not need a central gateway, any one can realize the function of self-group network, in the group of any device dropped, in the effective coverage of the antenna will have the corresponding device continue to communicate, to ensure that the network does not drop. The system has four communication modes: base station mode, user station mode, one-to-one bridge mode, mesh AD hoc network mode; At the same time, the device also supports roaming networking function, so that the terminal equipment can switch freely between different base stations. A variety of modes are free to combine and match communication, and the networking is more flexible and stable.

Product Features:

• With a long coverage distance, it can be used not only as a long-distance coverage communication node, but also as a commanding height to enhance the coverage node, further enhance the system's regional coverage capability and extend the coverage distance;

• Flexible application, no center distributed networking, carrier bandwidth flexible and configurable, support any network structure, flexible networking;

• With 16 kinds of working bandwidth, users can set different bandwidth according to the field electromagnetic environment and actual needs; (/ 3.5/2.5/3 4/5/6/7/8/10 12/14/15/20/30/40/52 MHZ), the user can choose according to the need, the higher the rate of bandwidth, the more wide, the narrower the bandwidth of anti-interference, the better;

• Long transmission distance, support 110km wireless transmission at 10MHz bandwidth (typical value);

• Support custom development, support customers available working band custom development;

• With the frequency drift function (this function needs to be customized), it means that the frequency can be shifted to a certain range according to the need, so that the device can avoid the existing rules within the legal range, different from the conventional frequency point. Such as: The conventional frequency of a device is 5725MHz, when using 20MHz bandwidth, then its range is in the frequency range of 5715 ~ 5735MHz, then if you choose drift, if you set the drift of 4MHz, the frequency becomes 5729MHz, then the range becomes 5719 ~ 5739MHz, the frequency is different from the frequency of other equipment, Anti-interference is enhanced.

• Interconnection, the equipment adopts all-IP design, supports the transparent transmission of all kinds of data, and is easy to interconnect with heterogeneous communication systems, so as to better achieve multi-network integration communication;

• High reliability, the equipment adopts navigation interface, IP68 protection grade, wide working temperature zone, capable of outdoor all-weather harsh working environment;

• Simple and economical, under the premise of ensuring the power supply of the equipment, the equipment is not restricted by cable supporting such as optical fiber and copper cable, no need to dig trenches and dig walls, Pierce pipes and wires, the construction investment is small, the difficulty is low, the cycle is short, one-time investment, low-cost fixed network construction, and there is no link or traffic rental cost in daily use

• Convenient operation and maintenance, the device adopts efficient dynamic routing mechanism, does not require any complex system configuration, friendly man-machine management, real-time monitoring, GIS map, remote software upgrade/configuration/hot restart and other functions. The device has a communication status indicator, and the signal quality at both ends can be judged according to the indicator status;

• Support power adaptive adjustment, different distance can adjust the power linearity according to the signal quality;

• Support onboard RS232 data communication function, support two-way high-speed data transmission. Rate support: 115200/57600/38400/19200/9600;

• It has the communication mode of base station mode, customer station mode, bridge mode and mesh AD hoc network mode.

• With roaming function, you can freely and seamlessly switch between different base stations;

• Mesh working mode has 5 different working modes, allowing users to choose different functions in different scenarios;

• There are 13 adjustment modes for device power Settings, including power adaptive adjustment mode.

• No centralized AD hoc network can realize mutual communication in the group network. No core device is required in the network. If any device goes offline, it can be connected to other devices in the network immediately.

• Support mesh communication function of wired network port, so that wired port to achieve mesh routing node function;

• The device management interface supports the graphical path information of the route passed by two endpoints.

• mesh route selection supports automatic selection or set the number of hops, which can be set by the user according to the site layout (If automatic is selected, the device will select the number of path hops to the target address according to the network quality. If the number of hops is fixed, the device will not consider the line quality first, but prioritize the number of hops to reach the target address. Users can set their own according to the site signal quality and environment);

• The software supports 8 different wireless profiles to be preset in advance. Base station mode, user station mode, bridge mode, mesh mode, and different frequencies and parameters can be preset in advance, and different scenarios can be quickly switched.

Application:

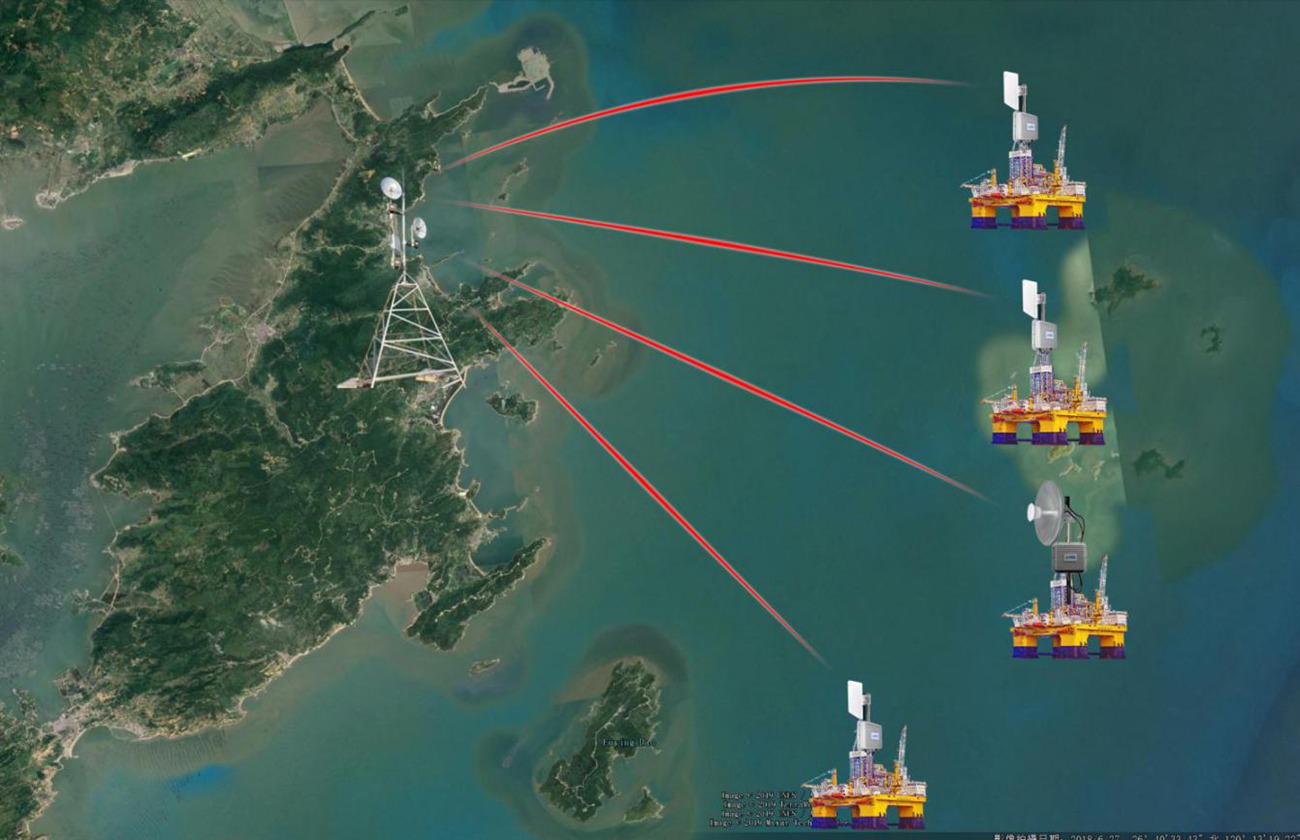

Products can be widely used in forest fire prevention, primary forests, rivers and lakes, mining areas, drones, robots, pipelines, large industrial areas, roads, power plants, electricity, fire, public security, vehicles, shipping law enforcement and other fixed points and mobile point monitoring.
