Product Introduction:

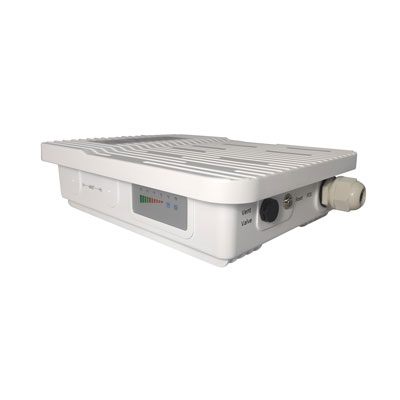

ST5816H-N carrier-grade long-distance wireless bridge can be equipped with various high-gain antennas according to different site requirements to achieve effective network connection and data transmission between two long-distance nodes, the transmission distance can reach more than 20km, and the transmission rate can reach more than 60-80Mbps at 20km (visual environment transmission). It can provide wireless transmission quality equal to the quality of wired network.

Waterproof, dustproof, salt spray proof design, waterproof level up to IP67, especially suitable for the field of harsh environment of wireless network connection services, to provide deployment of enterprise, industrial users of high-bandwidth network connection and multimedia IP data transmission needs, not only suitable for network transmission and large-scale IP monitoring needs.

The system interface of the equipment supports multi-language operation such as Chinese and English, and the system has a variety of intelligent wireless network detection and debugging tools, such as spectrum monitor, antenna calibration tool, link detection function, and watchdog function. Users can investigate the surrounding wireless electromagnetic interference, troubleshoot the cause of on-site failure, and select the best wireless channel transmission through the intelligent detection tool of the system during installation and debugging. Make the whole transmission system link more stable. When the equipment is working at full load, the power consumption is less than 10W. In the case of no mains power in the field, it can be flexibly combined with battery, solar energy, wind energy and other power supply methods.

Product Features:

• The system supports multi-language operation interface such as Chinese, English, Spanish, Portuguese and Hungarian;

• The system supports the environment survey function. Before installation and deployment, you can scan the surrounding wireless signal status;

• The system supports antenna calibration function to improve signal quality;

• Support spectrum analysis function, which can scan the spectrum of the signal within the working range and display it graphically;

• Channel selection (frequency) support manual and automatic selection;

• Power adjustment supports manual and automatic functions;

• The software system supports IPv4 and IPv6;

• Support audio and video, data stream priority control;

• The system supports the spanning tree protocol and VLAN ID division;

• Transmission distance up to 20 km or more (open environment);

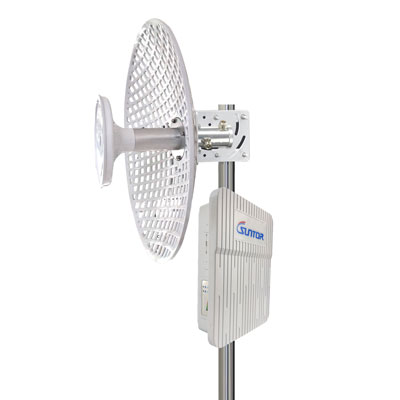

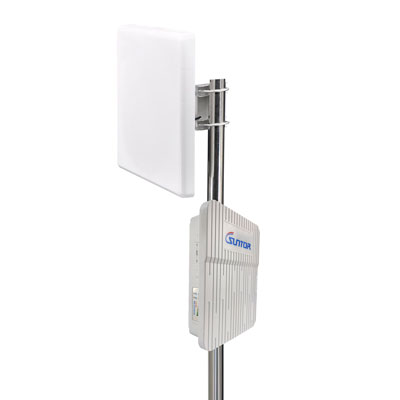

• External dual-polarized antenna, free to change the antenna according to the use scenario;

• The maximum number of connections supports 128;

• Support software current limiting function, uplink and downlink transmission rate can be manually set;

• Transmission power is adjustable, up to 29dBm;

• Outdoor waterproof, dustproof, anti-corrosion design, waterproof class IP67;

• Support DC12-24V wide voltage POE power supply.

Application:

The wireless network connection service is suitable for harsh field environments, providing high-bandwidth network connection and multimedia IP data transmission requirements for deploying enterprises and industrial users, which is not only suitable for network transmission but also suitable for large-scale IP monitoring requirements.
