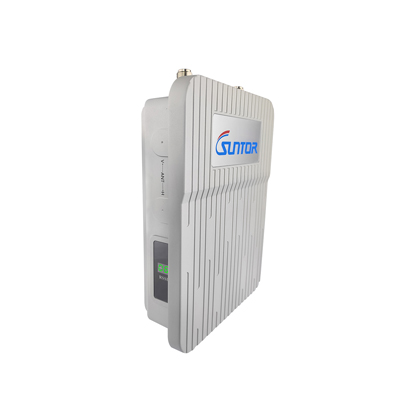

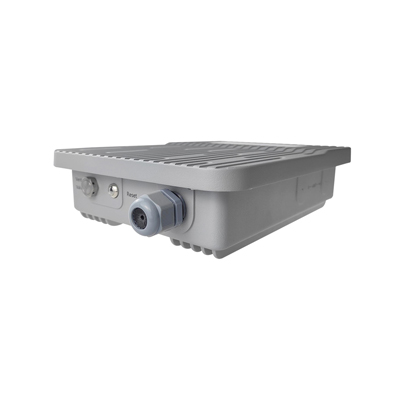

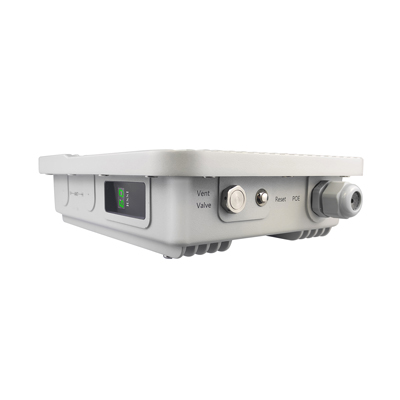

Model: ST5850N
ST5850N is a very excellent long-distance microwave wireless transmission equipment, the measured data 50km up to 70Mbps, 21km up to 110Mbps data rate. The equipment power is 27dBm, the power supply voltage is 48V POE power supply (standard 802.11at specification), the working temperature supports -40℃~70℃, the shell design is IP66 standard, waterproof, dustproof, anti-oil, anti-dew, fog, the structure is designed with the internal and external pressure balance function, which improves the reliability of the product in the harsh environment.
Product Details

Product Introduction:


ST5850N wireless bridge software design uses TDMA+ polling outdoor video and data transmission wireless protocol, stronger anti-noise, can intelligently allocate time slots to each terminal device, eliminating the traditional 802.11 network there is a hidden node, low throughput problem. The device avoids conflicts in time slot allocation. This ensures that the device can poll each terminal and allocate a time gap to each terminal. In this way, possible conflicts can be avoided during transmission from terminals to access points. By checking the status of each client, using algorithms to check the activity of terminal devices and the type of services performed, the algorithm intelligently allocates time slots to each terminal to maximize efficiency, avoid wasting transmission time, and always maintain the best transmission efficiency. The special switch designed in the software kernel can effectively reduce the noise interference from the surrounding signal, effectively prevent or reduce the interference signal, and achieve better and more stable throughput and delay in the signal congestion area.


The device can be equipped with different antennas to achieve different transmission effects.





Product Features:


  • Support long-distance transmission applications, ≥50km;

  • Support 802.11at standard 48V POE power supply;

  • Support harsh environment work;

  • Supports automatic frequency adjustment;

  • Support power adaptive;

  • Support TDMA (Time Division Multiple Access);

  • Supports point-to-point and point-to-multipoint networking;

  • Surge prevention: common mode 4kv, differential mode 2kv;

  • Anti-static: contact discharge 4kv, air discharge 6kv;

  • Support dynamic channel selection, can better eliminate noise interference.;

  • The software protocol supports transmission in complex environment and has strong anti-interference ability;

  • With frequency expansion function, customers can choose according to the actual site;

  • Support QOS intelligent optimization technology, priority voice, video stable transmission.

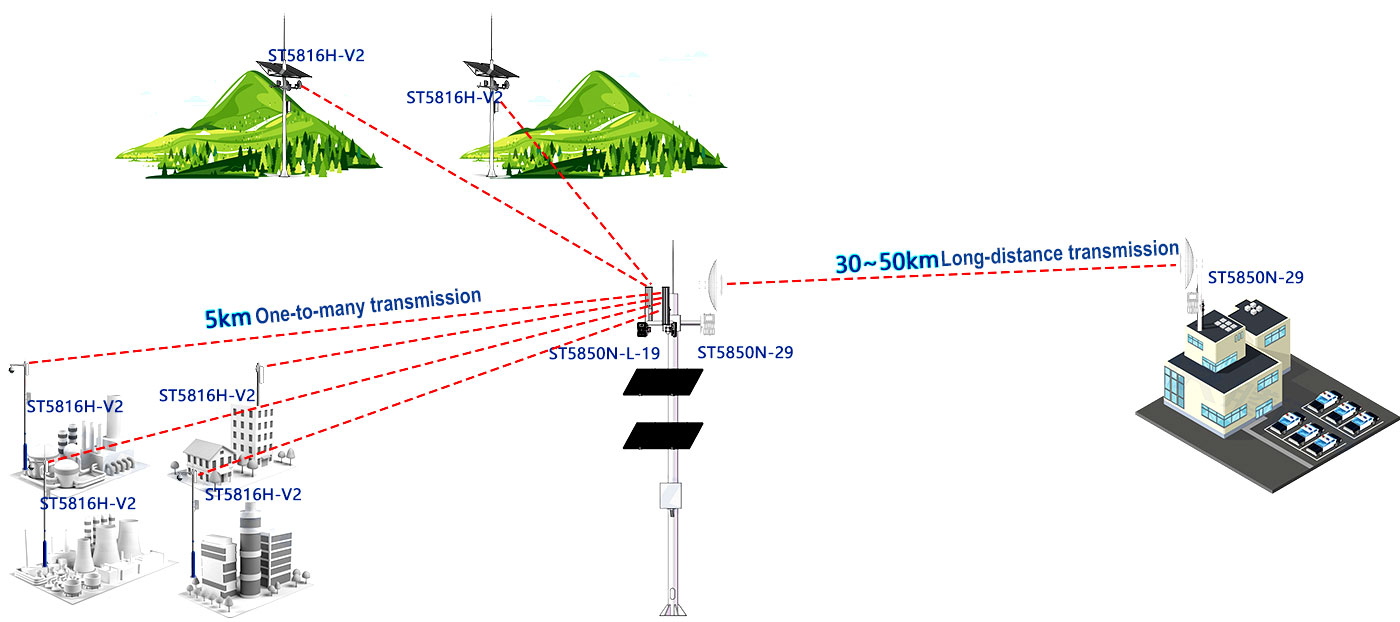

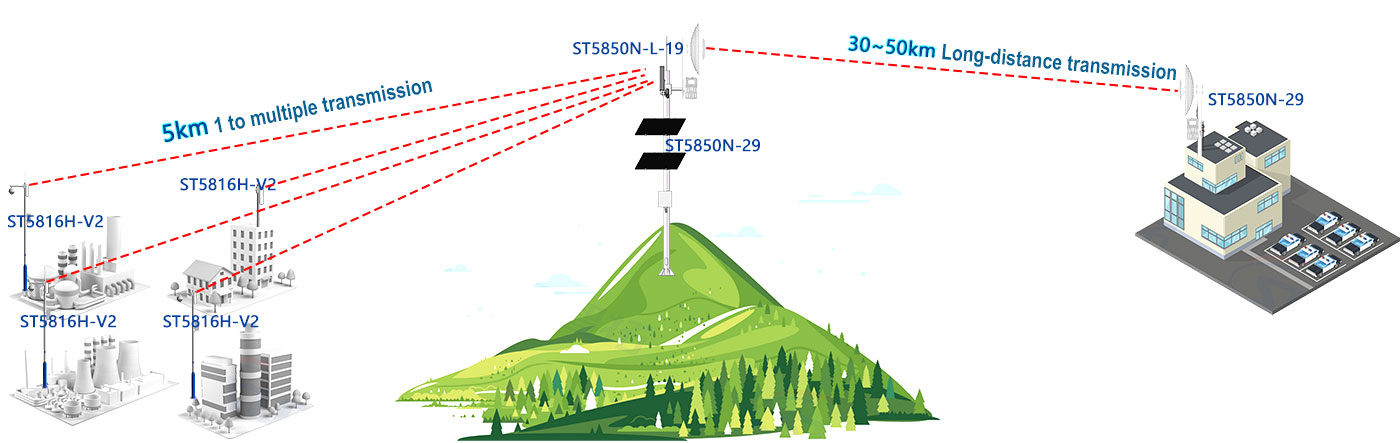

Application:

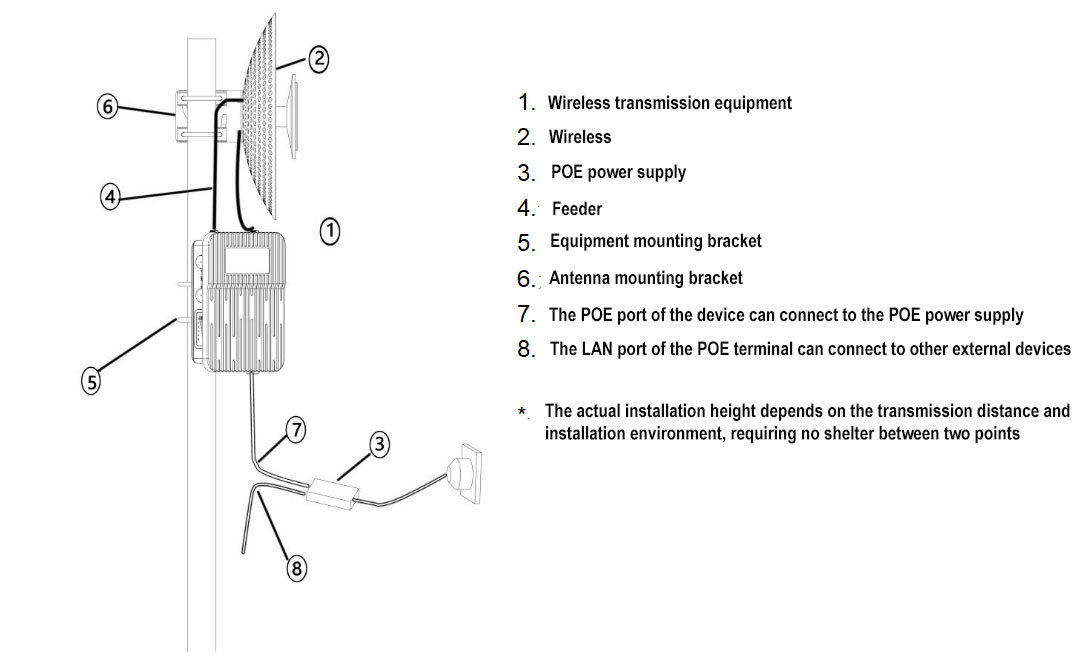

Diagram:






Software specification

Standard  protocol

Supports  the 802.11an standard

Operating  frequency

5180~5320MHz5845~5825MHz(China)

5180~5320MHz5500~5720MHz5745~5825MHz(America)5160~5340MHz5480~5720MHz5745~5865MHz(India)

5160~5340MHz5480~5720MHz5745~5825MHz(The United Arab Emirates)

5745~5805(Indonesia)

Spread spectrum: 4920~6100MHz (use must comply with local  laws and regulations)

* The above frequencies need to be applied for separatel

Working  mode

Access  Point, client, WDS Access Point, WDS client

Safe mode

WPA2-PSK, hide SSID, IP/MAC filtering

Network  mode

Bridge mode and routing mode

Configuration  mode

Supports web configuration, AC remote management, and SNMP management

VLAN

support

QOS

support

Timed  restart

support

Guard dog

support

Hardware  specification

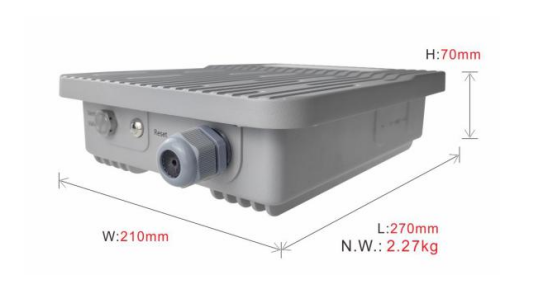

dimension

270*210*70mm

weight

2.27kg

Class of  protection

IP66

Power  supply mode

48V POE power supply (standard 802.11at specification)

Maximum  power consumption

15W

Average  power consumption

12W

Internal  memory

64MB

Flash  memory

8MB

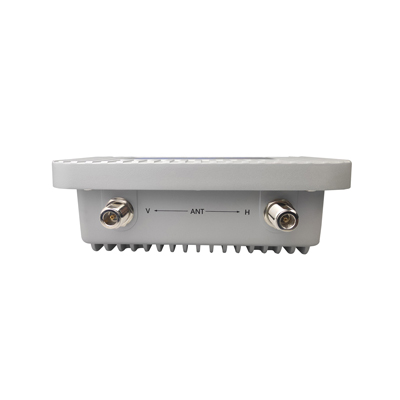

Radio  frequency interface

Type 2*N  connector

Transmitting  power

27dBm*2

Network  interface

RJ45*1(10/100/1000Mbps)

Operating  temperature

-40~70

Storage  temperature

-40~85

Working  humidity

5% to 95%RH does not condense

Surge protection

POE/GE: common mode 4kv, differential mode 2kv

Electrostatic  protection

Contact discharge: 4kv, air discharge: 6kv
