Hybrid Terminal & Two-way Radio

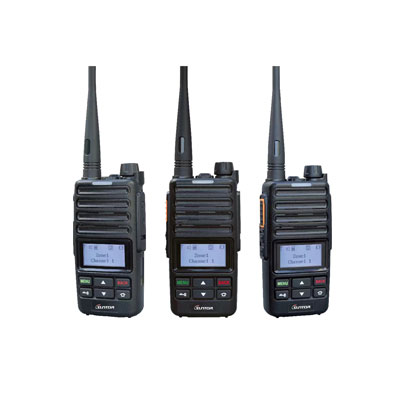

TH426 DMR Radio
TH426 DMR Radio
TH426 DMR Radio
TH426 DMR Radio
Model: TH426
Walkie-talkie adopts digital voice confidentiality technology, encrypting the voice signal by inputting the writing frequency password. So as to achieve communication confidentiality, anti-thousand interference, strong penetration, clear sound quality, high power, long-distance call effect.
Product Details

Product Introduction:


Walkie-talkie adopts digital voice confidentiality technology, encrypting the voice signal by inputting the writing frequency password. So as to achieve communication confidentiality, anti-thousand interference, strong penetration, clear sound quality, high power, long-distance call effect.




Product Features:


  • Single call, group call, all call;

  • Auto Scan;

  • voice-activated;

  • electric hand torch;

  • Battery saving tips;

  • Backlight Adjustment;

  • Microphone level adjustment;

  • time-limited launch;

  • High and low power options;

  • PC Write Frequency Protection;

  • Offline;

  • CTCSS/DCS codecs;

  • restore the factory;

  • Cloning, replication;

  • Regional Selection;

  • 8 hours of recording time (optional);






General Specification

Frequency  range

400-470MHz

Fhannel  capacity

1024

Frequency  stability

±1ppm

Operating  temperature

-30~+60

Operating  voltage

7.4DC

Body  size

117×55×34mm

Weight

216g

Acceptance

Digital  Receiving Sensitivity

0.25uV(BER:5%)

Intermodulation

-60dB

False  response

70dB

Audio  Responses

+1~-3dB

Audio  distortion

5%

Audio  power

1W

FM  noise

45Db@25KHz

40dB@12.5KHz

Transmitter

RF  power

4W

Response  current

Digital0.9A

Generation  of standby current

0.18A

FM  modulation

11K0F3E@12.5KHz

14K0F3E@20KHz

16k0F3E@25KHz

4FSK  digital modulation

12.5KHz  data-only:7k6FXD

12.5KHz  data and voice:7K60FXW

Modulation  loss

5%

Modulation  noise

45Db@25KHz/-40dB@12.5KHz

Leading  power

-60dB@12.5KHz

Audio  response

+1~-3dB

Antenna  Port Spurious

9KHz-1GHz:  -36dBm

1GHz-12.75GHz:  -30dBm

Digital  protocols

ETSI-TS102  361-1,-2,-3
