As a product built to the International standard, M1Pro is endowed with ergonomic design, all-round digital functions and remarkable quality. These features improve your management efficiency enable you to be responsive to emergent situations.

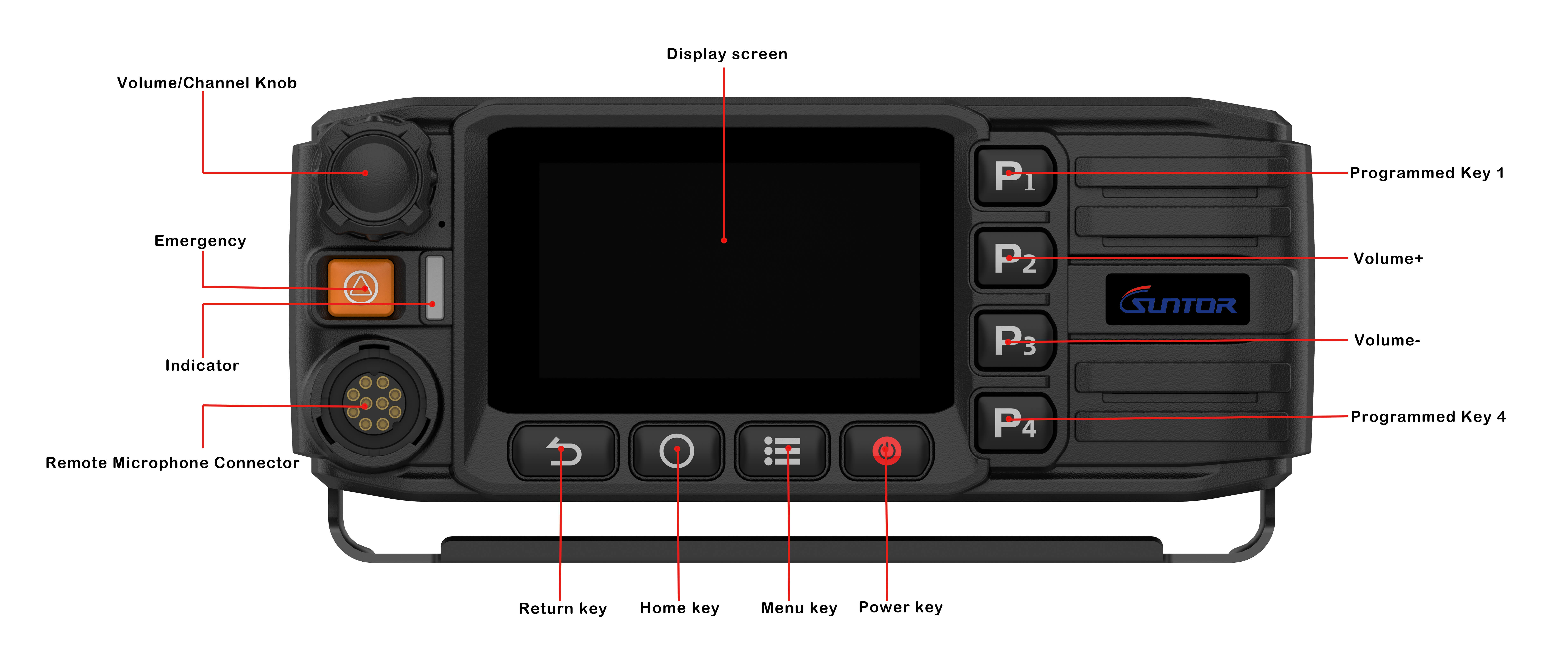

Product Introduction
Large size HD Transflective Color Display
Superior Digital VoiceErgonomics Buttons
Circular Mobile Microphone Connector
Volume & Channel Switch 2in1 Knob
Multi-point Touch Pannel
5W Audio Output Speaker
Product Features
Versatile Voice Calls: M1Pro supports various voice call types, including Private Call, Group Call, All Call and Emergency Call.
Positioning Service: M1Pro can display positioning information and transmit positioning messages.
Data Services: M1Pro can send private and group text message. The third party application can control the radio via API(GPS, Radio Registration Services, Call Control Telemetry, Data Transfer)

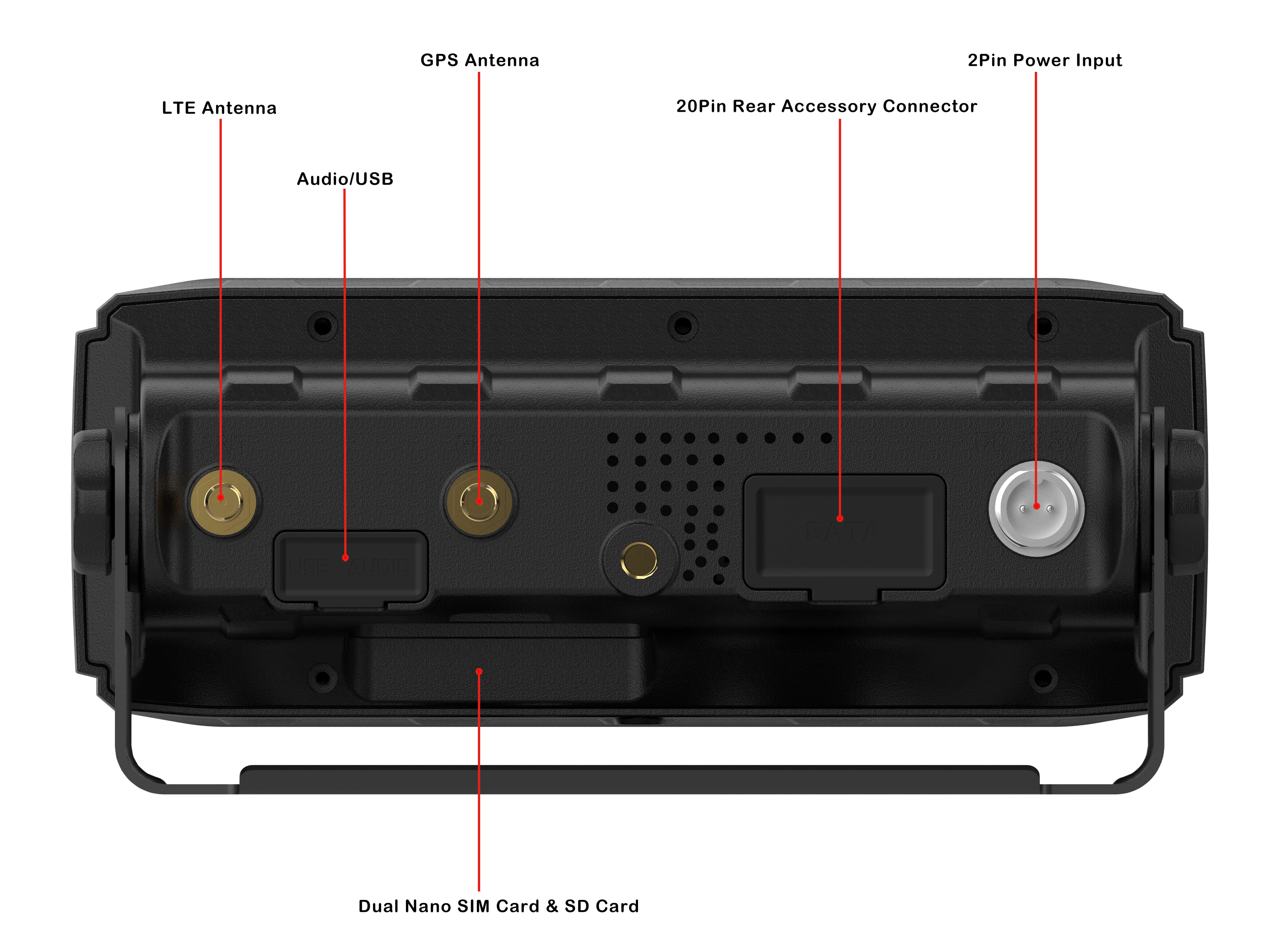

Accessory Expansion: The third party can develop accessory via front and rear port to control the radio. (Note that features as channel sterring, emergency footswitch have been supported via the rear port.)
Multiple Languages: M1Pro supports up to 30 languages including English, Simplified Chinese, Traditional Chinese German, Spanish, French, ltalian, Polish, Russian, Turkish, Portuguese, Korean, Greek, Farsi, Arabic, Thai，Japanese，Kazakh，Czech，Hebrew, Amharic, Urdu and Croatian and so on.
Diagram
System Parameter | |
Dimension(L* W * H) | 177*70*70mm |
Weight | 600g |
IP Grade | IP54 |
Work Temperature | -20 to +60℃ |
Store Temperature | -40 to +85℃ |
Main CPU & SW | |
CPU | MT6739V/WA |
Android | Android 7.1 |
SIM Card | Dual Nano-SIM Slots |
Memory | |
RAM+ROM | 1GB+8GB DDRS |
SD Card | Up to 128GB, SD Card Encryption |
LCD | |
LCD | 3.0 Inch TFT IPS |
LCD Resolution | 640*360 |
Touch Panel | |
Type | Capacitive |
LCD Touch | Gorillia III | Support wet hands and gloves |
Multi-Touch | Multi-Touch |
2G/3G/4G | |
GSM | B2 B3 B5 B8 |
WCDMA | B1 B2 B5 B8 |
FDD-LTE | B1 B3 B5 B7 B8 B20 B26 B28A/28B (EU Version) B1 B2 B4 B5 B7 B8 B12 B13 B17 B26 B28A/28B (US Version) |
TDD-LTE | B38 B40 B41 |
VoLTE | Yes |
Camera | |
Rear | Up to 3 * Cameras via rear port |
WiFi | |
WLAN | 2.4G & 5G Dual Band, IEEE802.11 a/b/g/n |
Wi-FI & BT Coexistence | Yes |
Antenna | Built-in FPC Antenna |
Bluetooth | |
Version | BT 2.1+EDR/4.1 LE |
Operation Distance | 10 Meter |
Position System | |
GPS | Yes |
AGPS | Yes |
BEIDOU | Yes |
GLONASS | Yes |
Antenna | External GPS Antenna |
Speaker & Microphone | |
Output | 5W@80hm |
Sound Pressure Level | 105dB |
Receiver | Yes |
Microphone | Dual Microphone |
Application
Unique for: Taxi/Bus, Transporting company, Logistics Popular for: Security Guard, Railway, Army, Government, Rescue, Police, Travelling, etc.
