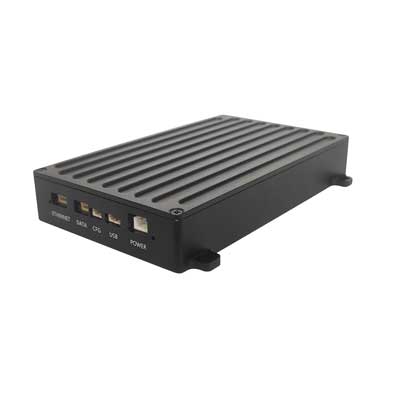

CD30NMT-V3 Drone Video Transmission Radio
Model: CD30NMT-V3
The CD30NMT-V3 sky-end device is matched with the ground-end device to realize long-distance two-way wireless video, audio, and data transmission. The maximum air-to-ground transmission distance can reach more than 50km. The communication method can meet point-to-point two-way communication, and can also realize point-to-multipoint star networking communication.
Product Details
Product Introduction
Product Features
1.4GHz / 2.4GHz / 800MHz Optional Frequency Range
Work at Point-to-Point or Point-to-Multi-Point Mode
1T2R MIMO Technology
AES128 Encryption Protection
FHSS Frequency Hopping (*)
Up to 20KM Air-to-Ground Video Transmission

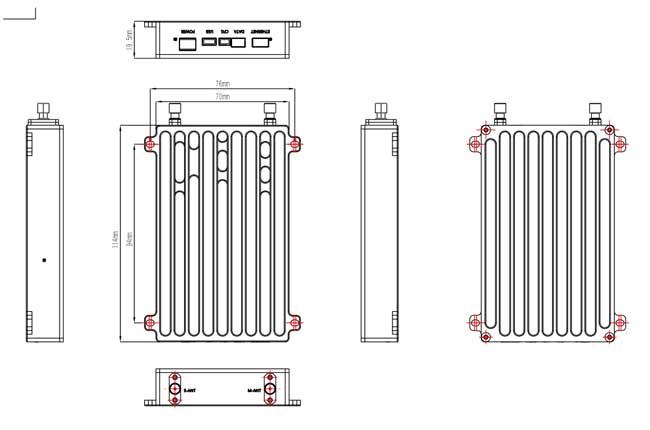

Diagram
| Wireless | |
| Technology | TDD-OFDM/MIMO/1T2R |
| Modulation | BPSK/QPSK/16QAM/64QAM |
| Data Rate | 24Mbps@10MHz(Peak) |
| Frequency Range | 1428~1448MHz(Standard) |
| 2401~2481(Optional) | |
| 806~826Mhz(Optional) | |
| Bandwidth | 5Mhz/10MHz/20MHz |
| TX Power | 2W |
| RX Sensitivity | -99dBm@5MHz |
| System | |
| Serial Port | 1 RS232 + 1 TTL |
| Ethernet Port | 1 Ethernet Port |
| Security | AES128 Encryption |
| Power | DC12V Power Supply ≤12W @ DC12V Power Consumption(Air) |
| Interface | |
| RF Antenna | SMA×2 |
| Serial Port Interface | JST×2 |
| Ethernet Interface | JST×1 |
| Config Interface | JST×1 |
| USB Interface | JST×1 |
| Power Input | JST×1 |
| Physical | |
| Dimension | 114x76x19.5mm(Air) |
| Weight | 180g(Air)+450g(Ground) |
