Suntor MM33D is a Serial Data Transmission Radio with excellent RF performance and very low delay. It supports Line-Of-Sight (LOS) and Non-Line-Of-Sight (NLOS) wireless data transmission up to 5 kilometers.it supports most wide frequency ranges from 136MHz ~ 174M, 220MHz ~ 240MHz to 410MHz ~ 470MHz and configure baud rate range and air data rate range from 1200bps to 115200bps. It can be used for sensor data transmission, telemetry data link, and industrial remote contro.

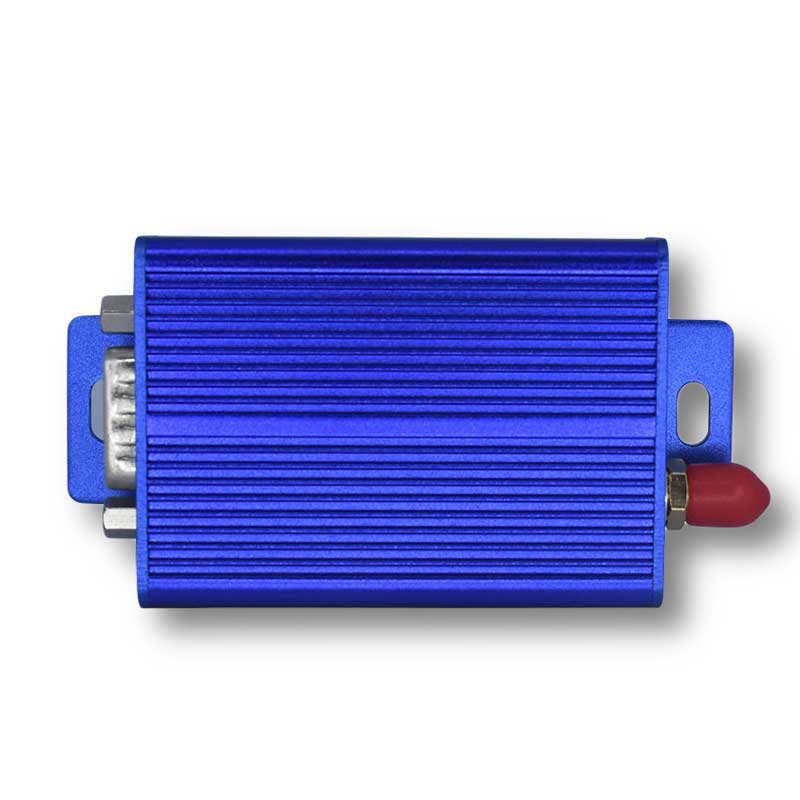

Product Introduction
MM33D is a Serial Data Transmission Radio with excellent RF performance and very low delay, it supports most wide frequency ranges from 136MHz ~ 174M, 220MHz ~ 240MHz to 410MHz ~ 470MHz and configure baud rate range and air data rate range from 1200bps to 115200bps.
The radio supports Line-Of-Sight (LOS) and Non-Line-Of-Sight (NLOS) wireless data transmission up to 5 kilometers.
The radio has RS232 and RS458 serial port in a one DB9 connector and supports to customize TTL serial port.
Applications
Sensor Data Transmission, e.g. Temperature, Humidity, Water Level, Chemical Gas Concentration;
Telemetry Data Link, e.g. Vessel Monitoring, Pipeline Monitoring, Heat Network Monitoring, Water Level Monitoring, Environmental Protection Monitoring;
Industrial Remote Control, e.g. Industrial Automation Process Control, Robot Control, Unmanned Vehicle Control

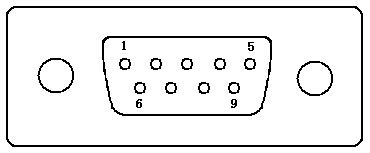

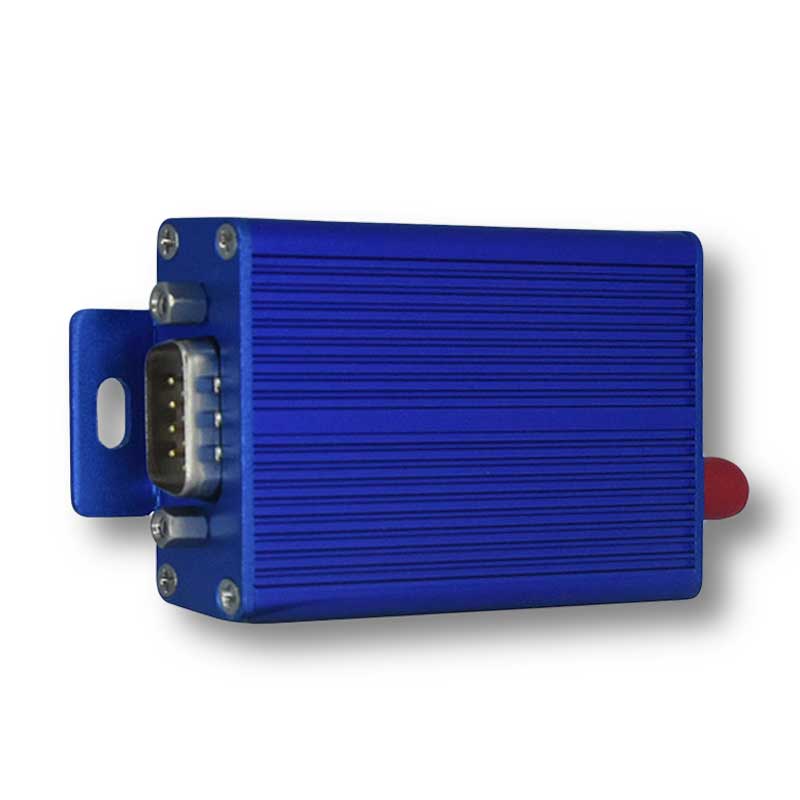

Interface Diagram
Type | Pin | Definition | Remark |
DB9 Male Connector | 1 | VCC | Power Supply DC5V |
2 | RS232-RXD | RS232 Data Receive | |
3 | RS232-TXD | RS232 Data Transmit | |
4 | GND | Power Ground | |
5 | AGND | Analogue Signal Ground | |
6 | RS485-A | RS485 Data A | |
7 | RS485-B | RS485 Data B | |
8 | SET_EN | Set Enable | |
9 | SQ | Receiving Signal Indicator |
Diagram

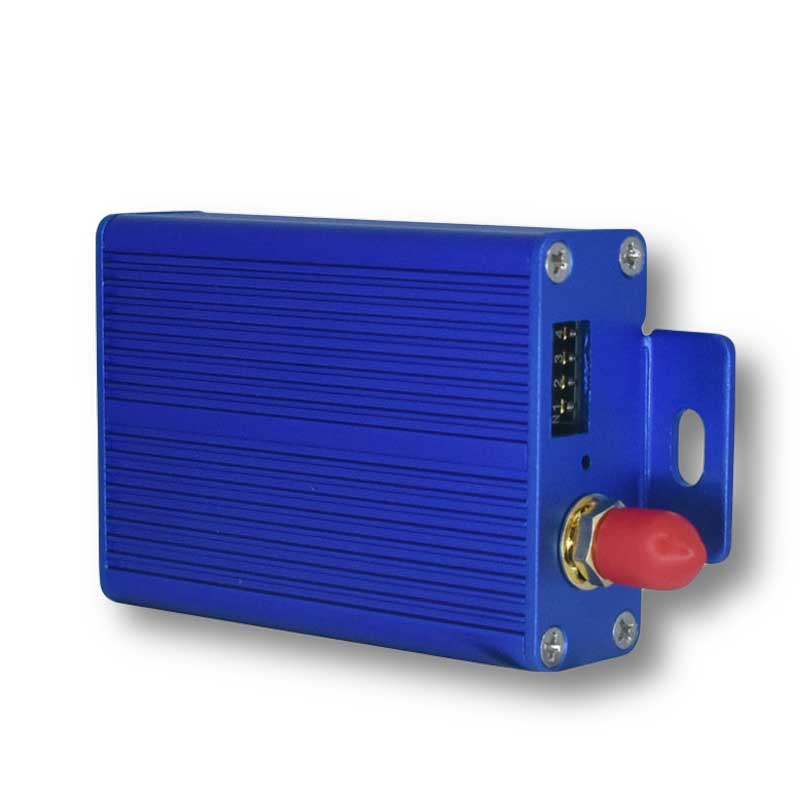

RF Parameters | |
Frequency Range | VHF1: 136 ~ 174MHz VHF2: 220 ~ 240MHz UHF1: 410 ~ 470MHz |
Frequency Stability | ±2.5ppm |
Channel Bandwidth | 10kHz @ 1200bps 25kHz @ 9600bps 200kHz @ 115200bps |
Modulation | GFSK / 4GFSK |
Transmitting Power | 33dBm |
Receiving Sensitivity | -123dBm @ 1200bps -120dBm @ 9600bps -106dBm @ 115200bps |
Data Transmission Parameters | |
Serial Port Baud Rate | 1200 ~ 115200bps |
Over-the-Air Data Rate | 1200 ~ 115200bps |
Data Format | 8N1 / 8E1 / 8O1 |
Latency | ≤ 3ms |
General Parameters | |
Power Supply | DC 5V, Max. Current ≥ 2A (Customized for 5V ~ 36V Wide Voltage Range) |
Transmitting Current | ≤ 1.5A |
Receiving Current | ≤ 80mA |
RF Interface | SMA * 1 |
Data Interface | DB9 Serial Port (RS-232 * 1 + RS-485 * 1, Customized for TTL) |
Operation Temperature | -40°C ~ +80°C |
Working Humidity | 10% ~ 90% Relative Humidity, No Condensation |

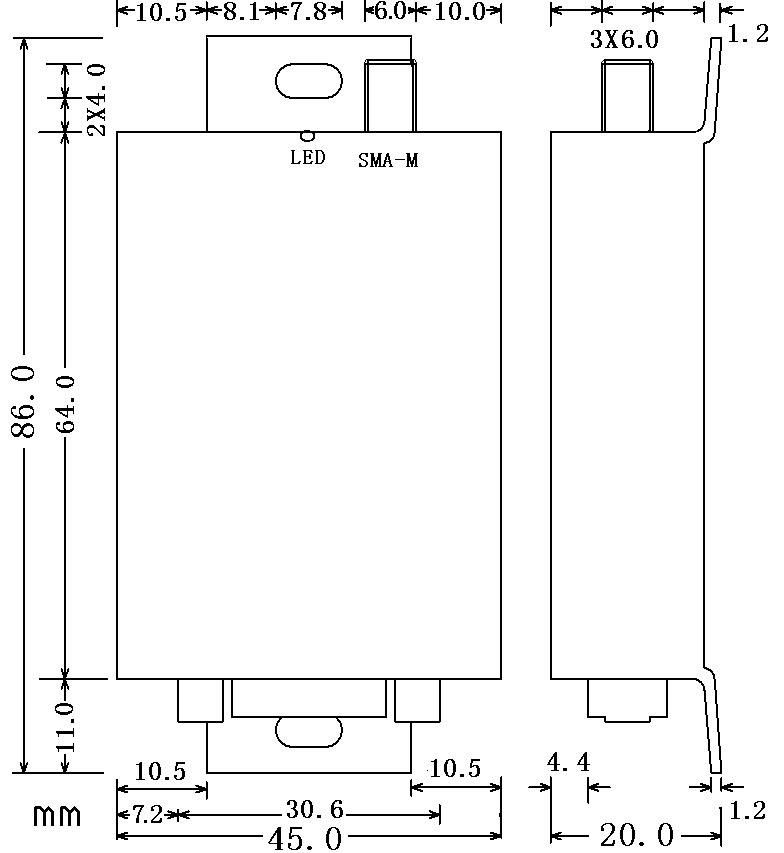

Dimension | 86 * 45 * 20mm (Without Cable & Antenna) |
Weight | ≤ 100g (Without Cable & Antenna) |
