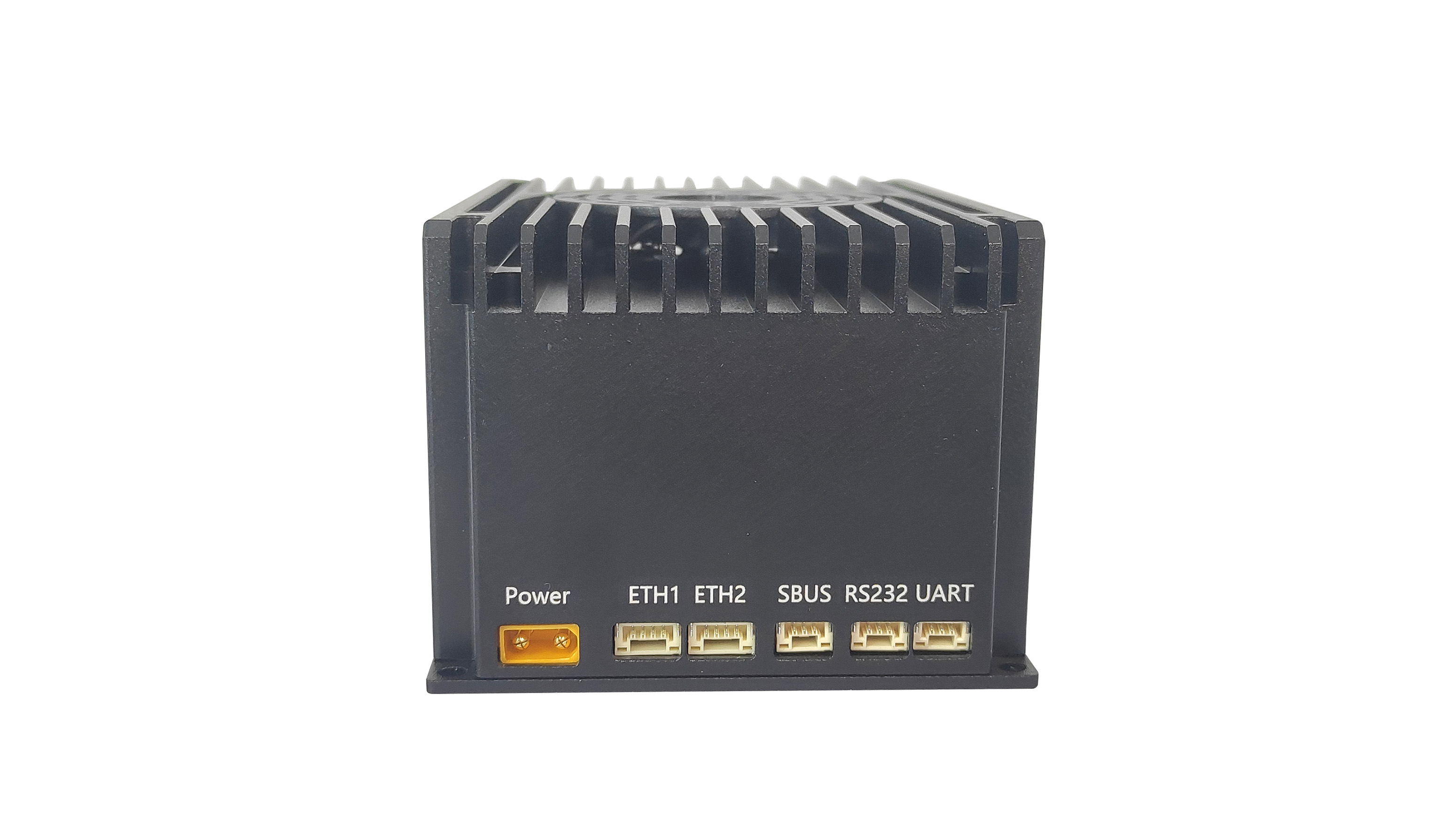

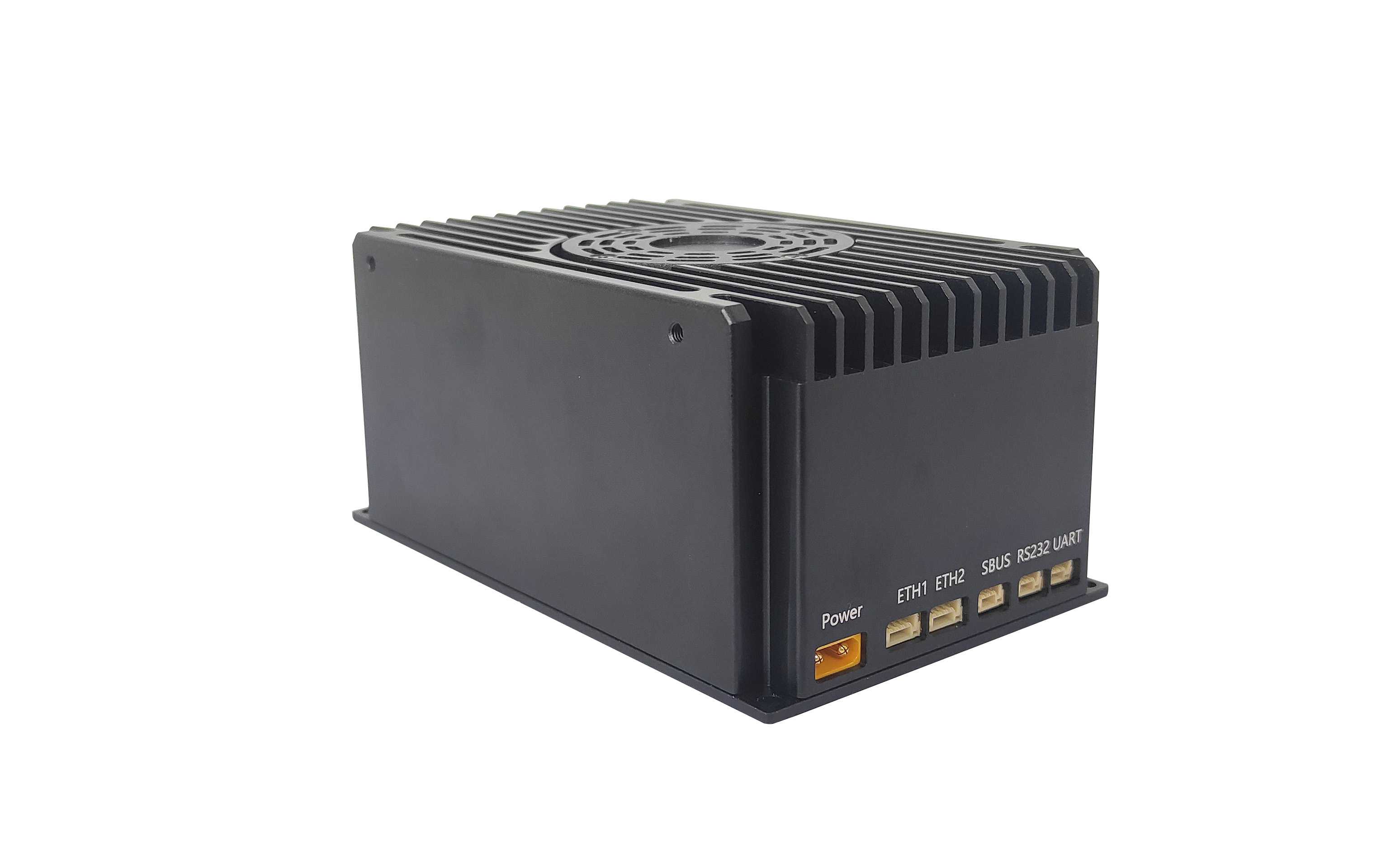

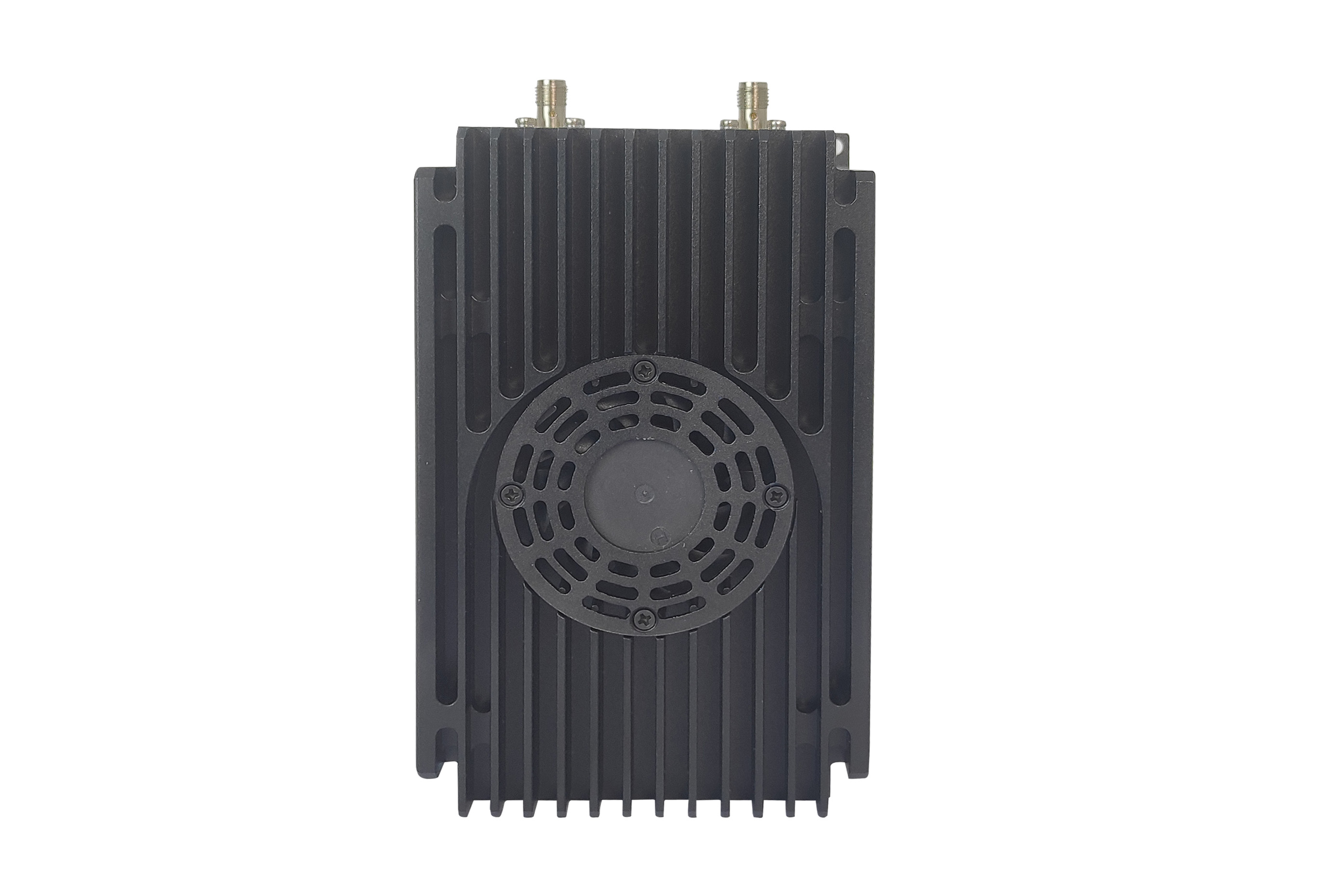

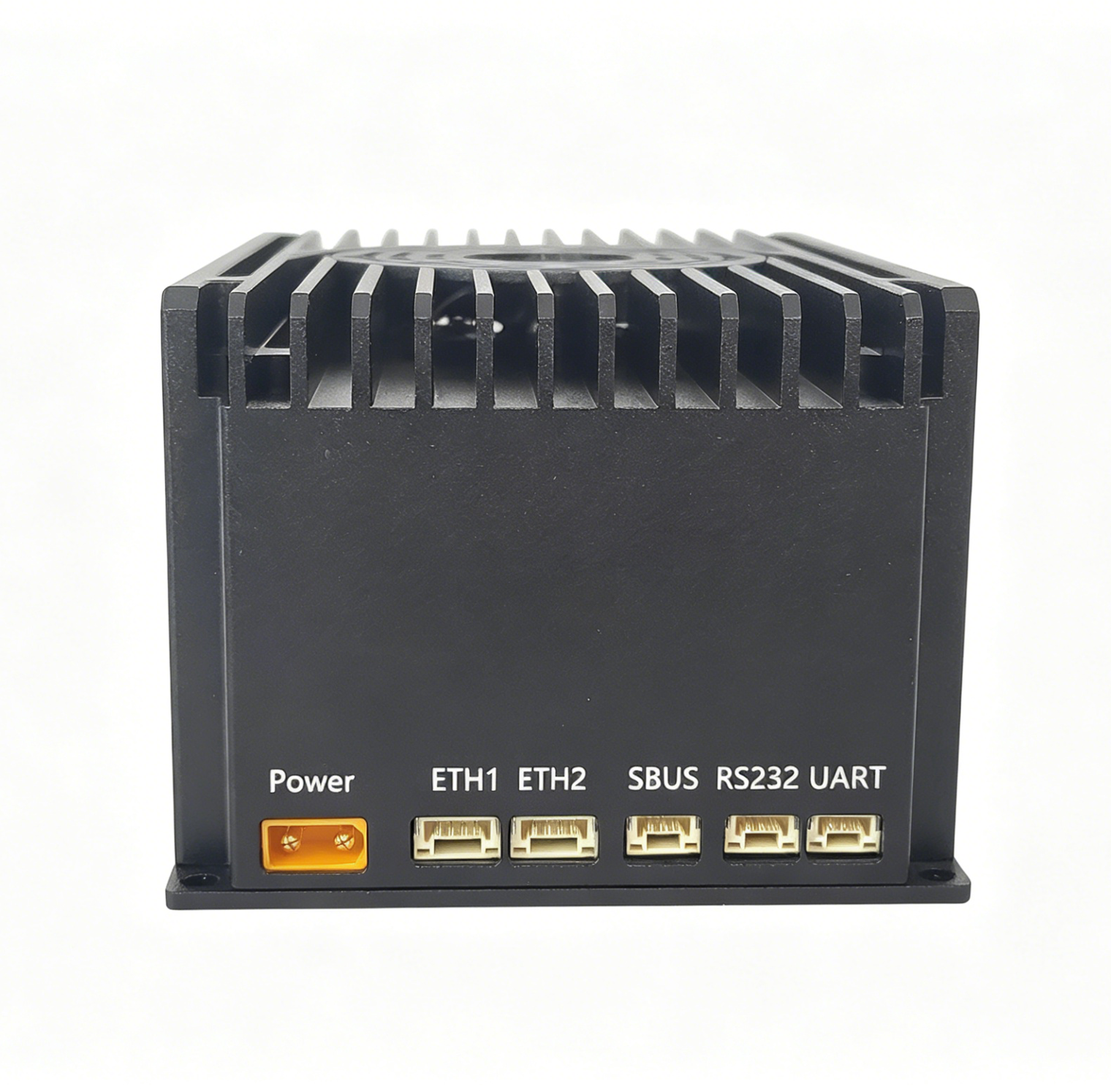

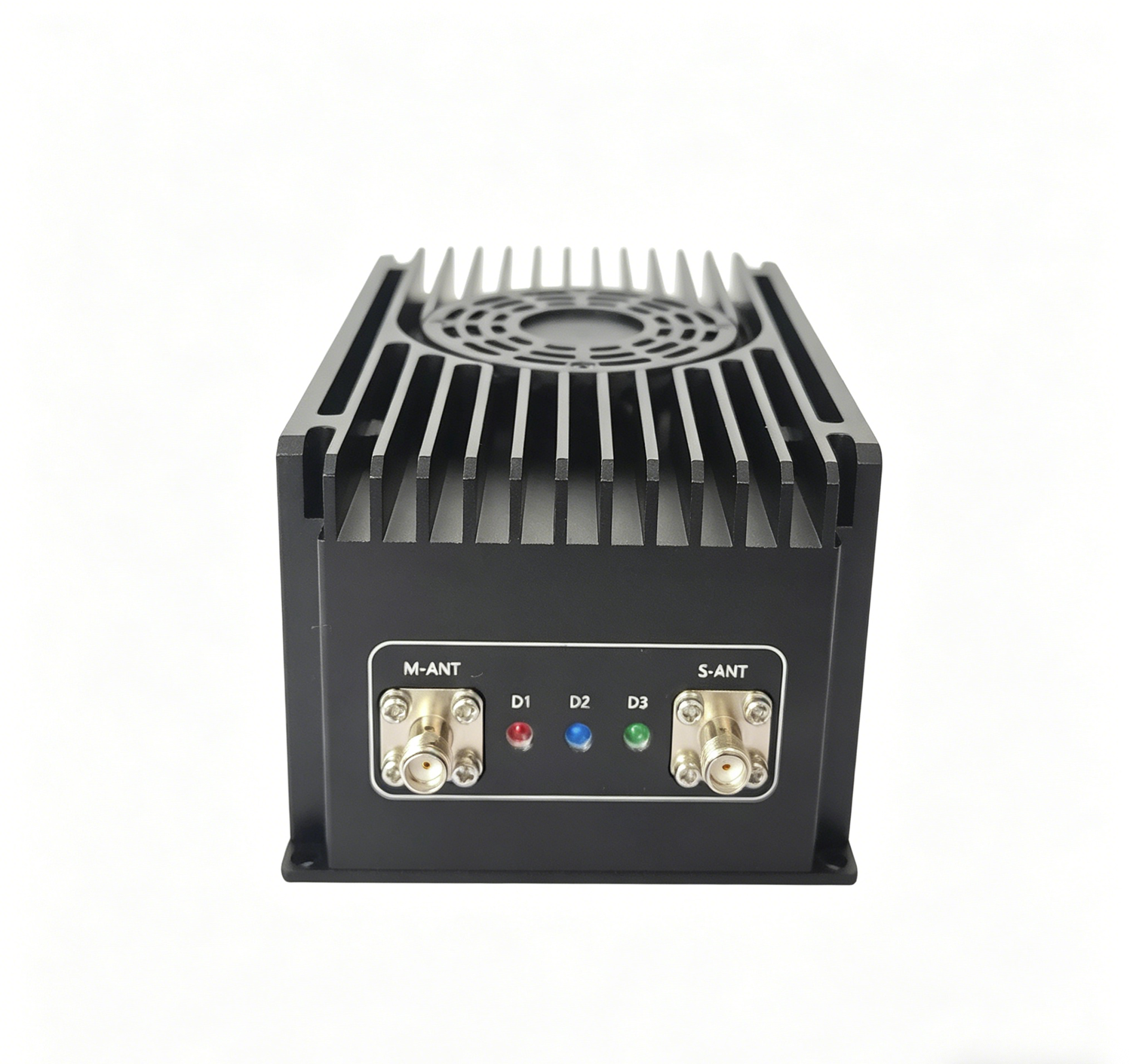

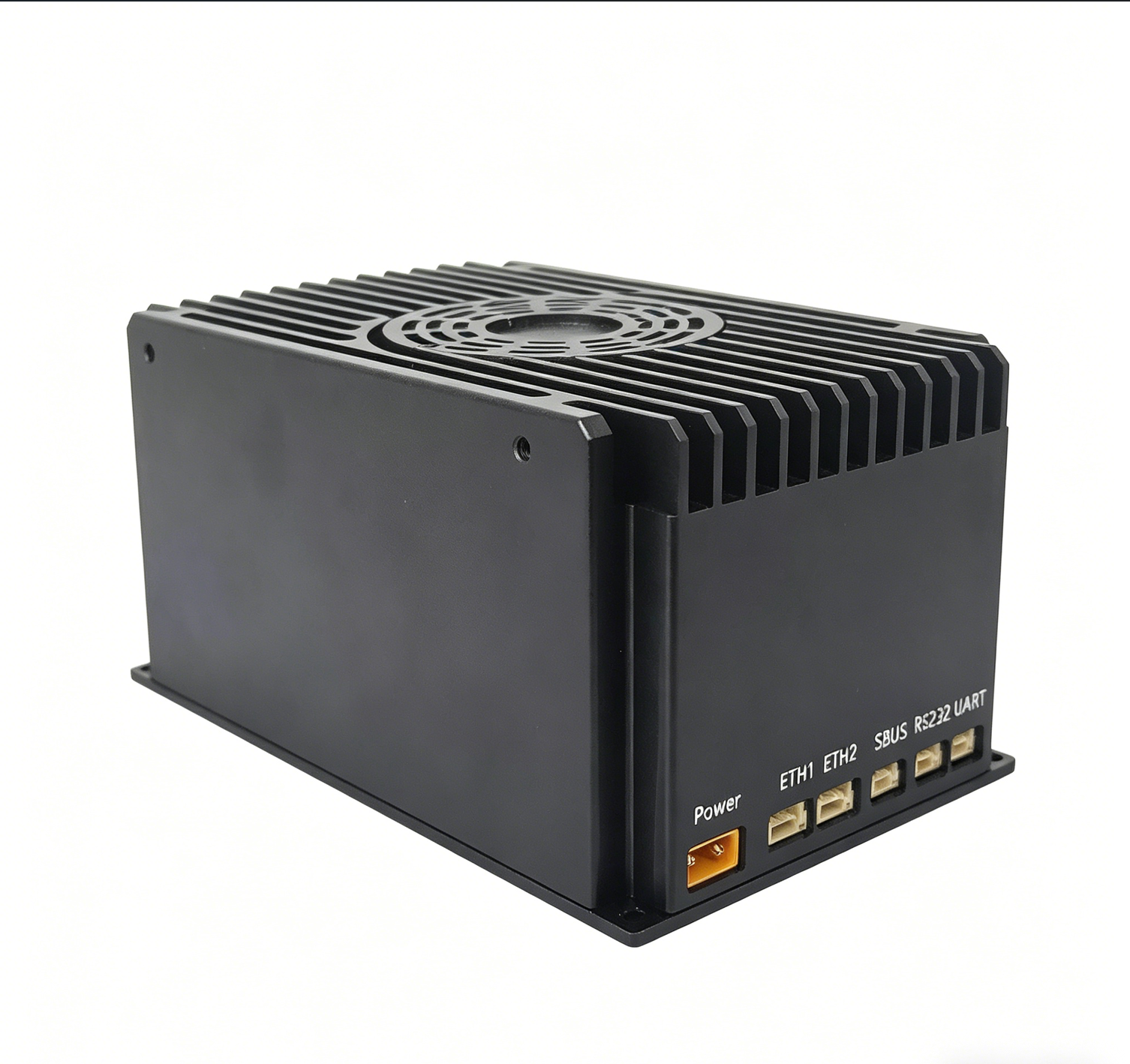

V150NMT is a high-performance drone video transmission radio by SUNTOR. It adopts dual‑antenna MIMO design, supports point‑to‑multipoint transmission, and delivers up to 24Mbps data rate with AES128 encryption. It offers 1.4G/2.4GHz optional frequencies, achieves 150KM air‑to‑ground transmission, and weighs only 550g for lightweight drone integration.
550 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
150KM Air-to-Ground Transmission Distance
SPECIFICATIONS | ||||
Wireless | System | |||
Technology | TDD-OFDM / MIMO / 1T2R | Serial Port | 1 TTL | |
Modulation | QPSK / 16QAM / 64QAM | Video Port | 1 ETH + 1 SDI/HDMI(Customized) | |
Data Rate | 24Mbps @ 10MHz (Peak) | Security | AES128 Encryption | |
Frequency Range | 1420～1530MHz (Standard) 2401～2481MHz (Optional) 806～826MHz (Optional) | Power | DC12V～27V Power Supply ≤ 30W @ DC12V Power Consumption (Air) | |
Bandwidth | 5MHz / 10MHz / 20MHz | |||
Tx Power | 40dBm ± 2 | Interfaces | ||
Rx Sensitivity | -99dBm @ 5MHz | RF Antenna | SMA × 2 | |
Serial Port Interface | JST × 1 | |||
Physical | S.BUS Interface | N/A | ||
Dimension | ≤ 122 × 76 × 49mm (Air) | Video Port Interface | JST(ETH) × 1 | |
Weight | ≤ 550g (Air) | Power Input | JST × 1 | |
ACCESSORIES | ||||
OMNI Antenna for Air Unit × 2 OMNI Antenna for Ground Unit × 1 Directional Antenna for Ground Unit × 1 ETH Cable × 2 Serial Cable × 2 JST Power Cable × 1 VTA-Manual (Manual Tracking Antenna System) × 1 | ||||
