Lightweight MESH radio with COFDM, MIMO, AES128 encryption, 24Mbps high rate, 50km air‑to‑ground range, and point‑to‑multi‑point for stable UAV HD transmission.
1. Product Overview

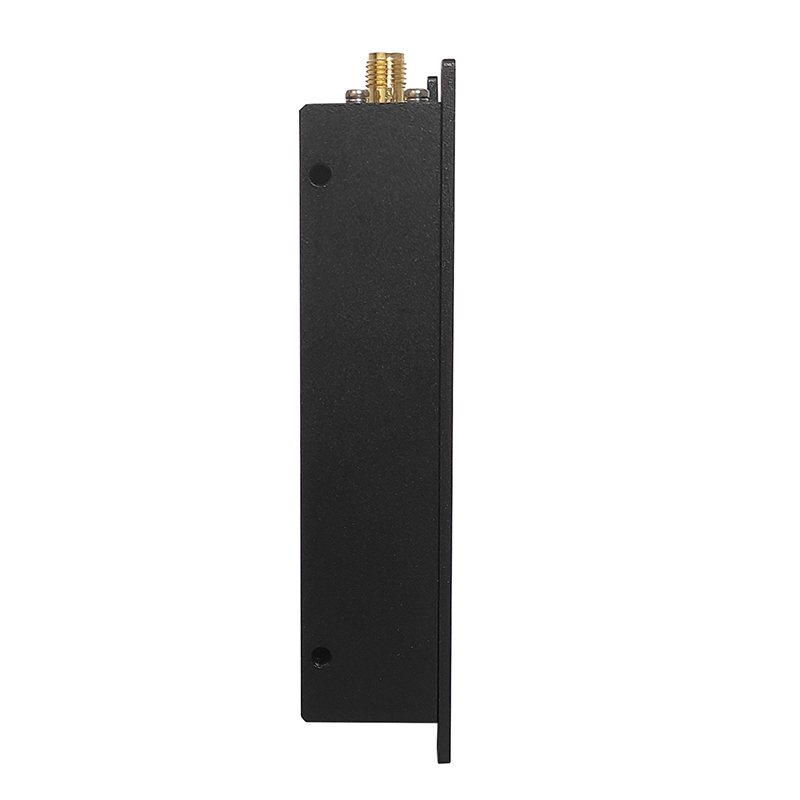

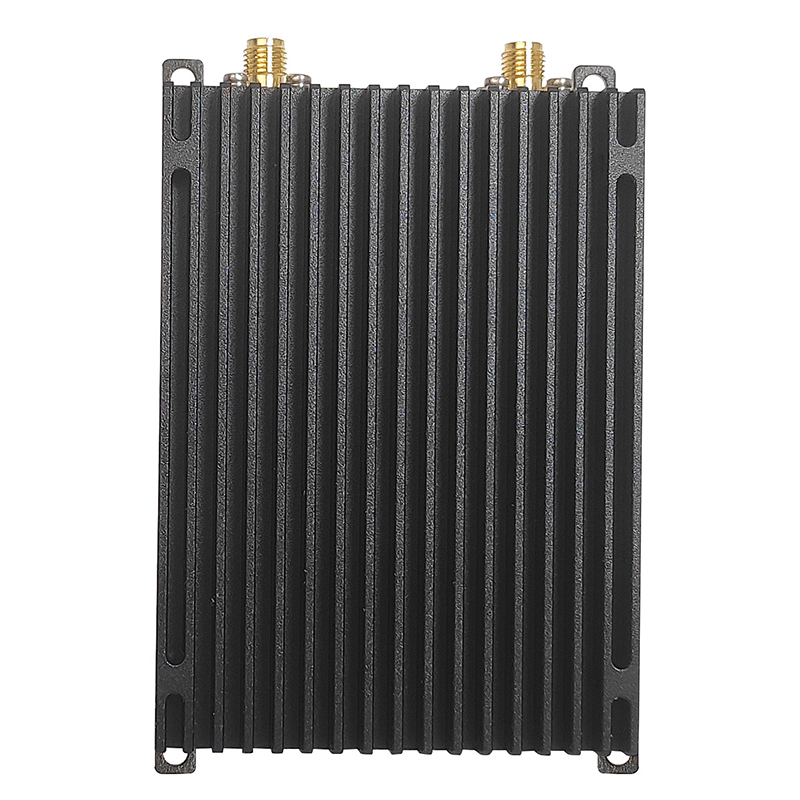

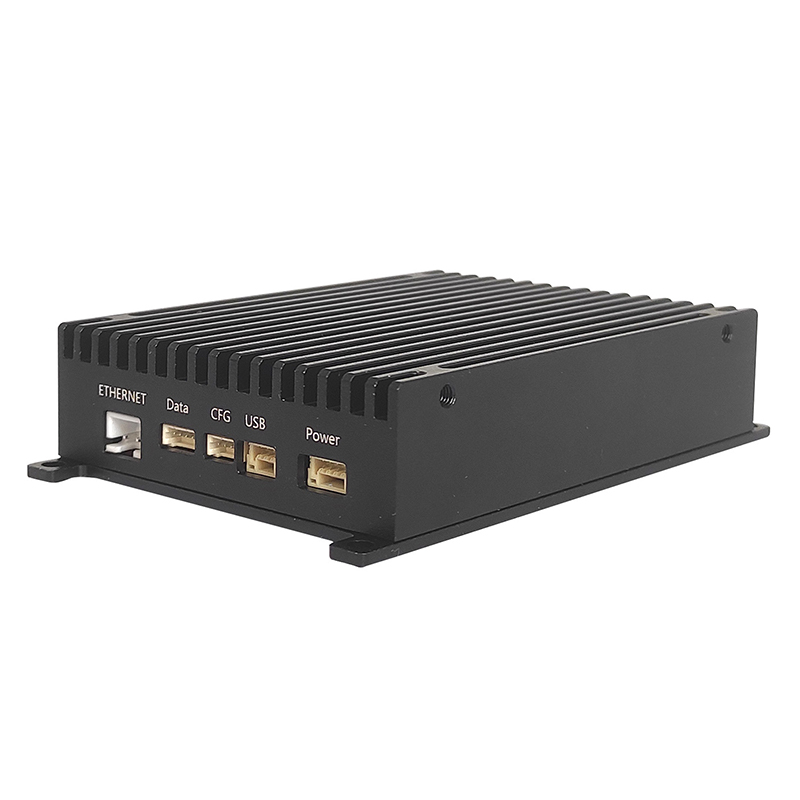

The CD30 COFDM HD UAV Video Transmitter is a lightweight (180g), long-range video and data link solution designed for UAVs, drones, and unmanned systems. Featuring dual-antenna MIMO, AES128 encryption, and up to 50KM air-to-ground transmission, it ensures reliable, high-quality video and secure data delivery in complex environments.
2. Key Features
COFDM & HD Transmission – Stable high-definition video stream in urban or long-range conditions
Dual Antenna MIMO – Enhanced link stability and anti-interference capability
Long-Range Performance – Up to 50KM air-to-ground data transmission
High Data Rate – 24Mbps @ 10MHz bandwidth for smooth real-time video
Secure Communication – AES128 encryption for sensitive mission data
Lightweight Design – 180g air unit for flexible UAV integration
Point-to-Multi-Point – Supports multiple ground stations and command centers
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Technology | TDD-OFDM / MIMO / 1T2R |
| Modulation | QPSK / 16QAM / 64QAM |
| Data Rate | 24Mbps @ 10MHz |
| Frequency Range | 1.4GHz / 2.4GHz / 800MHz (Optional) |
| Bandwidth | 5 / 10 / 20 MHz |
| Tx Power | 33dBm ± 2 |
| Rx Sensitivity | -99dBm @ 5MHz |
| Encryption | AES128 |
| Dimension (Air Unit) | ≤126 × 69 × 22mm |
| Weight | ≤180g |
4. Applications
Public Safety & Emergency Response
UAV Surveillance & Reconnaissance
Drone-based Mapping & Inspection
Broadcast and Live Event Coverage
Search & Rescue Operations
5. Package Contents
OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 2
ETH Cable × 1
Serial Cable × 1
JST Power Cable × 1
