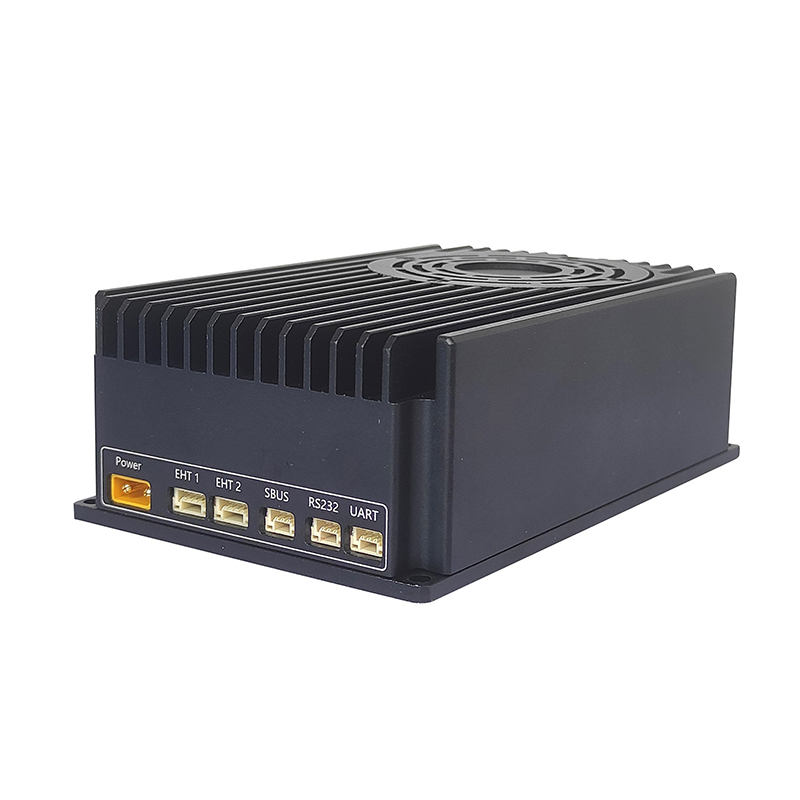

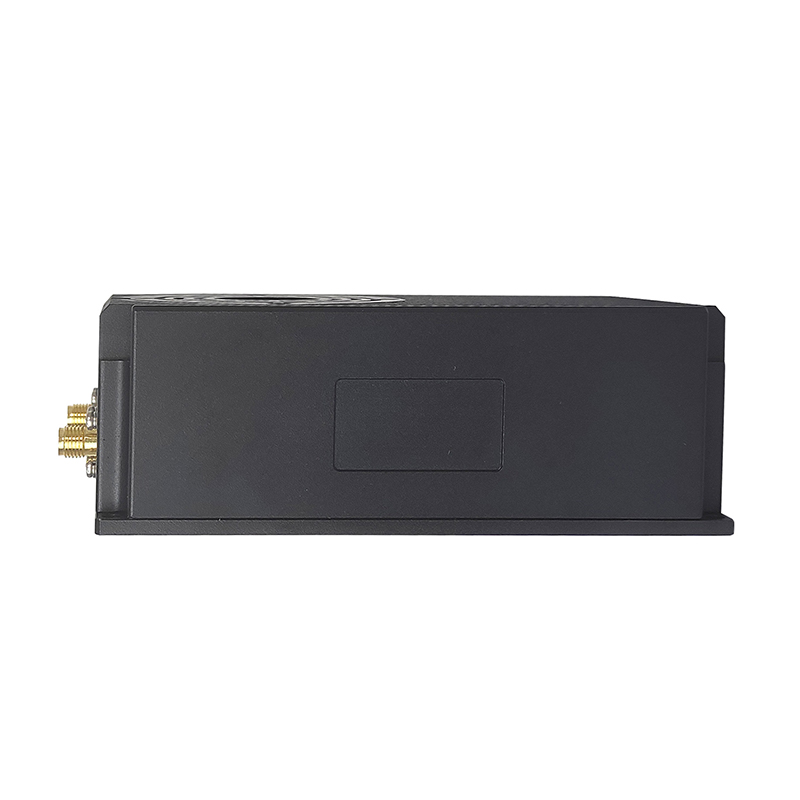

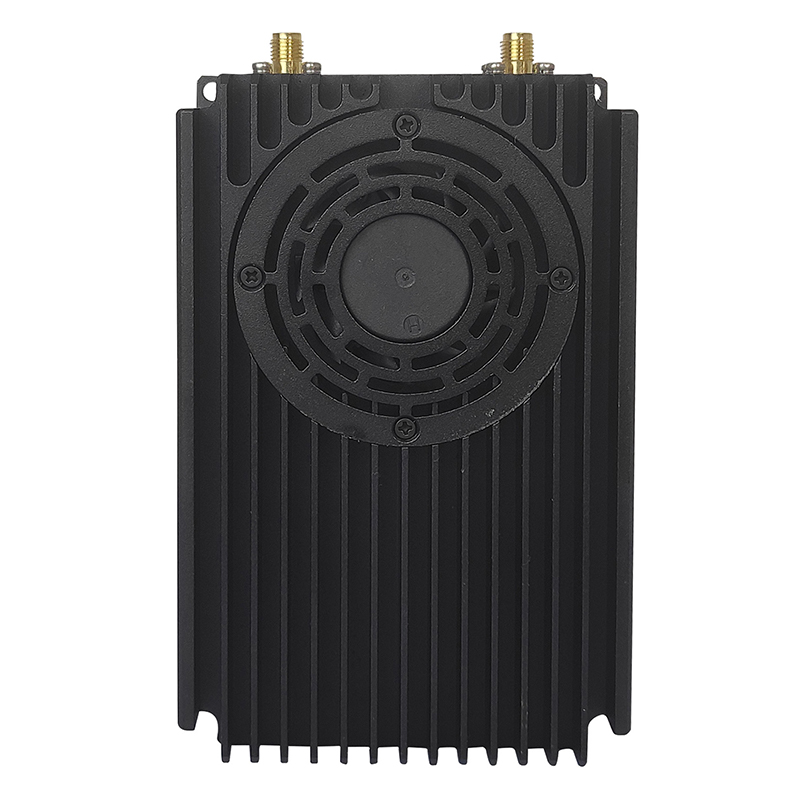

CD50Pro Drone Video Transmission Radio
Model: CD50Pro
V50Pro is a high-performance drone video transmission radio by SUNTOR. It adopts TDD‑OFDM & MIMO technology, supports 1.4G/2.4G/806M frequency bands, with peak data rate up to 24Mbps and 50KM air‑to‑ground transmission. It features point‑to‑multi‑point, AES128 encryption, 360g lightweight design, rich interfaces and complete accessories, ideal for long‑range drone data & HD video transmission.
Product Details
Specifications
Highlight:
COFDM wireless transmitter 24Mbps
,long range drone video transmitter
,MIMO data radio with TDD-OFDM
Frequency Range: | 1420～1530MHz (Standard) | Modulation: | QPSK / 16QAM / 64QAM |
Technology: | TDD-OFDM / MIMO / 1T2R | Data Rate: | 24Mbps @ 10MHz (Peak) |
Bandwidth: | 5MHz / 10MHz / 20MHz | Rx Sensitivity: | -99dBm @ 5MHz |
Security: | AES128 Encryption | Power: | DC12V～27V Power Supply ≤ 12W @ DC12V Power Consumption (Air) |
Weight: | ≤ 360g (Air) |
Description
CD50Pro Long Range Drone Video Data Radio 24Mbps TDD-OFDM MIMO Wireless Transmitter
CD50Pro Long Range Drone Video Data Radio
24Mbps TDD-OFDM MIMO Wireless Transmitter for professional unmanned systems
Product Overview
The CD50ProNMT drone video transmission radio is engineered for unmanned intelligent platforms including UAVs, USVs, UGVs, and robot swarm communication networking. This system integrates ultra-long-range wireless communication with multi-protocol interface adaptation, overcoming traditional transmission limitations.
Enables 20km+ air-to-ground full-duplex real-time video, audio, telemetry, and remote control data interaction. Supporting precise point-to-point control and distributed star-network communication in complex environments, it serves as a secure, globally controllable neural center for unmanned communication systems.
Technical Specifications
| Frequency Range | 1420～1530MHz (Standard) |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Modulation | QPSK / 16QAM / 64QAM |
| Transmission Distance | Up to 50km Air-to-Ground |
| Technology | TDD-OFDM, MIMO, 1T2R |
| Data Rate | 24Mbps @ 10MHz (Peak) |
| Rx Sensitivity | -99dBm @ 5MHz |
| Security | AES128 Encryption |
| Antenna | Dual SMA Antennas |
| Weight | 360g (Air Unit) |
| Power Supply | DC12V～27V Power Supply ≤ 12W @ DC12V Power Consumption (Air) |
Professional Applications
Aerial Filming & Photography - Smooth HD video feed for professional cinematography and live streaming
Public Safety & Search-and-Rescue - Reliable long-range communication in critical missions
Industrial Inspection - Real-time HD video for infrastructure, utility, and pipeline monitoring
Military & Tactical Operations - Encrypted, interference-resistant transmission for secure environments
Package Contents
OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 1
Directional Antenna for Ground Unit × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
VTA-Manual (Manual Tracking Antenna System) × 1
