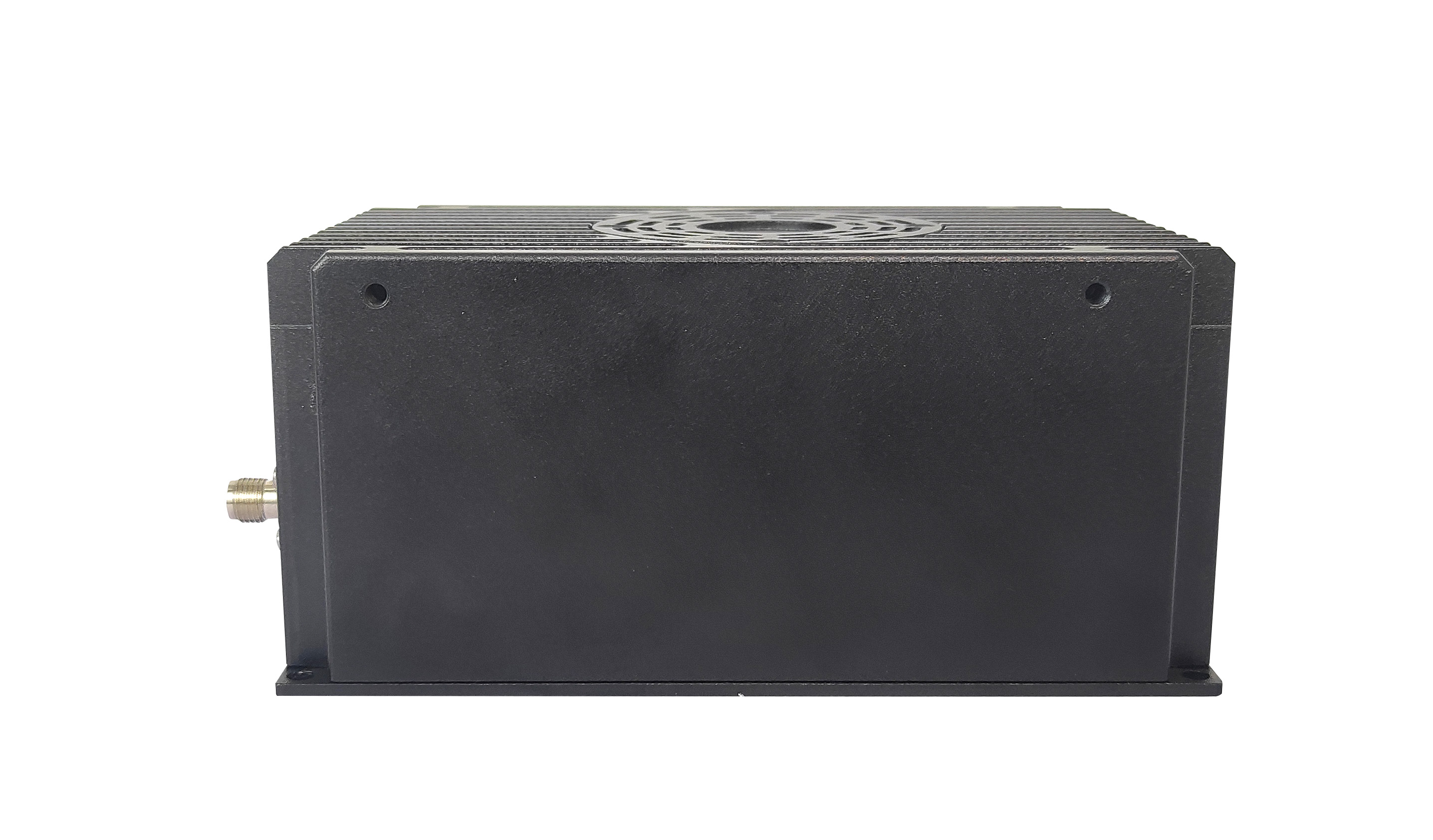

V150Pro is a professional long-range drone data link with TDD-OFDM & MIMO. It supports 150KM air-to-ground transmission, 24Mbps rate, point-to-multi-point, and AES128 encryption. Lightweight (550g), multi-band optional, and rich interfaces make it ideal for industrial UAV missions.
Description

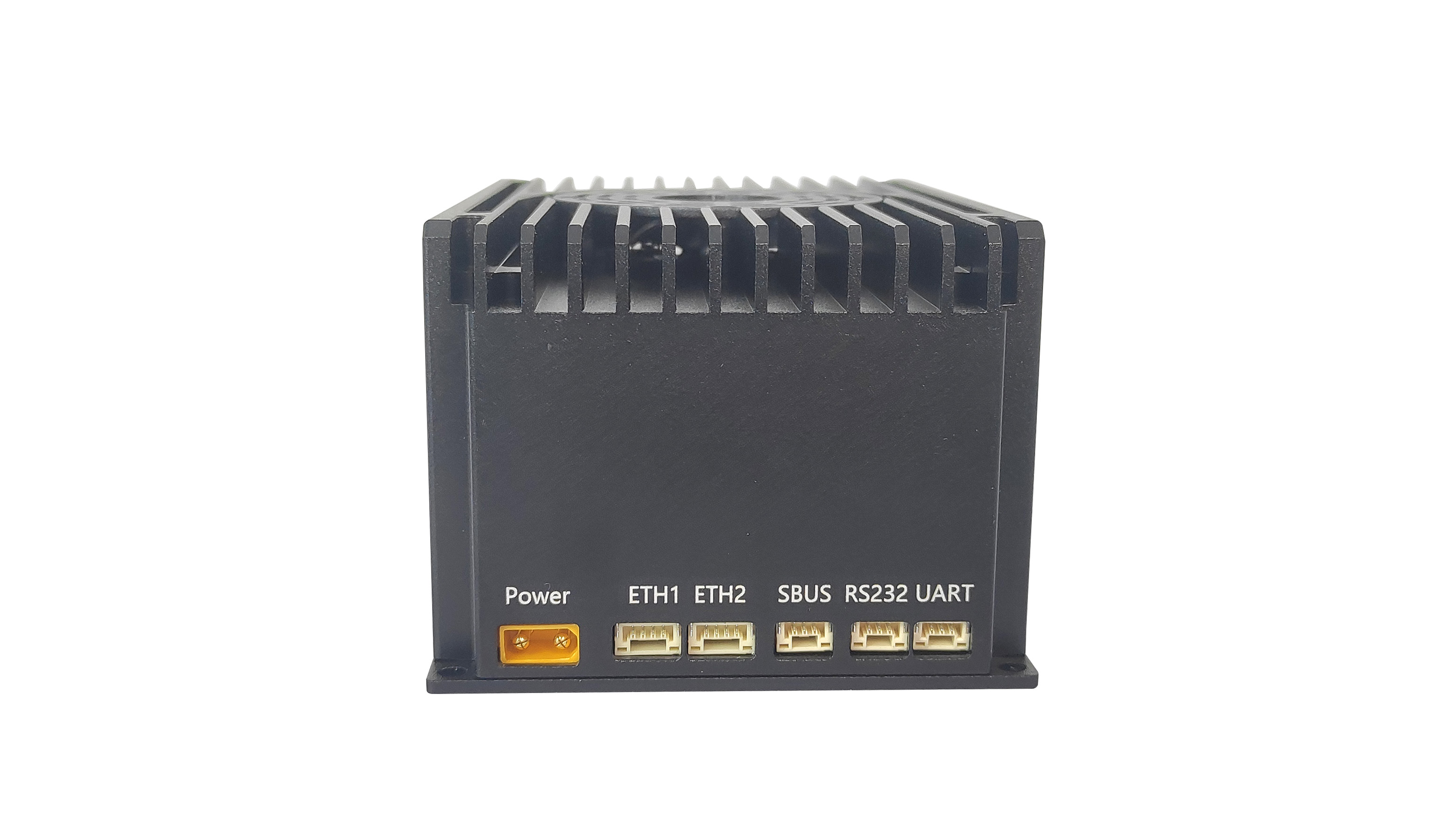

V150Pro supports transparent data transmission protocols and can transmit flight control, telemetry, and payload data simultaneously. The ground unit communicates with the ground control station via serial or Ethernet port (UDP/TCP). It supports transparent transmission for TTL, RS232, and S.BUS interfaces to ensure reliable drone control and data links.
Technical Specifications
| Frequency Range | 1420～1530MHz (Standard) |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Modulation | QPSK / 16QAM / 64QAM |
| Transmission Distance | Up to 150km Air-to-Ground |
| Technology | TDD-OFDM, MIMO, 1T2R |
| Data Rate | 24Mbps @ 10MHz (Peak) |
| Rx Sensitivity | -99dBm @ 5MHz |
| Security | AES128 Encryption |

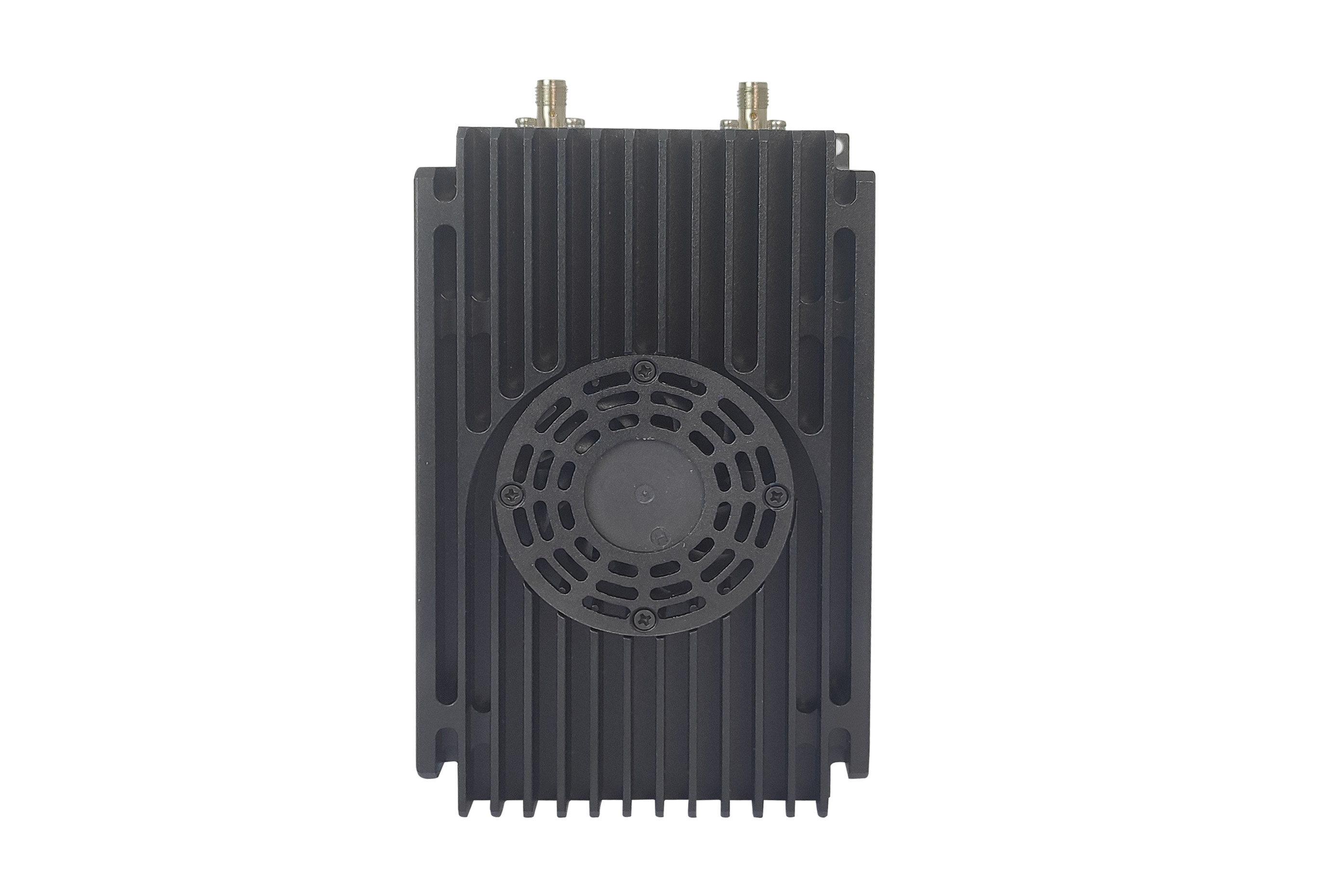

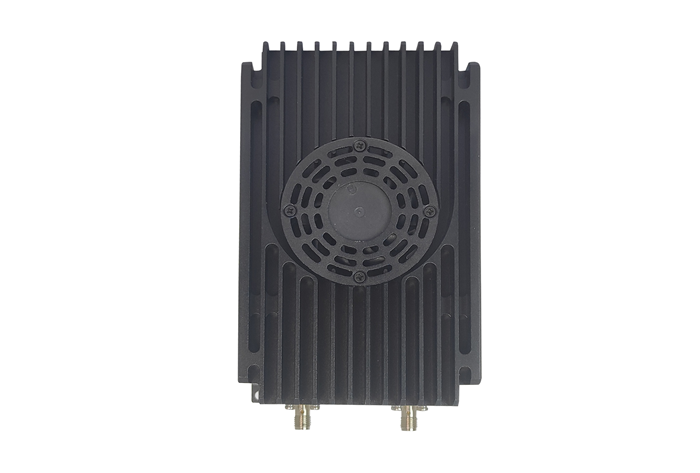

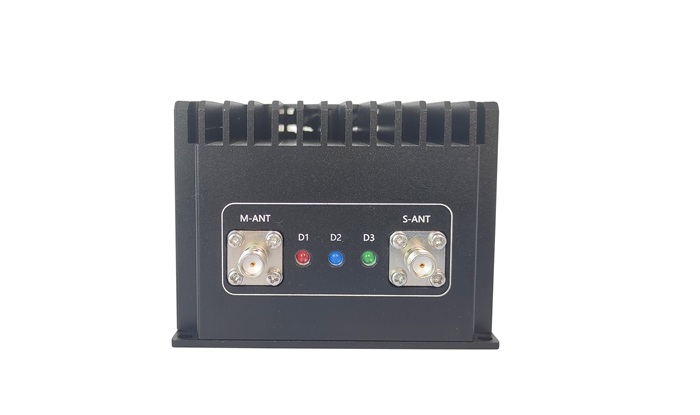

| Antenna | Dual SMA Antennas |
| Weight | 550g (Air Unit) |
| Power Supply | DC12V～27V Power Supply ≤ 30W @ DC12V Power Consumption (Air) |
Professional Applications
Aerial Filming & Photography - Smooth HD video feed for professional cinematography and live streaming
Public Safety & Search-and-Rescue - Reliable long-range communication in critical missions
Industrial Inspection - Real-time HD video for infrastructure, utility, and pipeline monitoring
Military & Tactical Operations - Encrypted, interference-resistant transmission for secure environments
Package Contents
OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 1
Directional Antenna for Ground Unit × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
VTA-Manual (Manual Tracking Antenna System) × 1
