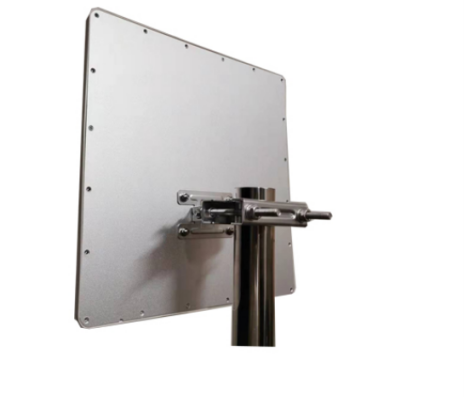

Panel Antenna
Model: TDJ-0911BKD12
TDJ-0911BKD12 panel antenna, 900–1100 MHz, 12 dBi gain, VSWR ≤2.0. For point-to-area, point-to-point & point-to-multipoint. 50 Ω, vertical polarization, 38×38×4.5 cm, 1.8 kg, fits 40–50 mm pole, N-female or custom connector.
Product Details
Applications:
l 900~1100MHz frequency range
l Point-to-area coverage
l Point-to-point and point-to-multipoint systems
Features:
l High gain, low VSWR
l Sleek antenna appearance
l Excellent environmental adaptability
Technical Specification
Model | TDJ-0911BKD12 |
Frequency range (MHz) | 900～1100 |
Bandwidth (MHz) | 200 |
Gain (dBi) | 12 |
Horizontal beamwidth (°) | 45~50 |
Vertical beamwidth (°) | 40~44 |
VSWR | ≤2.0 |
Input impedance (Ω) | 50 |
Polarization | vertical |
Max power (W) | 100 |
Connector type | N female or customization |
Dimensions (cm) | 38×38×4.5 |
Weight (kg) | 1.8 |
Pole diameter (mm) | φ40~ φ50 |
