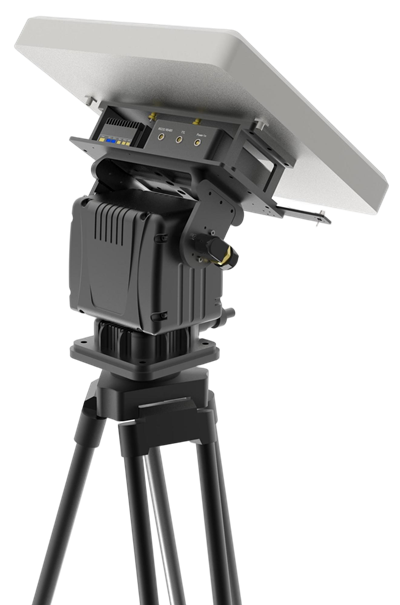

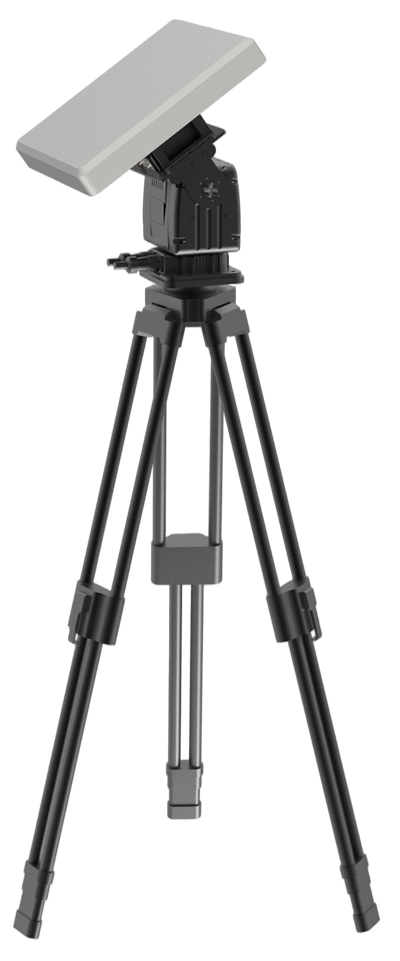

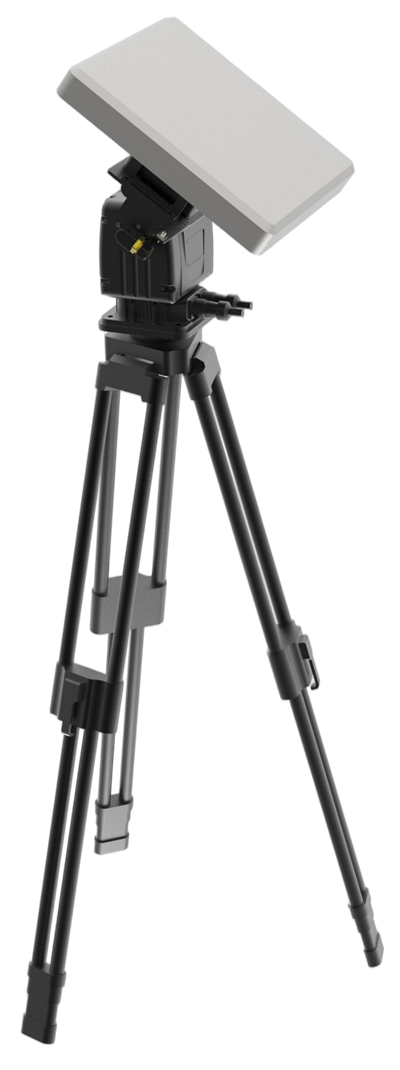

Long‑range tracking system with 15dBi directional antenna, GPS/Beidou, 360° pan/tilt, IP65, boosts link distance & rate for drones.
Product Introduction
This auto tracking antenna system operates at 1300–1500MHz with 15dBi gain and 360° continuous rotation. It supports GPS/Beidou positioning, high-speed PTZ control, and IP65 protection. Designed for quick deployment, it extends transmission distance and improves data rate, ideal for mobile communication and drone data link applications
Feature
Quick Deployment Solution
Directional Antenna
High Speed Automatic PTZ
360° Horizontal Continuous Rotation IncreaseSp
Transmission Distance
Improve Transmission Data Rat
3.Specification
| Directional Antenna | Professional Automatic PTZ | ||
| Frequency Range | 1300～1500MHz | Pan Range | 360° |
| Gain | 15dBi | Tilt Range | 0°～+90°(-90°～+90°Cus.) |
| SWR | ≤ 2.0 | Pan Speed | 0.1°～30° / s |
| Polarization | Vertical | Tilt Speed | 0.1°～8° / s |
| Directional | Vertical 31° | Protocol | Pelco-D |
| Impedance | 50Ohm | Baud Rate | 2400 / 4800 / 9600 / 19200bps |
| Connector | SMA | Communication | RS485 |
| Dimension | 380 × 380 × 57mm | Load Bearing | 10000g |
| Material | ABS | Power Supply | DC28V (DC24V～36V) |
| Weight | 1580g | Weight | 6500g |
| Tracking Position | Physical | ||
| Mode | GPS / Beidou | Operating Temperature | -20°C～+75°C |
| Accuracy | ≤ 1m | Protection Level | IP65 (Customized) |
| Antenna | 33±2dB | ||
4. Accessories
Directional Antenna × 1
RF Feeder Cable × 2
Professional Automatic PTZ × 1
Quick Release Plate × 1
Installation Bracket × 1
Position Antenna × 1
Tripod × 1 (Optional)
