MD30Pro Drone Mesh Radio delivers secure long-range UAV communication with COFDM transmission, AES128/256 encryption, FHSS anti-interference technology, and up to 25Mbps data rate. Designed for drone video transmission, emergency response, and tactical IP mesh networking applications.

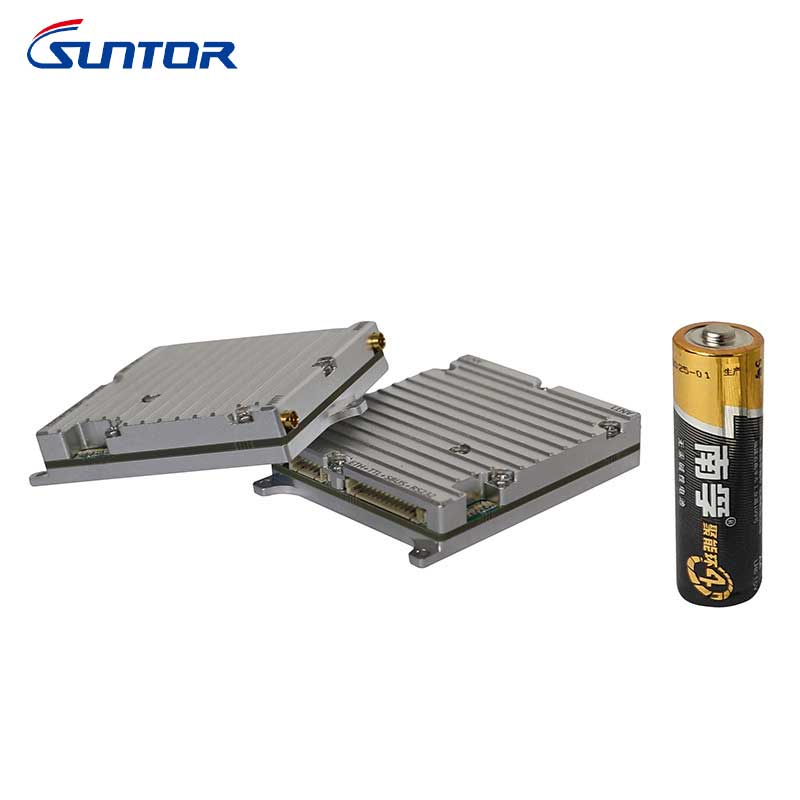

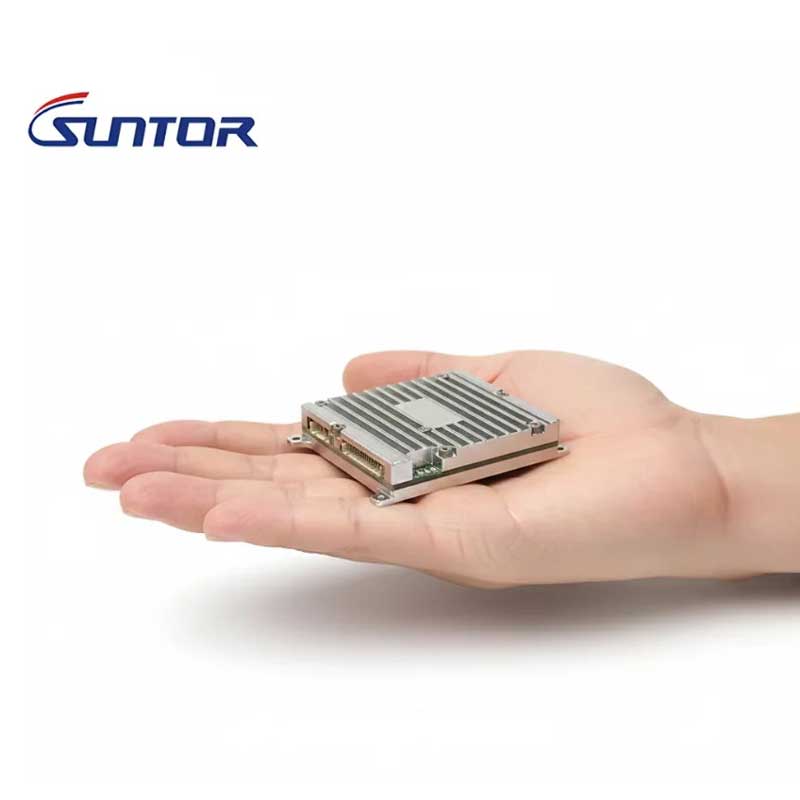

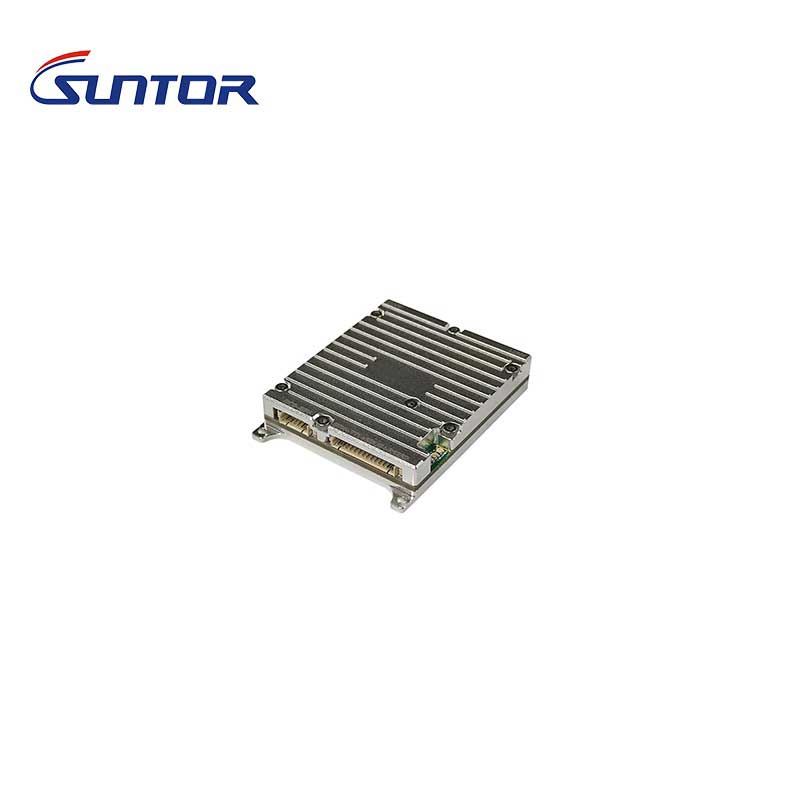

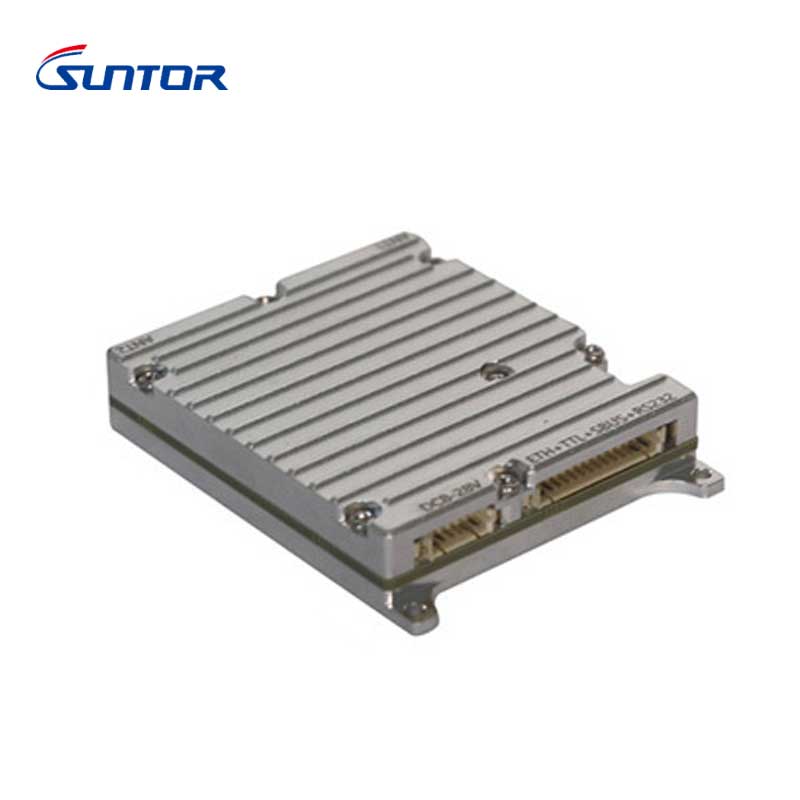

MD30Pro Drone Mesh Radio
Long Range IP Mesh Radio for UAV Video & Data Transmission
The MD30Pro Drone Mesh Radio is a compact and lightweight IP Mesh communication system designed for UAV, drone video transmission, emergency response, tactical communication, and industrial wireless networking applications. Featuring advanced COFDM transmission technology, FHSS frequency hopping, and AES128/256 encryption, the MD30Pro delivers secure, stable, and long-range broadband wireless connectivity in complex environments.
With support for multi-node mesh networking, up to 25Mbps data rate, and a transmission distance of up to 30KM air-to-ground, the MD30Pro enables reliable real-time video, voice, and IP data communication for mission-critical operations.
Key Features
Compact and lightweight design for UAV integration
Advanced COFDM wireless transmission technology
Supports IP Mesh Ad-Hoc networking
Up to 30KM air-to-ground transmission distance
Up to 25Mbps high-speed data throughput
AES128/256 encryption for secure communication
IFS / FHSS frequency hopping anti-interference technology
Supports multi-hop mesh networking architecture
Fast startup and network access within 5 seconds
Wide voltage power supply DC8V–28V
Applications
The MD30Pro IP Mesh Radio is widely used in:
Drone video transmission systems
UAV wireless communication networks
Emergency rescue operations
Public safety and law enforcement
Military and tactical communication
Firefighting command systems
Border surveillance and security monitoring
Industrial inspection and remote monitoring
Technical Specifications
| Model | MD30Pro |
|---|---|
| Frequency Range | 1350–1450MHz (Customizable) |
| Transmission Technology | COFDM |
| Data Rate | Up to 25Mbps |
| RF Power | 0.5W × 2 |
| Encryption | AES128 / AES256 |
| Networking Capability | 2 / 4 / 8 / 16 / 32 Nodes |
| Transmission Distance | Up to 30KM Air-to-Ground |
| Power Supply | DC8V–28V |
| Dimensions | ≤ 66 × 48 × 11.5mm |
| Weight | ≤ 50g |
Why Choose MD30Pro Drone Mesh Radio?
Designed for professional UAV communication applications, the MD30Pro combines long-range wireless transmission, high-speed IP networking, and robust anti-interference capability in an ultra-compact form factor. Whether deployed in emergency rescue, tactical missions, or industrial drone operations, the MD30Pro provides reliable and secure wireless connectivity for demanding environments.
