MV40/43Pro is a vehicle-mounted IP mesh radio designed for mobile communication networks. It supports 10/20W RF power, up to 52Mbps data rate, 64+ mesh nodes and IFS/FHSS frequency hopping for multi-node wireless communication.

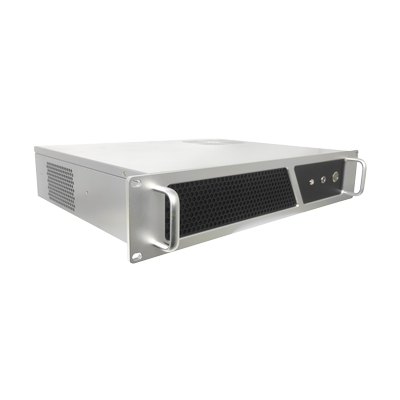

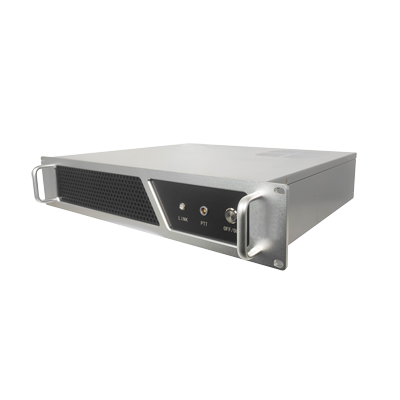

MV40/43Pro Vehicle Mesh Radio
10/20W COFDM IP Mesh Radio for Mobile Networks
MV40/43Pro is a high-power vehicle-mounted IP mesh radio built in a 2U standard rack structure. It integrates RF communication, mesh networking and multiple system interfaces into one platform for mobile communication applications.
The radio uses COFDM transmission, adaptive modulation and IFS/FHSS frequency hopping to establish multi-node wireless links. With 64+ nodes and more than 10 hops, multiple radios can form a distributed IP mesh network.
The platform is designed for mobile command, emergency communication, public safety, field operations and other vehicle-based applications where flexible wireless networking is required.
Key Technical Highlights
01 — COFDM Transmission
COFDM-based wireless transmission with adaptive BPSK, QPSK, 16QAM and 64QAM modulation for flexible data communication across changing RF conditions.
02 — 10/20W RF Power
High-power RF configurations provide increased transmission capability for vehicle-mounted mesh networks and field communication deployments.
03 — IFS / FHSS
IFS/FHSS frequency hopping helps improve communication robustness when operating in environments with changing RF interference.
04 — 64+ Mesh Nodes
Supports 64 or more IP mesh nodes and over 10 networking hops for distributed multi-node wireless communication.
05 — Up to 52Mbps
Supports 5/10/20MHz bandwidth configurations, with a peak data rate of 52Mbps at 20MHz.
06 — AES128/256 Security
AES128/256 encryption provides security protection for IP-based wireless data transmission.
Technical Highlights
Wireless System
| Parameter | Specification |
|---|---|
| Frequency Range | 1300–1500MHz, Customized |
| Bandwidth | 5 / 10 / 20MHz |
| Transmission | COFDM |
| Modulation | BPSK / QPSK / 16QAM / 64QAM |
| Data Rate | 52Mbps @ 20MHz, Peak |
| RF Power | 5W × 2 / 10W × 2 Optional |
| Receiver Sensitivity | ≤ -100dBm @ 5MHz |
| Frequency Hopping | IFS / FHSS |
| Encryption | AES128 / AES256 |
Networking
| Parameter | Specification |
|---|---|
| Networking Nodes | ≥64 |
| Networking Hops | >10 |
| Topology | Ad-Hoc / Star / Chain |
| Access Time | 5s |

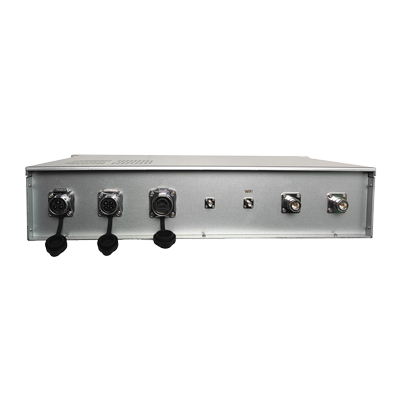

Interfaces
| Parameter | Specification |
|---|---|
| RF Antenna | N Type × 2 |
| Ethernet | Aviation to RJ45 |
| Audio | Aviation Connector |
| Serial Port | Aviation Connector |
| GPS | Optional |
| Wi-Fi Antenna | SMA |
Power & Physical
| Parameter | Specification |
|---|---|
| Power Supply | AC220V |
| Typical Power | ≤90W |
| Peak Power | ≤140W |
| Dimensions | ≤485 × 385 × 92mm |
| Weight | ≤7.9kg |
| Protection | IP54 |
| Temperature | -40°C to +65°C |
| Structure | 2U Standard Rack |
Typical Applications
FAQ
Q1. What is MV40/43Pro?
MV40/43Pro is a high-power vehicle-mounted IP mesh radio supporting 10W/20W RF power, 64+ mesh nodes and up to 52Mbps peak data rate.
Q2. What frequency does it support?
The standard specification supports a customizable 1300–1500MHz frequency range.
Q3. How many mesh nodes can it support?
The system supports ≥64 networking nodes and >10 networking hops.
Q4. What modulation does it use?
It supports BPSK, QPSK, 16QAM and 64QAM with self-adaptive modulation.
Q5. Does it support frequency hopping?
Yes. MV40/43Pro supports IFS/FHSS frequency hopping for improved communication robustness in changing RF environments.
Q6. Can it be customized?
Yes. Frequency configuration, RF power, interfaces, mechanical integration and other project-specific requirements can be evaluated for OEM/ODM projects.
